RightAngle HSAP Manual

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 7/27/11
READ ALL THE INSTRUCTIONS BEFORE BEGINNING
3
4
INSTRUCTION # 50581
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL
#2 PHILLIPS DRIVER BIT
11/32" WRENCH OR SOCKET
2
STEP 2
1
HARDWARE PACK # 50520 & 50525

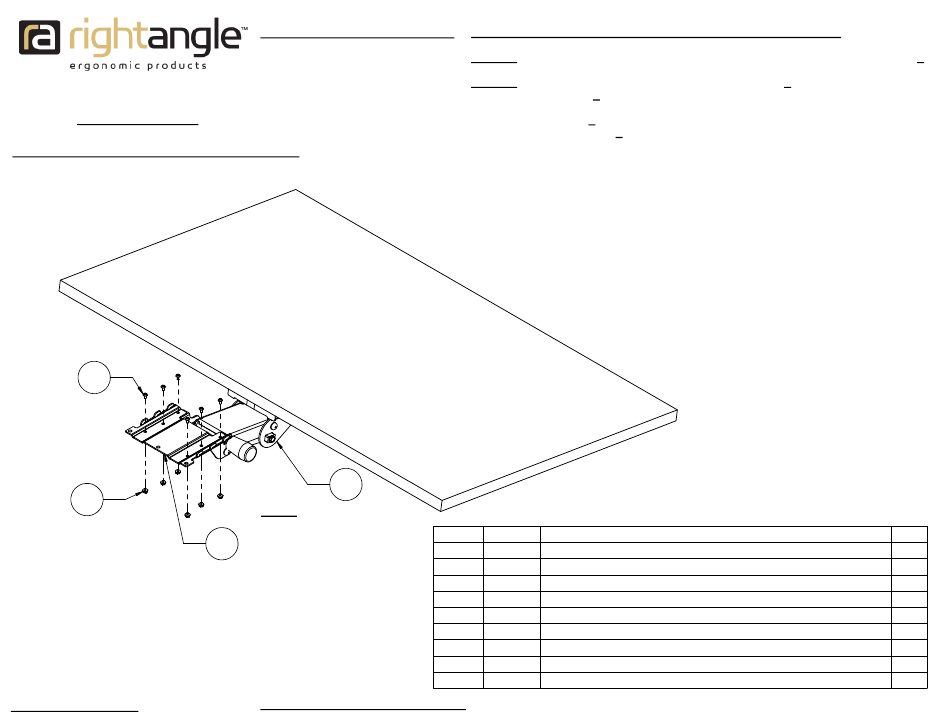

HOOK AND SLOT ADAPTER PLATE INSTALLATION INSTRUCTIONS:
STEP 1: REMOVE THE OLD KEYBOARD TRAY FROM THE ARTICULATING ARM
STEP 2: PLACE THE HOOK AND SLOT ADAPTER PLATE
ARTICULATING ARM 2 WITH THE HOOKS FACING UP AND TOWARD THE BACK.
ALIGN THE HOLES IN THE HSAP WITH THE HOLES IN THE ARM. INSERT (6)
MACHINE SCREWS 3 THROUGH THE HOLES IN THE HSAP AND ARM. THREAD
(6) FLANGE LOCK NUTS
AND TIGHTEN.
ITEM # PART #
1 HSAP HOOK AND SLOT ADAPTER PLATE
2 VARIES ARTICULATING ARM
3 50318 8-32 x 3/8 PHILLIPS TRUSS HEAD MACHINE SCREW 6
4 50267 8-32 SERRATED FLANGE LOCK NUT
5 MRD MYRIAD KEYBOARD TRAY
6 MMT MYRIAD MOUSE TRAY
7 52490 M6 EXTERNAL TOOTH LOCK WASHER
8 50016 1/4-20 KNURLED HEAD THUMB SCREW
9 50363 WIRE SADDLE LOCKING TOP
1 ON TOP OF THE
4 ONTO THE MACHINE SCREWS FROM THE BOTTOM
DESCRIPTION
2 .
QTY.
1
1
6
1
1
1
1
2
PAGE 1 OF 2
