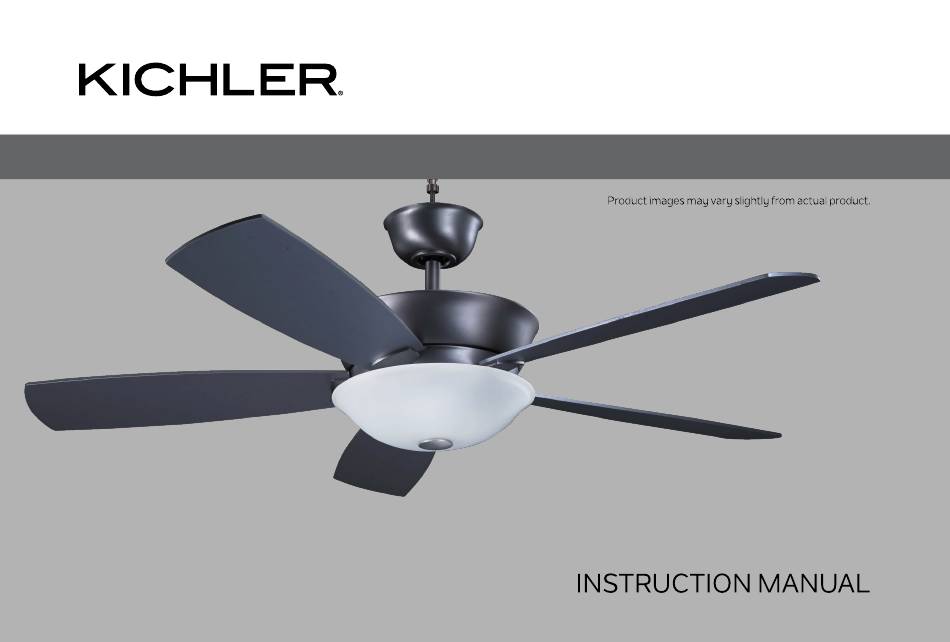

  • Page 1 54" Skye LED...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY RULES ………………………………………………………. 4 INSTALLING THE LIGHT KIT ………………………………… 14 TOOLS AND MATERIAL REQUIRED ………………… 5 INSTALLING THE LAMP AND GLASS SHADE …… 15 PACKAGE CONTENTS …………………………………………. 5 INSTALLING THE TRANSMITTER………………………… 15 MOUNTING OPTIONS ………………………………………… 6 CONTROL SYSTEM SET-UP ………………………………… 16 HANGING THE FAN ………………………………………..

  • Page 4: Safety Rules

    SAFETY RULES To reduce the risk of electric shock, insure electricity has Do not use water or detergents when cleaning the fan or fan been turned o at the circuit breaker or fuse box before blades. A dry dust cloth or lightly dampened cloth will be suitable beginning.

  • Page 5: Tools And Material Required

    TOOLS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters PACKAGE CONTENTS Unpack your fan and check the contents . You should have the following items: A. Mounting bracket M. Finial N. Wall Mount Control System B.

  • Page 6: Mounting Options

    MOUNTING OPTIONS If there isn’t an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its Outlet box support must be able to fully support the moving weight of the fan (at least 50 lbs).

  • Page 7: Hanging The Fan

    HANGING THE FAN REMEMBER to turn o the power before you begin installation. This is necessary Outlet Box for your safety and also the proper programming of the control system.To properly Ceiling Mounting Bracket install your ceiling fan, follow the steps below. Flat Washer Screw Step 1...
  • Page 8 Lock Pin Step 3. Loosen the two set screws and remove the lock pin and hitch pin from the top coupling of the motor body.Carefully feed the fan wires up through the downrod. Hitch Pin Lock Pin Set Screw Thread the downrod onto the motor coupling until the hitch pin holes are aligned. Hitch Pin Next, replace the lock pin and hitch , pinand tighten both set screws.

  • Page 9: Installation Of Safety Support

    INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) Flat Washer Wood Screw Support Brace Spring Washer A safety support cable is provided to help prevent the ceiling fan from faIling, please Ceiling Outlet Box install it as follows. Step 1. Drive a wood screw and washers into the side of the brace that holds the outlet box.

  • Page 10: Electric Connections

    MAKE THE ELECTRIC CONNECTIONS WARNING: To avoid possible electrical shock,be sure you have turned o the power at the main circuit panel before wiring. Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan. Secure the connector with electrical tape.

  • Page 11: Finishing The Installation

    MAKE THE ELECTRIC CONNECTIONS Step 3. Remote Receiver to Outlet Box Electrical Connections: Connect the BLACK (hot) wire from the ceiling to the BLACK wire marked “AC in L” from the receiver . Connect the WHITE ( neutral ) wire from the ceiling to the Mounting Bracket WHITE wire marked “...

  • Page 12: Attaching The Fan Blades

    FINISHING THE INSTALLATION Step 3. Securely attach and tighten the canopy hole cover over the shoulder Bulb screws in the mounting bracket utilizing the keyslot twist-lock feature. (Fig. 17) Canopy Hole Cover Shoulder Screw Step 4. Install two (2) lamps 5W (included), one in each socket as shown. (Fig.

  • Page 13: Installing The Mounting Plate

    ATTACHING THE FAN BLADES Motor Body Step 2. Fasten blade assembly to the holes located on the bottom of the flywheel. Tighten Flywheel the two "pre- installed" motor screws in the blade arm. Repeat steps for the remaining blades assemblies.(Fig. 20) Blade Assembly Motor Screw Fig.

  • Page 14: Installing The Light Kit

    INSTALLING THE LIGHT KIT NOTE: Before continuing installation, confirm that the power is still turned o at the main circuit breaker or by removing the correct fuse. Turning the power o using a wall switch is not su cient to prevent electrical stock. Switch Housing Light Kit Step 1.

  • Page 15: Installing The Lamp And Glass Shade

    INSTALLING THE LAMP AND GLASS SHADE Step 1. Install the 2, 5 Watt lamps (provided) into each socket on the light kit. (Fig. 24) Step 2. Slide the glass bowl over the threaded pipe on the light kit. Thread the finial nut onto the pipe.

  • Page 16: Control System Set-Up

    Outlet Box INSTALLING THE TRANSMITTER Switch Wall Plate Step 1. Remove the existing wall plate and the old switch from the wall outlet box. Wire nut the BLACK leads (hot) together and push back inside the outlet box. (Fig. 26) Or Select the desired location with a new wall outlet box.

  • Page 17: Operating Instructions

    CONTROL SYSTEM SET-UP Step 1. You can leave the frequency switches at the factory setting. Or you have to change the dip switch setting in the remote if you are using more than one fan in the same area and want to control them separately.

  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem Solution Fan will not start. 1.Check circuit fuses or breakers. 2.Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3.Make sure the transmitter batteries are installed properly. Positive (+) side facing out. 4.Insure the batteries have a good charge.

  • Page 19: Fcc Warning

    TROUBLESHOOTING Problem Solution Remote control 1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control malfunction. system EXCEPT a basic On/O wall switch, if desired. FCC WARNNING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation.
