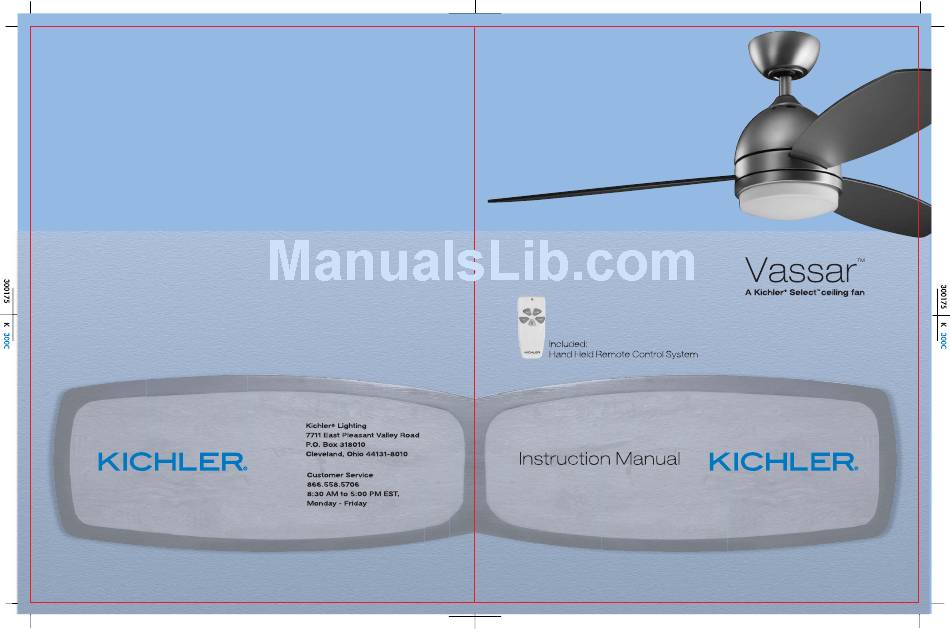

Kichler Lighting VASSAR Instruction Manual

Hide thumbs Also See for VASSAR:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VASSAR and is the answer not in the manual?

Questions and answers

Related Manuals for Kichler Lighting VASSAR

Summary of Contents for Kichler Lighting VASSAR

  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning.

  • Page 3: Tools And Materials Required

    Vassar 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (3) b. Canopy & Ceiling mounting bracket Ball/downrod assembly d.

  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure.

  • Page 5: Hanging The Fan

    Vassar 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. Ceiling To properly install your ceiling fan, follow the canopy steps below. Canopy cover Step 1. Remove the decorative canopy Fig. 5 bottom cover from the canopy by turning the cover counter clockwise.
  • Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9. Lift the motor assembly into position Canopy cover and place the hanger ball into the ceiling mounting bracket.

  • Page 7: Installation Of Safety Support

    Vassar 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install it as follows. Ceiling mounting Attach safety cable bracket Step 1. Attach the provided wood screw and...

  • Page 8: Finishing The Installation

    Connect the white wire from the fan to the white wire marked "TO MOTOR N" on the receiver. Outlet box Connect the blue wire from the fan to the blue wire marked "FOR LIGHT" on the receiver. White (neutral) Black (hot) Secure each set of wire connections with the Green or bare plastic wire nuts provided in the parts bag.

  • Page 9: Attaching The Fan Blades

    Vassar 9. ATTACHING THE FAN BLADES Step 1. Insert the blade through the blade slot in the motor housing. Align the holes in blade and blade bracket, making sure the holes are also aligned and secure with the screws and fiber washers provided.

  • Page 10: Installing The Light Fixture

    11. INSTALLING THE LIGHT FIXTURE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the three mounting screws on the inside of the light fixture. Hold the light kit close to the mounting plate and connect the white wires from the light kit and the fan.

  • Page 11: Installing The Battery

    Vassar 13. INSTALLING THE BATTERY Install a 9 volt battery included with the Hand Held Transmitter. (Fig. 20) Note: To prevent damage to the transmitter, remove these batteries if not used for long periods of time (months). Battery Battery cover Fig.
  • Page 12 NOTE: Turn fan off by Hand Held Remote Reverse switch Control System and let blades come to a complete stop before manually activating the reverse switch. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on.
  • Page 13 Vassar 15. INSTALLING THE TRANSMITTER WALL BRACKET Screws 1. Choose a location for the Transmitter Wall Pocket. Any location within 30 feet from the ceiling fan remote control receiver is required. Choose a flat location, using the wall pocket as a guide, mark the wall anchor locations.

  • Page 14: Troubleshooting

    16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
