- Page 1 Installation and Operating instructions for CP39xx-0000 Multi-touch Control Panel with DVI/ USB Extended interface CP39xx-0010 Multi-touch Control Panel with CP-Link 4 interface Version: 2.6 Date: 2020-01-17...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Foreword Notes on the Documentation 1.1.1 Liability Conditions 1.1.2 Trademarks 1.1.3 Patent Pending 1.1.4 Copyright 1.1.5 State at Delivery 1.1.6 Delivery conditions Description of safety symbols Basic safety measures Operator’s obligation to exercise diligence 1.4.1 National regulations 1.4.2... - Page 4 6 Troubleshooting 7 Assembly dimensions 8 Technical Data 9 Appendix Beckhoff Support and Service 9.1.1 Beckhoff branches and partner companies 9.1.2 Beckhoff company headquarters Approvals for USA and Canada FCC Approvals for the United States of America FCC Approval for Canada...
-
Page 5: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG. 1.1.6 Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH & Co. KG apply. CP39xx... -
Page 6: Description Of Safety Symbols
Foreword 1.2 Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury! If you do not adhere the safety advise adjoining this symbol, there is immediate danger to life and health of individuals! DANGER Risk of injury! -
Page 7: Basic Safety Measures
Foreword 1.3 Basic safety measures Before the Industrial PC is switched off, software that is running must be properly closed. Otherwise it is possible that data on the storage medium is lost. Please read the section Switching the Control Panel on and off. -
Page 8: Operator's Obligation To Exercise Diligence
• the operation manual is in good condition and complete, and always available for reference at the location of the product. Do not open the housing of the Control Panel! For technical support contact Beckhoff Service. Note 1.4.1 National regulations Depending on the type of machine and plant in which the Control Panel is used, national regulations governing the controllers of such machines will apply, and must be observed by the operator. -
Page 9: Product Description

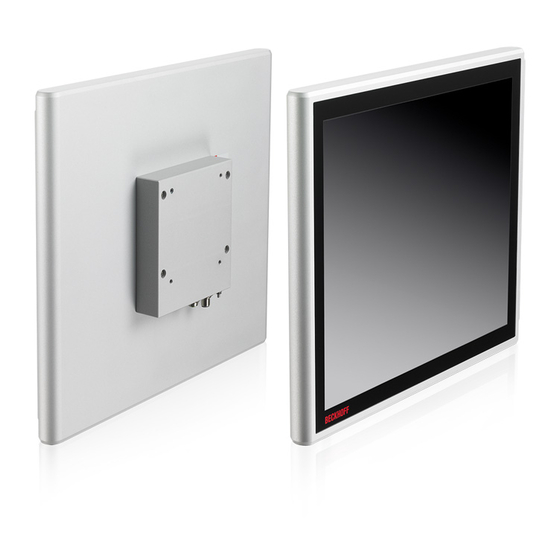

2.1 Product overview Front view of CP39xx The new Beckhoff panel generation with industry-standard multi-touch display offers a feature-laden solution for any application. The wide selection of models offers different display sizes and formats as well as custom designs. Even for single-touch users, this new panel generation offers an excellent price- to-performance ratio and represents an economical alternative to other systems. -
Page 10: Appropriate Use
Product Description 2.2 Appropriate Use The multi-touch Control Panel CP39xx is designed for industrial application in machine and plant engineering. A multi-touch display is accommodated in a stainless steel housing. For mounting the Control Panel there are 4 threaded holes M6 in the connection block at the rear cover. Optionally rotatable and tiltable mounting arm adapters are available for installation with 48 mm tubes from the bottom or from the top, see chapter Mounting arm installation... - Page 11 Product Description Connection block CP39xx-0010 For the pin assignment see chapter Interfaces CP39xx-0010. CP39xx...
-
Page 12: Fitted With Mounting Arm Adapter
Product Description 2.3.2 Fitted with mounting arm adapter If the Control Panel is fitted with a mounting arm adapter (order option C9900-M750 to C9900-M753), the connectors are located behind the cover (1). For removing first unlatch the cover (1) carefully at the two notches (see arrows) using a suitable tool (e.g. -
Page 13: Installing The Cables
Product Description 2.3.3 Installing the Cables After opening the connection area you have access to the connections of the Control Panel. The cables with the connectors have to be threaded through the mounting arm tube before connecting them in the connection area. -
Page 14: Interfaces Cp39Xx-0000
Product Description 2.4 Interfaces CP39xx-0000 X103 X102 X101 Ground USB-E Input DVI-E Input Power Supply 2.4.1 Power Supply (X101) X101 SG 4-pole M12 built-in-PCB-sold. IP67 BINDER (BINDER 09-3431-90-04 prod. 763 M12X1) View solder connection sided The power supply for the Control Panel is established via the 4-pole M12 socket (X101). The protection class of the circular plug-in connector accords to the IP65-standard. -
Page 15: Usb-E Input (X 103)
Product Description 2.4.3 USB-E Input (X 103) X103 SG 8-pole M9 built-in-PCB-sold. IP67 BINDER (BINDER 09-0427-30-08 prod. 712 M9X0,5) View solder connection sided The Control Panel is connected with the CU8801 USB to USB extended converter box via the USB- Extended input (X103). -
Page 16: Interfaces Cp39Xx-0010
Product Description 2.5 Interfaces CP39xx-0010 2.5.1 CP-Link 4 Architecture Description 2.5.1.1 CP-Link 4 – The Two Cable Display Link The CP39xx-0010 multi-touch panels can be operated up to 100 m away from the PC. CP-Link 4 transfers DVI and USB together via a CAT.6 cable. - Page 17 Product Description 2.5.1.2 CP-Link 4 – The One Cable Display Link The power supply for the Control Panel can also be provided via CP-Link 4. The CU8803 CP-Link 4 transmitter box is used instead of the CU8802 or the PCIe module. The Control Panel remains unchanged.
-
Page 18: Interfaces
Product Description 2.5.2 Interfaces X102 X101 Ground CP-Link 4 Input Power Supply 2.5.3 Power Supply (X101), optional X101 SG 4-pole M12 built-in-PCB-sold. IP67 BINDER (BINDER 09-3431-90-04 prod. 763 M12X1) View solder connection sided The power supply for the Control Panel is established via the 4-pole M12 socket (X101). The protection class of the circular plug-in connector accords to the IP65-standard. -
Page 19: Cp-Link 4 Input (X102)
Product Description 2.5.4 CP-Link 4 Input (X102) X102 SG 8pole M12 build-in-IP67 METZ connect CAT6A The Control Panel is connected with the PCIe module slot of the Industrial PC or the transmitter box CU8802/ CU8803 via the CP-Link 4 Input (X 102). Signal Signal HDBT_0P... -
Page 20: Usb Interface At The Mounting Arm Adapter (Optional)
Product Description 2.6 USB interface at the mounting arm adapter (optional) Optionally the Control Panel is fitted with a USB-2.0 Interface (order option C9900-E274). The interface is located at the mounting arm adapter behind a screw cap, the protection class accords to the IP65-standard. -
Page 21: Connection Kits/ Connection Cables/Accessories
Product Description 2.8 Connection Kits/ Connection Cables/Accessories One 4-pole power supply connector is provided with the Control Panel. 2.8.1 Connection Kit DVI-E/ USB-E connection for CP39xx-0000, optional Optionally prefabricated connection cables for the DVI-E/ USB-E connection are available. Connection kit DVI-E/ USB-E connection Connection kit 3 m for CP39xx including: C9900-K630... - Page 22 Product Description C9900-K652 Connecting cable RJ45, Cat.6A, 5 m, one end with IP 65 connector for Control Panel CP39xx-0010 C9900-K653 Connecting cable RJ45, Cat.6A, 10 m, one end with IP 65 connector for Control Panel CP39xx-0010 C9900-K654 Connecting cable RJ45, Cat.6A, 20 m, one end with IP 65 connector for Control Panel CP39xx-0010 C9900-K655 Connecting cable RJ45, Cat.6A, 30 m, one end with IP 65 connector for Control Panel CP39xx-0010 C9900-K656...
-
Page 23: Installation
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP39xx... -
Page 24: Mounting
Mounting 4 Mounting The Control Panel will be mounted with 4 threaded screws M6 at the connection block at the rear cover (see chapter Assembly dimensions). Optionally the assemblage occurs by using the mounting arm adapter (order option). The ambient conditions specified for operation must be observed (see chapter Technical Data). -
Page 25: Mounting Arm Installation (Optional)
Mounting 4.2 Mounting arm installation (optional) The mounting arm adapter is designed for Rittal- and Rolec mounting arm systems with 48 mm tubes. Depending on the order option the mounting arm can be installed from the bottom or from the top. Order-Option Description C9900-M750... -
Page 26: Mounting The Mounting Arm Tube
Mounting 4.2.1 Mounting the mounting arm tube For mounting the mounting arm tube proceed as follows: 1. Unscrew the Allen locking screw (1) a few turns. 2. After feeding the connection cables of the Control Panel through the mounting arm tube, the mounting arm tube will be positioned into the mounting arm adapter Insert the mounting arm tube all the way to the stop The mounting arm tube has to extend into the adapter all the way to the stop, make... - Page 27 Mounting 3. Tighten the Allen locking screw using the Allen key (2). Now the screw cap is tightened carefully clockwise, using the hook wrench SW 58-62 (3). CP39xx...
-
Page 28: Connecting The Control Panel
Mounting 4.3 Connecting the Control Panel The mains plug must be disconnected Please read the documentation for the external devices prior to connecting them! Attention During thunderstorms, plug connector must neither be inserted nor removed! When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! CU8803-0000 disconnect power supply If using the CP-Link 4 - One Cable Display Link, the 24 V power supply of the CP-Link 4 transmitter box must be switched off before disconnecting the CP-Link 4 output... -
Page 29: Operating Instructions
Operating Instructions 5 Operating Instructions 5.1 Switching the Control Panel on and off 5.1.1 Switching on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the Control Panel is activated. 5.1.2 Shutting down and switching off Control software such as is typically used on Industrial PCs permits various users to be given different rights. -
Page 30: Servicing And Maintenance
Operating Instructions 5.3 Servicing and maintenance 5.3.1 Cleaning Disconnect power supply Switch off the device and all connected devices, and disconnect the device from the power supply. DANGER The device can be cleaned with a soft, damp cleaning cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 31: Troubleshooting
No power supply to the Control Check power supply cable function Panel/ Industrial PC Correctly connect cable Call Beckhoff Service Cable not connected Computer boots, software starts, Cause of the fault is either in the Call the manufacturer of the... -
Page 32: Assembly Dimensions
7 Assembly dimensions For the assembly dimensions of the Control Panels please visit our homepage. Here you will find the actual drawings using the link: http://download.beckhoff.com/download/Technical_Drawings/Industrial_PC/Control_Panel/CP39xx Notice mounting orientation The assembly of the unit must take place with the orientation diagrammed here. -
Page 33: Technical Data
Technical Data 8 Technical Data Risk of explosion! Do not use the Control Panel in areas of explosive hazard! Danger Pixel errors Pixel errors in the TFT display are production-caused and represent no complaint- reason! Note Anomalies of the Touchscreen Anomalies of the touchscreen sensor are production-caused and represent no Note complaint-reason! -
Page 34: Appendix
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com. You will also find further documentation for Beckhoff components there. -
Page 35: Approvals For Usa And Canada
Appendix 9.2 Approvals for USA and Canada 9.3 FCC Approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
