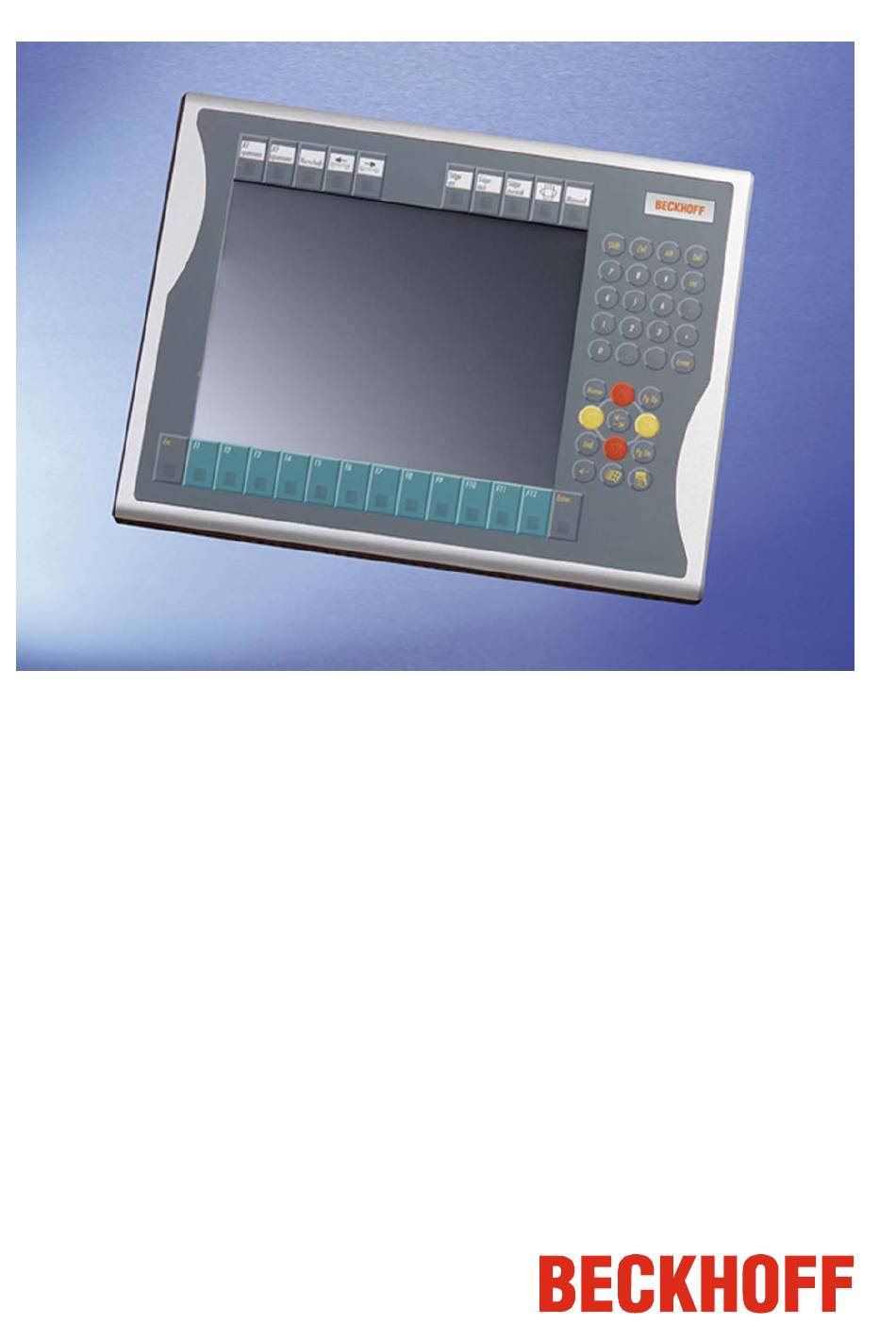

- Page 1 Installation and Operating instructions for CP79xx Control Panel Version: 1.5 Date: 2011-06-27...
-
Page 2: Table Of Contents
Cleaning the Control Panel Servicing Emergency procedures Shutting down Disposal Troubleshooting Fault correction Beckhoff Support & Service Beckhoff branches and partner companies Beckhoff Headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference Statement... -
Page 3: Foreword
Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH. Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH apply. -
Page 4: Description Of Safety Symbols
Foreword Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury!! If you do not adhere the safety advise adjoining this symbol, there is DANGER immediate danger to life and health of individuals! Risk of injury! -
Page 5: Basic Safety Measures
Foreword Basic safety measures Only switch the PC off after Before the Industrial PC is switched off, software that is running must closing the software be properly closed. Otherwise it is possible that data on the storage medium is lost. Please read the section Functional description. -
Page 6: Operator's Obligation To Exercise Diligence
The operator must initiate such inspections in good time. Do not open the housing of the Control Panel! For technical support contact Beckhoff Service. Note Procedure in the event of a... -
Page 7: Product Description

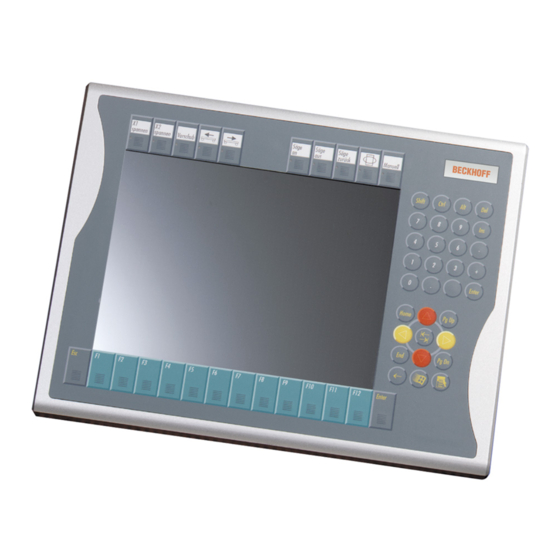

Product Description Product Description Appropriate Use The CP79xx Control Panel is designed for industrial application in machine and plant engineering. An aluminum housing contains a TFT display, touch-screen/ pad (optional), and a PC keyboard (optional). The panel is installed via the 4 mounting holes in the backplane or the mounting arm system adapter (optional). -
Page 8: Connector Description
Product Description Connector description DVI-Extended (Digital Visual Interface-Extended) DVI-E input The DVI-E connection (X101) is used for transferring the video signal from the Industrial PC to the Control Panel. The graphics signal is transferred directly via a DVI cable over a distance of 50 m max. -
Page 9: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP79xx... -
Page 10: Assembly
Installation Instructions Assembly Assembly dimensions All dimensions are in mm. CP79xx Control Panel screw thread M6 interface Without keys Dimensions CP7909 6.5“ Display 267.9 241.9 CP7901 12“ Display 353.8 326.3 27.5 327.6 303.7 CP7902 15“ Display 28.5 399.8 367.4 CP7903 19“... -
Page 11: Connecting The Control Panel
Installation Instructions Connecting the Control Panel Risk of explosion! The Control Panel must never be connected or disconnected in an area DANGER that is subject to explosion hazard! Risk of explosion! Power supply plug The mains plug must be disconnected! Attention Please read the documentation for the external devices prior to connecting them. -
Page 12: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter Foreword. Functional description Switch on The Control Panel does not have its own mains power switch. As soon as the power supply is switched on the control panel is activated. Shutting down and When the plant is switched off, or when it is disconnected from its power switching off supply, the Control Panel will be switched off. -
Page 13: Keyboard Codes
Operating Instructions Keyboard codes Type-dependent number of Depending on the precise type, the Control Panel can have fewer keys keys than those described here. Operation The cursor is the blinking character that marks the point at which the next character entered will be displayed. The cursor is also known as the insertion point. - Page 14 Operating Instructions The Esc key has the effect of closing dialog windows and of interrupting some of the computer’s working operations. All other keys bring the character printed on them onto the display at the position of the cursor. The meaning of the function keys, F1 to F10, is determined by the software and is displayed at the bottom edge of the display.
-
Page 15: Servicing And Maintenance
Servicing The Control Panel requires no maintenance. Do not open the housing of the Control Panel! For technical support contact Beckhoff Service. Note Emergency procedures In case of fire, the Control Panel should be extinguished with powder or nitrogen. -
Page 16: Troubleshooting
Check power supply cable function when the Industrial PC has been started Cable not connected 1. Correctly connect cable 2. Call Beckhoff Service The Industrial PC does not boot Setup settings are incorrect Check the setup settings fully Other cause... -
Page 17: Beckhoff Support & Service
Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com You will also find further documentation for Beckhoff components there. -
Page 18: Appendix
Appendix Appendix Technical data Dimensions Dimensions (W x H x D): See section Assembly dimensions Operation in areas that are The Control Panel must not be used where there is a risk of subject to explosion hazard explosion. The following conditions must be observed during operation: Environmental conditions Ambient temperature: 0 to 55°C...
