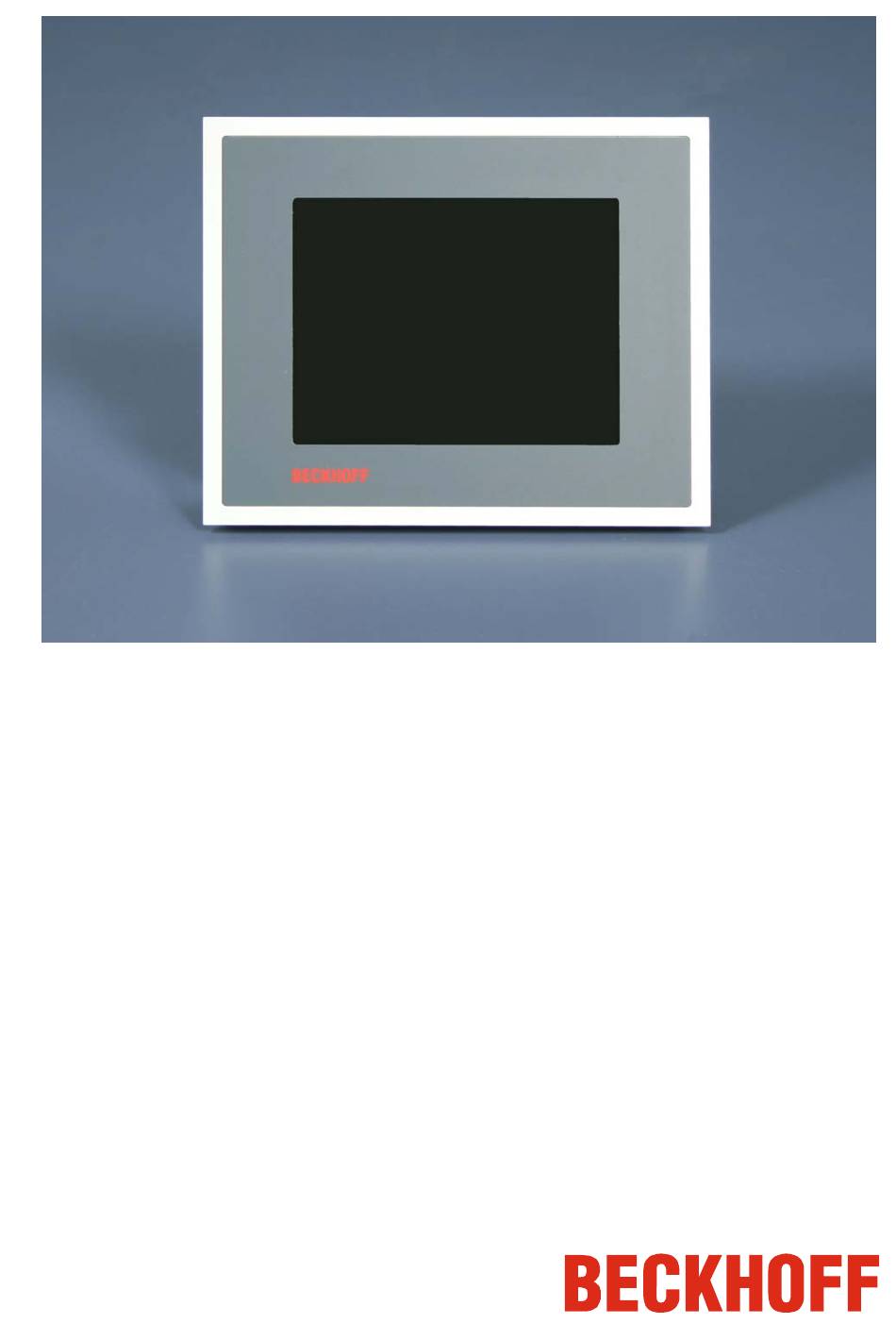

- Page 1 Installation and Operating instructions for Built-in Control Panel CP6608 Version: 1.0 Date: 2008-02-07...
-
Page 3: Table Of Contents
Replacing the fluorescent lamps in the display Emergency procedures Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Appendix Technical data Approvals FCC: Federal Communications Commission Radio Frequency Interference... -
Page 4: General Notes
© This documentation is protected by copyright. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 5: Basic Safety Measures
Assembly work on the Control Panel during operation may damage the panel: Note • if metal objects such as screws or tools fall onto operating circuit boards. • if connecting cables internal to the control panel are removed or inserted during operation CP6608... -
Page 6: Operator's Obligation To Exercise Diligence
Read the operating Anyone who uses the Control Panel must have read these operating instructions instructions. Software knowledge Every user must be familiar with all the functions of the software installed on the Control Panel to which he has access. CP6608... -
Page 7: Product Description

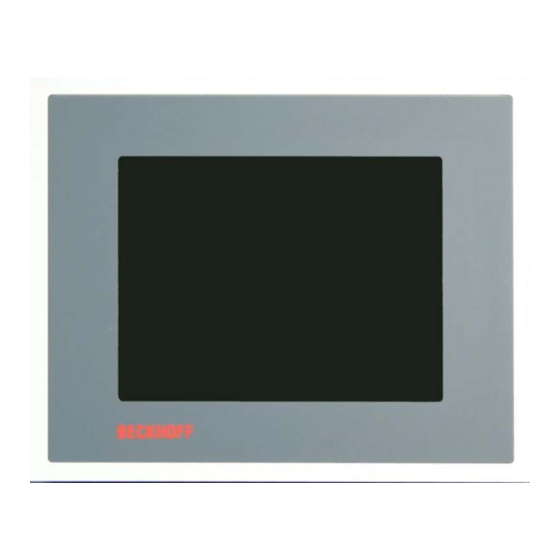

Product Description Product Description Appropriate Use The CP6608 Control Panel is designed for industrial application in machine and plant engineering. A steel plate housing with aluminum front contains a TFT display and a touch screen (optional). The Control Panel is installed in the front of control cabinets. -
Page 8: Connector Description
Power Supply is established Ordering Option Option C9900-E197 “Economy"-Einbau-Control-Panel CP6608 Version: Building Automation 18 pin connector instead of RS232 serial port with 2 digital inputs for 24 V, 2 digital outputs for 24 V, PT100 sensor input, stereo sound line out... -
Page 9: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. CP6608... -
Page 10: Assembly
Installation Instructions Assembly Assembly dimensions Control Panel CP6608 All dimensions are in mm. Required cutout CP6608... -
Page 11: Mounting Of The Control Panel
Release clamping levers, Insert the Control Panel into the cutout. Release the clamping levers with a No. 2.5 Allen key. Folding them out Turn the clamping levers to the side through 90° and retighten them. and retighten the screws. CP6608... -
Page 12: Fitting The Cable
Tighten the lacing cord and pinch off the plastic strap. Fixing the upper part of the stain relief housing Fix the upper part of the stain relief housing by snapping it onto the lower part. CP6608... -
Page 13: Connecting The Control Panel
Disconnect the Control Panel from the power supply • Connect all cables at the Control Panel and at the devices to be connected • Ensure that all screw connections between connectors and sockets are tight! • Reconnect all devices to the power supply. CP6608... -
Page 14: Operating Instructions
The touch screen may only be actuated by finger tips or with the touch screen pen. The operator may wear gloves but there must be no hard Note particles such as metal shavings, glass splinters embedded in the glove. CP6608... -
Page 15: Servicing And Maintenance
Note hours. The fluorescent lamps of the 5.7 inch display can only be replaced from Beckhoff Service. Emergency procedures In case of fire, the control panel should be extinguished with powder or nitrogen. -
Page 16: Troubleshooting
The Control Panel shows no No power supply to Control Panel Check power supply cable function Cable not connected 1. Correctly connect cable 2. Call Beckhoff Service The Control Panel does not boot Setup settings are incorrect Check the setup settings fully Other cause... -
Page 17: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 18: Appendix
IP20 Power supply Supply voltage: 24 V (22 – 30 V Power consumption: contact Beckhoff Service EMC compatibility Resistance to interference: conforms to EN 61000-6-2 Emission of interference: conforms to EN 61000-6-4 Transport and storage The same values for atmospheric humidity and shock resistance are to be observed during transport and storage as in operation.
