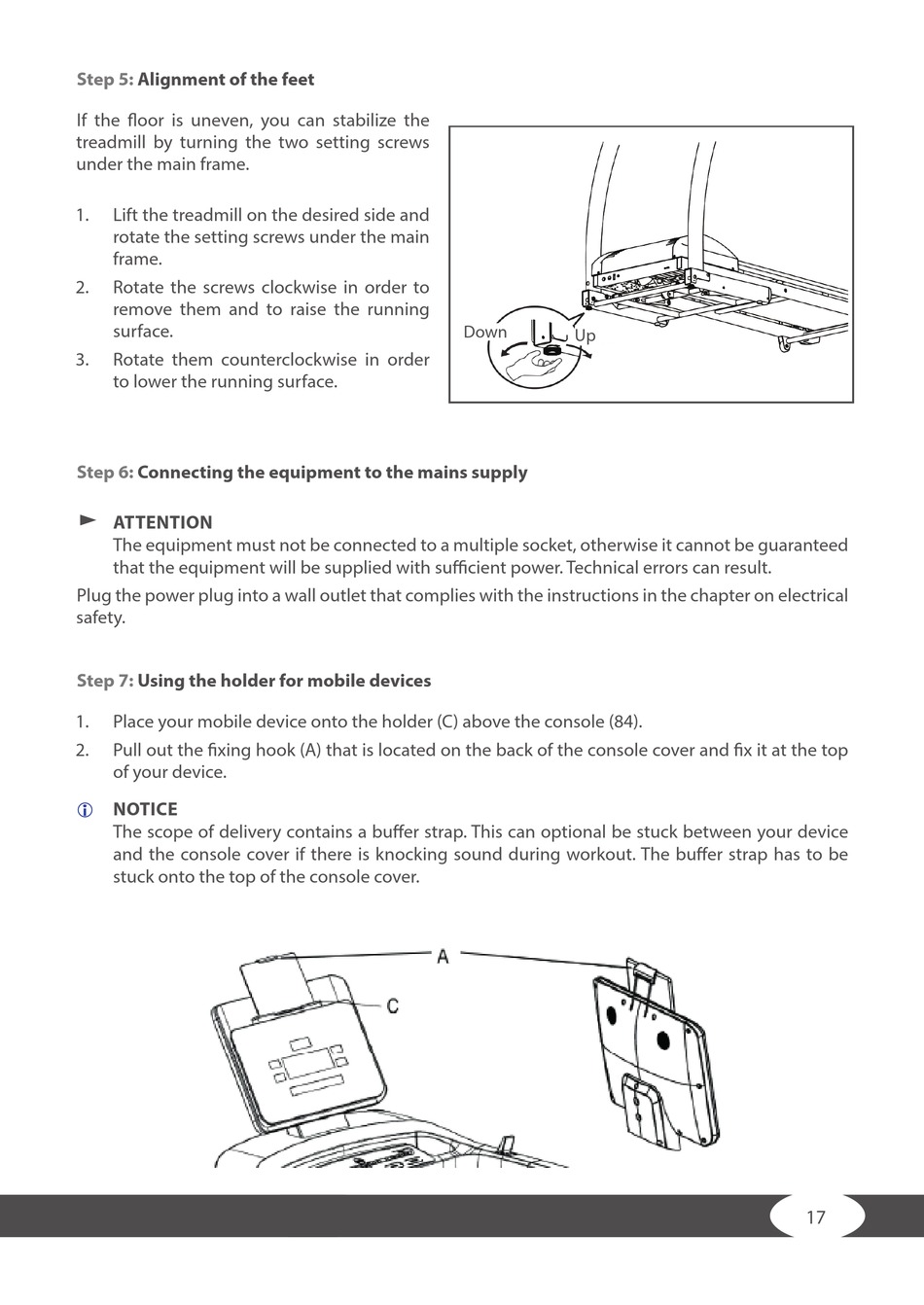

Taurus T10.3 Pro Assembly And Operating Instructions Manual page 17

Step 5: Alignment of the feet
If the floor is uneven, you can stabilize the
treadmill by turning the two setting screws
under the main frame.
1. Lift the treadmill on the desired side and
rotate the setting screws under the main
frame.
2. Rotate the screws clockwise in order to
remove them and to raise the running
surface.
3. Rotate them counterclockwise in order
to lower the running surface.
Step 6: Connecting the equipment to the mains supply
ड ATTENTION
The equipment must not be connected to a multiple socket, otherwise it cannot be guaranteed
that the equipment will be supplied with sufficient power. Technical errors can result.
Plug the power plug into a wall outlet that complies with the instructions in the chapter on electrical
safety.
Step 7: Using the holder for mobile devices
1. Place your mobile device onto the holder (C) above the console (84).
2. Pull out the fixing hook (A) that is located on the back of the console cover and fix it at the top
of your device.
NOTICE
L
The scope of delivery contains a buffer strap. This can optional be stuck between your device
and the console cover if there is knocking sound during workout. The buffer strap has to be
stuck onto the top of the console cover.
Down
Up
17
