Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fi t properly. Then tighten the screws
using the tool only when you are instructed to do so.

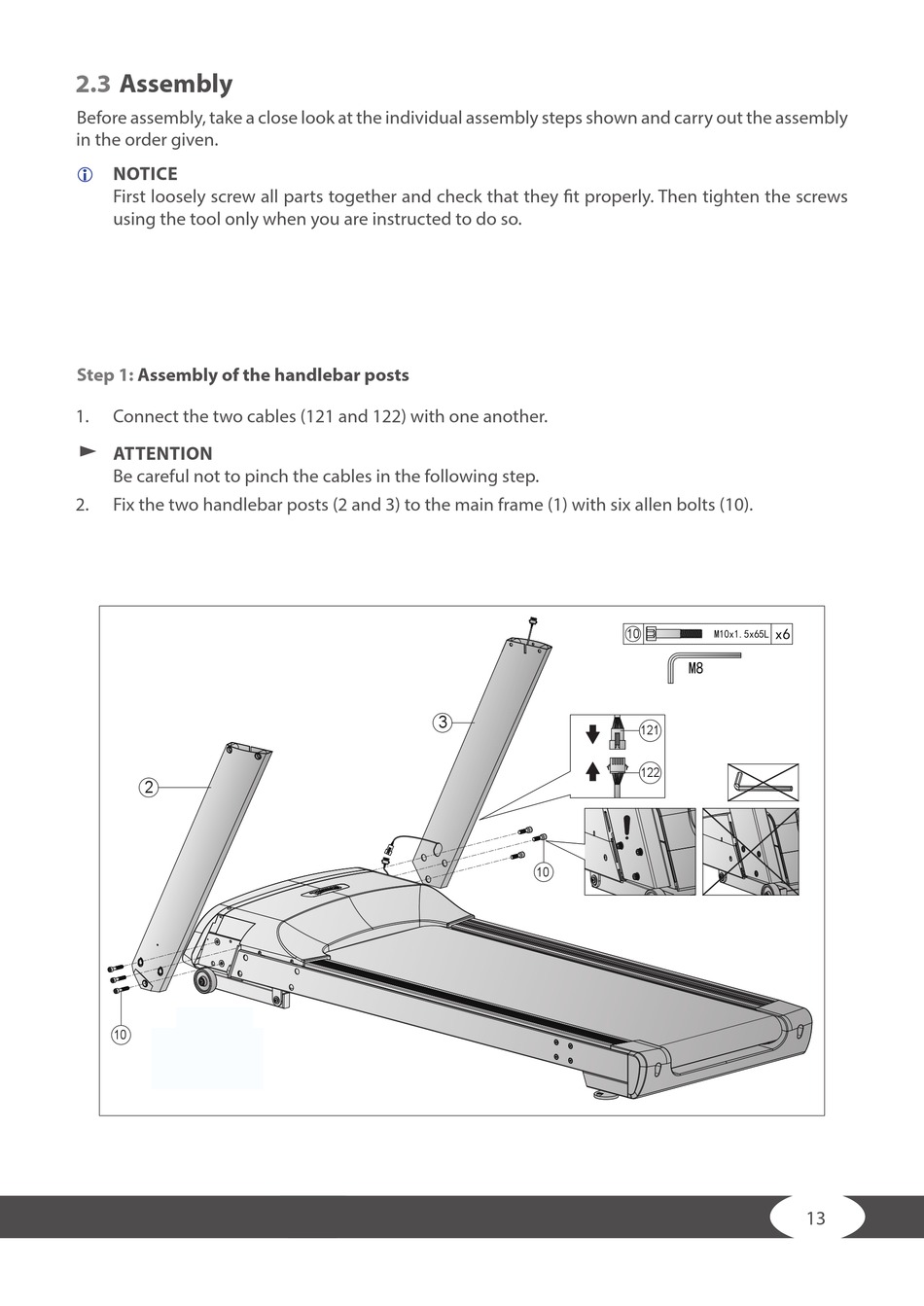

Step 1: Assembly of the handlebar posts
1. Connect the two cables (121 and 122) with one another.
ड ATTENTION
Be careful not to pinch the cables in the following step.
2. Fix the two handlebar posts (2 and 3) to the main frame (1) with six allen bolts (10).
2
10
Step1
3
10
10
x6
M10x1.5x65L
M8
121
122
