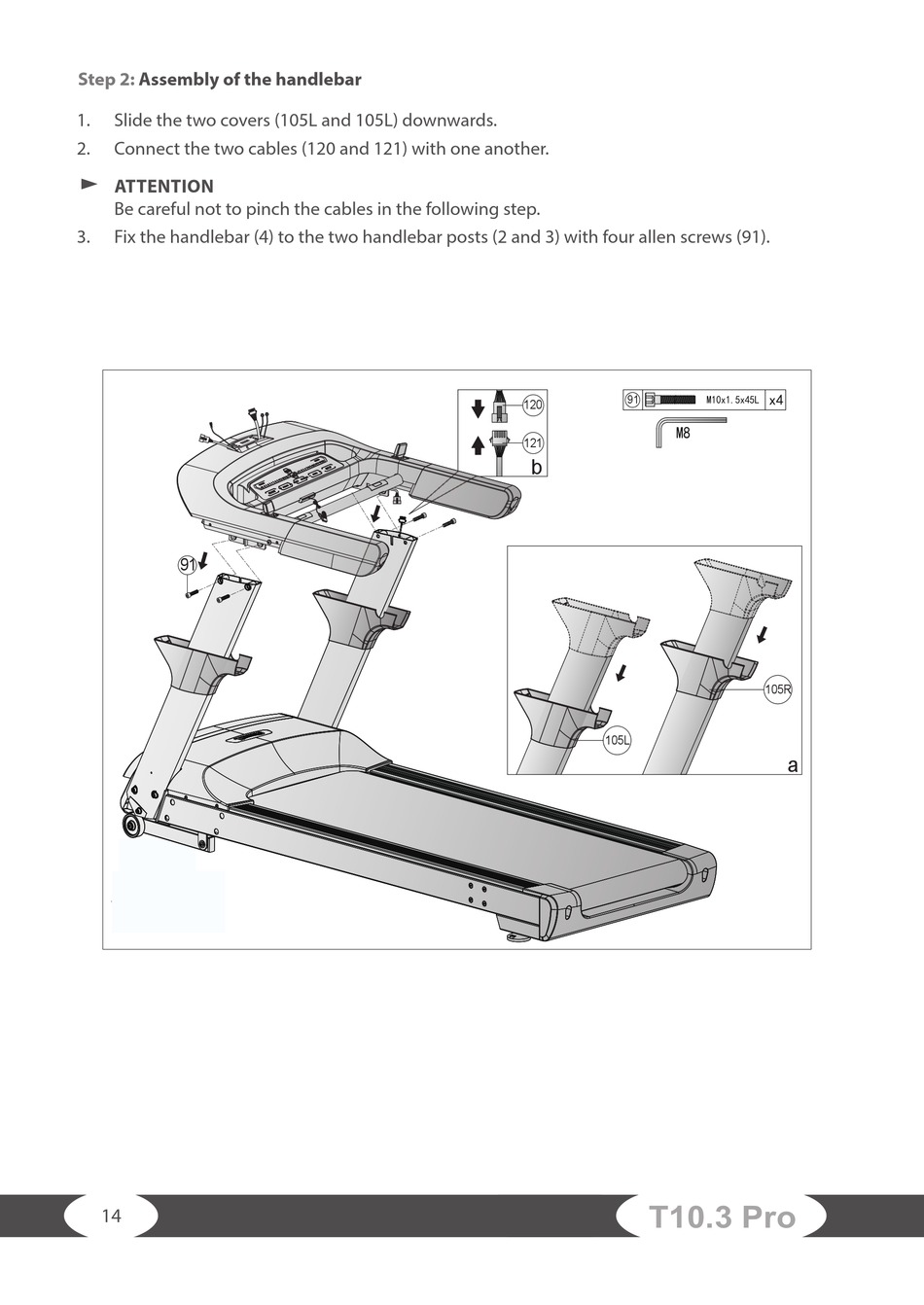

Step 2:
Assembly of the handlebar
1.
Slide the two covers (105L and 105L) downwards.
2.
Connect the two cables (120 and 121) with one another.
ड ATTENTION
Be careful not to pinch the cables in the following step.
3.
Fix the handlebar (4) to the two handlebar posts (2 and 3) with four allen screws (91).
91
Step2
14
91
120
M8
121
b
105L
T10.3 Pro
x4
M10x1.5x45L
105R
a
