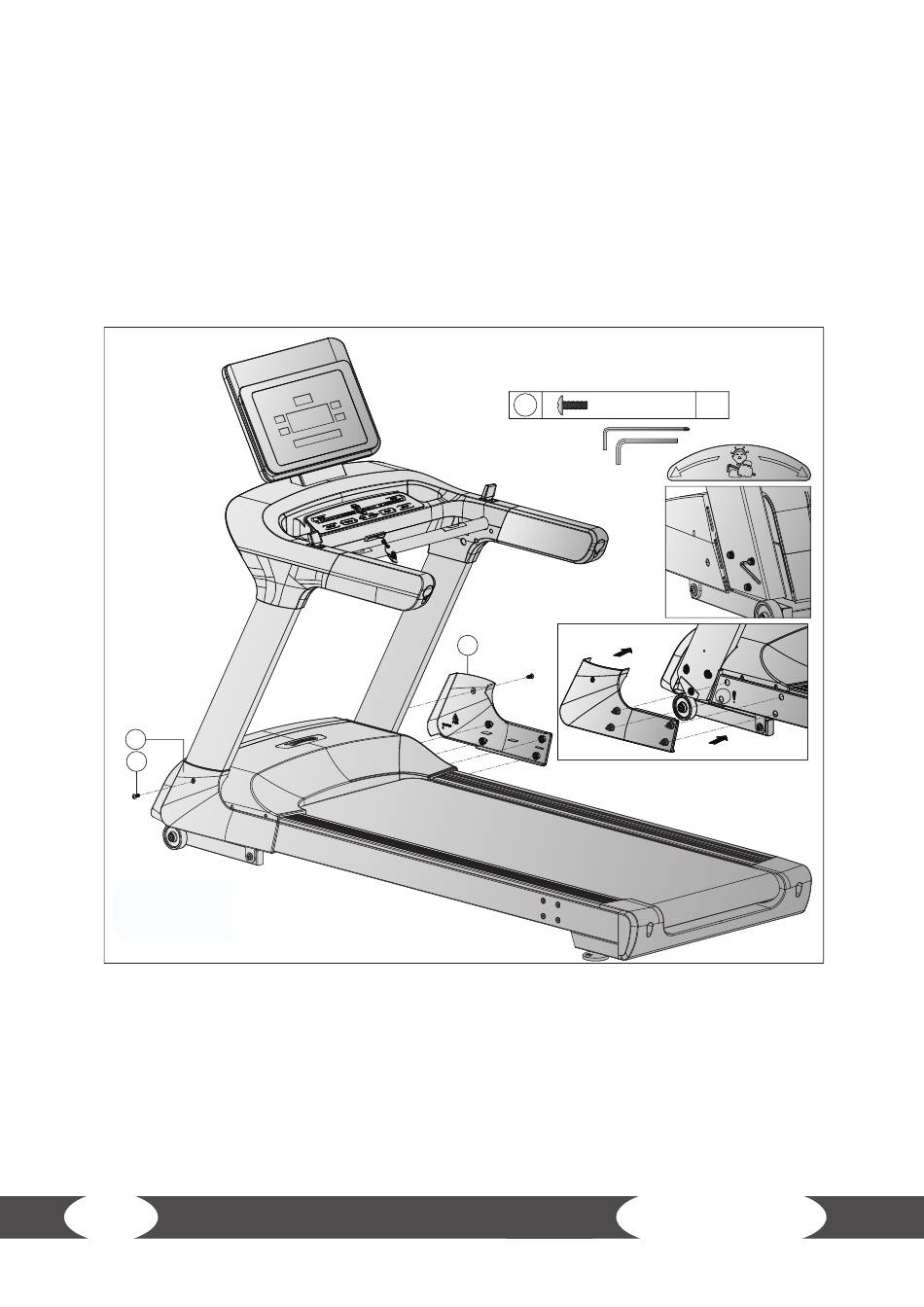

Step 4:
Finish the assembly
1.
Tighten the six allen bolts (10).
2.
Fix the covers (8L and 8R) to the main frame (1) by pressing the lugs on the inside of the covers
into the corresponding drill holes of the main frame until they engange audibly.
3.
Finally fi x the covers (8L and 8R) to the handlebar posts (2 and 3) with two cross bolts (11).
8L
11
Step4
16
11
M5x0.8x15L
b
8R
x2
a
T10.3 Pro
