Assembly and Operating Instructions
TFT10.03.03
Art. No. TF-T10.3PRO-3
TF-T99-3-B

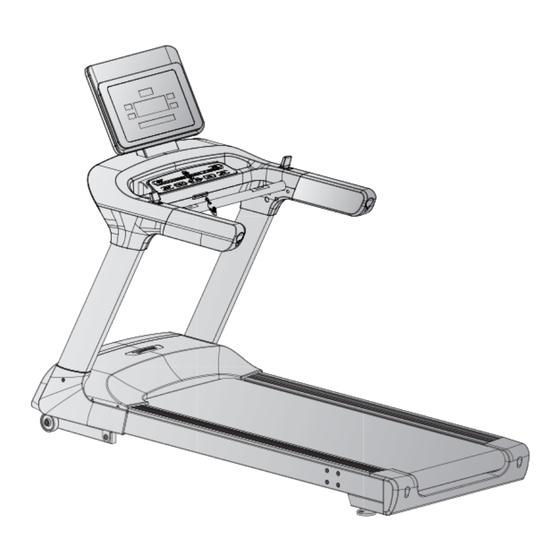

Treadmill
T10.3 Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T10.3 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Taurus T10.3 Pro

Summary of Contents for Taurus T10.3 Pro

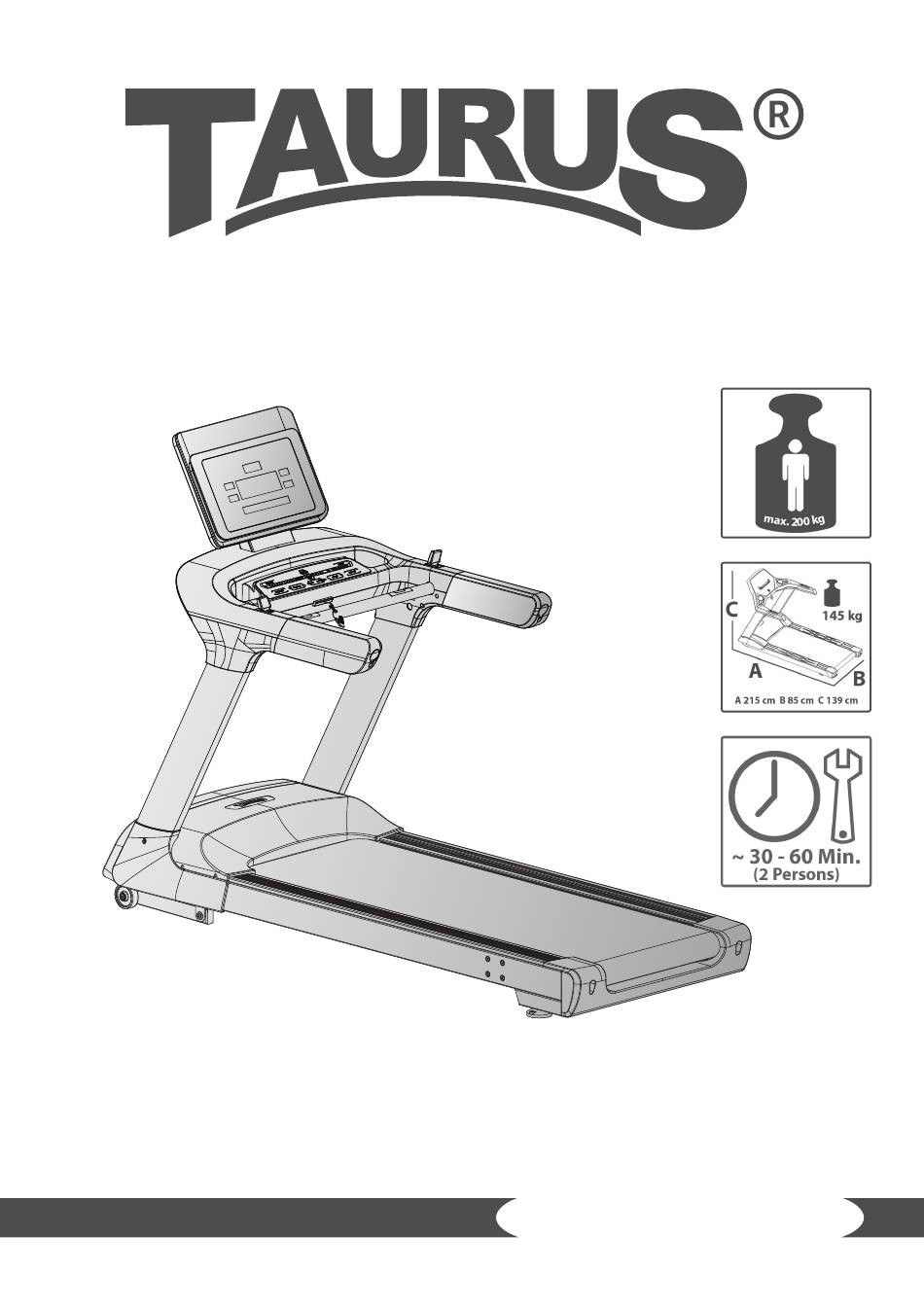

  • Page 1 Assembly and Operating Instructions TFT10.03.03 Art. No. TF-T10.3PRO-3 TF-T99-3-B Treadmill T10.3 Pro...
  • Page 2 T10.3 Pro...

  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button functions Fitness programmes 3.3.1 Quick Start 3.3.2 Manual programme 3.3.3 Low speed programme 3.3.4 Pre-set programmes 3.3.5 User-defined programmes 3.3.6 Heart rate-oriented programmes 3.3.7 Training programme Body fat test...
  • Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT T10.3 Pro...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. T10.3 Pro...

  • Page 7: General Information

    GENERAL INFORMATION Technical Data LED display of speed in km/h training time in min training distance in km calories burnt in kcal heart rate (when using the hand sensors or a chest strap) incline in % Motor output: 3.5 HP continuous output (AC motor) Speed range: 0.5 - 24 km/h Speed hot keys:...

  • Page 8: Personal Safety

    Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ड ATTENTION Do not insert any objects of any kind into the openings of the device. T10.3 Pro...

  • Page 9: Electrical Safety

    Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠...

  • Page 10: Set-Up Place

    10°C and 35°C). The equipment should not be used outdoors or in rooms with high humidity (over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. T10.3 Pro...

  • Page 11: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.

  • Page 12: Scope Of Delivery

    In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠ If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. 105L 105R STEP1 KH-264D2 STEP3 STEP2 11 M5*0.8*15L 4PCS STEP4 11 M5*0.8*15L 2PCS (mm) T10.3 Pro...

  • Page 13: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fi t properly. Then tighten the screws using the tool only when you are instructed to do so.
  • Page 14 Connect the two cables (120 and 121) with one another. ड ATTENTION Be careful not to pinch the cables in the following step. Fix the handlebar (4) to the two handlebar posts (2 and 3) with four allen screws (91). M10x1.5x45L 105R 105L Step2 T10.3 Pro...
  • Page 15 Step 3: Assembly of the console Fix the supporting tube (7) to the handlebar (4) with two allen bolts (142), two spring washers (143) and two fl at washers (27). Connect the cables (93, 98, 118 and 120) with their counterparts of the console (84). ड...
  • Page 16 Fix the covers (8L and 8R) to the main frame (1) by pressing the lugs on the inside of the covers into the corresponding drill holes of the main frame until they engange audibly. Finally fi x the covers (8L and 8R) to the handlebar posts (2 and 3) with two cross bolts (11). M5x0.8x15L Step4 T10.3 Pro...
  • Page 17 Step 5: Alignment of the feet If the floor is uneven, you can stabilize the treadmill by turning the two setting screws under the main frame. Lift the treadmill on the desired side and rotate the setting screws under the main frame.
  • Page 18 Return to the settings. Tap "System". Tap "Start" to update the software. Do not use or switch off the treadmill during the update. Check whether another update is available and carry it out as described above at regular intervals. T10.3 Pro...

  • Page 19: Operating Instructions

    OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit.

  • Page 20: Button Functions

    With this button you can start the cool down phase at any time. Speed and incline will be reduced until the treadmill has come to a stop and has returned to its original position. ENTER With this button you confirm your entries. T10.3 Pro...

  • Page 21: Fitness Programmes

    LED MODE With this button you enter the LED settings. Running Mode: In this mode, the LED lights glow in different colours depending on the speed level: 0-6 KPM - Yellow, 6.1-12 KPM - Green, >12 KPM - Red Neutral Mode: In this mode, the LED lights glow in a neutral white colour. Multi Color Mode: Here you can choose the colour yourself.

  • Page 22: Manual Programme

    4.1. Press the STOP button again to end your training. Press the STOP button one more time to return to the main menu. 4.2. Press the START button to continue with your training. → Upon completion of the programme the console will start the cool down phase automatically. T10.3 Pro...

  • Page 23: Pre-Set Programmes

    3.3.4 Pre-set programmes When you are in the main menu, use the SPEED- or INCLINE buttons or the switches on the handrails to select the pre-set programmes (PROGRAM). Confi rm with the ENTER button. Use the SPEED- or INCLINE buttons or the switches on the handrails to set your desired training time, distance or calories.
  • Page 24 T10.3 Pro...

  • Page 25: User-Defined Programmes

    3.3.5 User-defined programmes When you are in the main menu, use the SPEED- or INCLINE buttons or the switches on the handrails to select the user-defined programmes (USER). Confirm with the ENTER button. Use the SPEED- or INCLINE buttons or the switches on the handrails to choose one of the four user profiles (U1-U4).

  • Page 26: Heart Rate-Oriented Programmes

    6.1. Press the STOP button again to end your training. Press the STOP button one more time to return to the main menu. 6.2. Press the START button to continue with your training. → Upon completion of the programme the console will start the cool down phase automatically. T10.3 Pro...

  • Page 27: Training Programme

    3.3.7 Training programme In this programme you are able to set a specific distance that must be covered in a fixed time. When you are in the main menu, use the SPEED- or INCLINE buttons or the switches on the handrails to select the training programme (TRAINING).

  • Page 28: Body Fat Test

    To do this, please follow the instructions given in the app. The console will be switched off as soon as the treadmill is connected with the app. When the connection is cut, the console will turn on again. T10.3 Pro...
  • Page 29 You will fi nd the fi tness apps in the app stores of Google or Apple. There you will fi nd the apps „Kinomap“ or „iconsole3“. Please note that these apps are produced by an external manufacturer. Sport-Tiedje does not take any responsibility regarding the availability, functionality or contents of these programmes.

  • Page 30: Storage And Transport

    After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed. Select the new location by following the instructions in the section 1.4 of this manual. T10.3 Pro...

  • Page 31: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.

  • Page 32: Care And Maintenance

    Then observe the mat for about 30 seconds, as the change is not immediately visible. Repeat this procedure until the running mat is straight again. If the running mat cannot be adjusted, please contact your contract partner. T10.3 Pro...

  • Page 33: Re-Tensioning The Running Mat

    5.3.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment.

  • Page 34: Maintenance And Inspection Calendar

    The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. T10.3 Pro...

  • Page 35: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more effi cient and pleasant, we recommend that you add suiting accessories to your fi tness equipment. This could be a fl oor mat, for example, which makes your fi tness equipment stand more securely and also protects the fl oor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.

  • Page 36: Ordering Spare Parts

    Enter the serial number in the appropriate field. Model no./Modell Nr.: Standard/Norm: Maximum weight/max. Benutzergewicht: Class/Klasse: Date/Datum: Sport-Tiedje GmbH, Flensburger Str. 55, 24837 Schleswig MADE IN Serial nº.: Serial number: Brand / Category: Taurus / treadmill Model Name: T10.3PRO Article Number: TF-T10.3PRO-3 T10.3 Pro...

  • Page 37: Parts List

    Parts List Name Supplier Parts No. Specification Qty. Main frame 264A1-3-1000-J0 Left handlebar post 264A1-3-1300-J0 Right handlebar post 264A1-3-1400-J0 Handlebar set 264A1-3-1500-J1 Front handlebar set 264A1-3-1550-J0 Stabilizer 26200-3-1600-J1 Computer supporting tube 264A1-3-2000-J0 Lower cover for handlebar post(- 264A1-6-1371-B0 520.7*225.6*52.3 left) Lower cover for handlebar 264A1-6-1471-B0 520.7*225.6*52.3...
  • Page 38 55105-1-1208-DA D12*D5.2*0.8T Nylon nut 55205-1-2005-DA M5*0.8*5T Nylon nut 55205-1-2005-DA M5*0.8*5T Lower motor cover 264A1-6-2402-B0 812.5*237.2*180.6 Allen bolt 54010-8-0050-C4 M10*1.5*50L Plastic flat washer 55110-1-2404-BF D10*D24*0.4T Incline 26200-6-1975-02 JS19-B Allen bolt 54010-8-0065-C4 M10*1.5*65L Wheel 26200-6-1087-B0 D82*35L Allen bolt 50308-5-0020-UF0 M8*1.25*20L T10.3 Pro...
  • Page 39 Flat washer 55108-1-2115-FA D21*D8.5*1.5T End cap 55310-2-2550-B8 25*50*14,match 2.0T tube Axle 26200-6-1673-N0 D18.7*41L Nylon washer 55121-1-3730-0F D21*D37*3T Flat washer 55108-1-2520-FA D25xD8.5x2T Buffer 55308-2-0010-B3 D26*10*M8*1.25 Upper fixing plate for handle pulse 737L6-6-2491-B0 40*15.2,with LOGO Allen bolt 50308-5-0050-F3 M8*1.25*50L Allen bolt 50308-5-0055-F3 M8*1.25*55L Handle pulse sensor 737L6-6-2478-00...
  • Page 40 261D1-6-1067-00 Inductance 261A2-6-1066-00 Electric cable 26100-6-1775-02 1700L Overlay(LED) 264A1-6-1706-B0 491*296*20 Allen cross spanner 58030-6-1051-N0 M6*130L Allen spanner 58030-6-1052-N0 M8*120L Speaker cover 264A1-6-1762-B0 USB module 264D3-6-1723-00 PA-AB00321-K1 CSK cross self-tapping screw 51004-2-0010-N0 ST4*1.41*10L Cross round-head self-tapping 54723-2-0008-C0 ST2.3*8L screw T10.3 Pro...
  • Page 41 Button PCB board 264A1-6-1759-00 Inverter 262A3-6-1783-00 RM6T6-2003E1 neutral wire 450L 261A2-6-1791-00 450L Pad of tablet support 264A1-6-1777-B0 409*15*2T Cross tube of computer suppor- 261D8-6-2001-J0 10*20*1.5T*320L ting tube Cross bolt 52606-2-0015-F0 M6*1*15L Allen bolt 50308-5-0015-F0 M8*1.25*15L Spring washer 55108-2-1520-FA D15.4xD8.2x2T 144L Left speaker 261D8-6-1722-01 B00202050,4Ω...

  • Page 42: Exploded Drawing

    Exploded Drawing T10.3 Pro...

  • Page 43: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 44 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. T10.3 Pro...

  • Page 45: Contact

    CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
  • Page 46 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! T10.3 Pro...
  • Page 47 Notes...
  • Page 48 Treadmill T10.3 Pro...
