Taurus TF-EXT-HR Operating Instructions

Operating Instructions
Art. No. TF-EXT-HR
GENERAL SAFETY INSTRUCTIONS
Personal Safety
⚠ DANGER
+ Before you start using the equipment, you should consult your
physician that this type of exercise is suitable for you from a health
perspective.
+ Note that excessive training can seriously endanger your health. If
you notice any signs of weakness, nausea, dizziness, pain, shortness of
breath, or other abnormal symptoms, stop exercising immediately and
seek advice from your doctor if necessary.
⚠ WARNING
+ This equipment may not be used by children under 14 years.
+ Children should not be allowed unsupervised access to the equipment
+ Persons with disabilities must have a medical license and must be
under strict observation when using the equipment.
+ The equipment is strictly for use by one person at a time.
⚠
CAUTION
+ Make sure that nobody is within the range of motion of the equipment
during training so as not to endanger you or other persons.
ATTENTION
+ Do not insert any objects of any kind into the openings of the device.
Set-Up Place
⚠ WARNING
+ Do not place the equipment in main corridors or escape routes.
+ To prevent fi re, do not place the device near or in areas with high heat
(e.g. near a heater).
⚠ CAUTION
+ Choose the set-up place so that there is suffi cient space around the
product.
ATTENTION
+ The device may only be used in one building, in suffi ciently tempered
and dry rooms (ambient temperatures between 10°C and 35°C).
The equipment should not be used outdoors or in rooms with high
humidity (over 70%) like swimming pools.

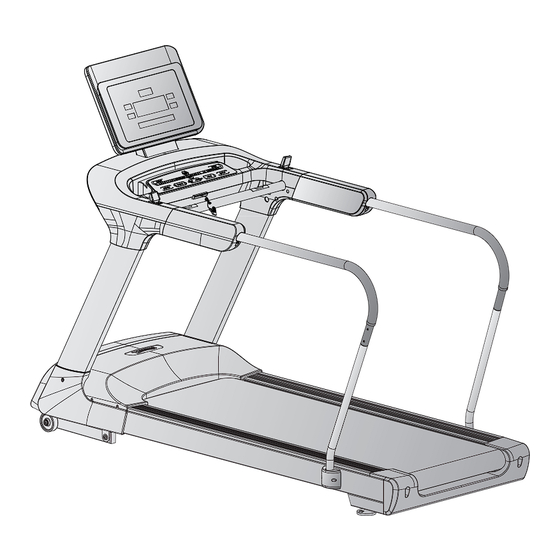

These handrails are an optional accessory for the Taurus treadmills
T9.9, T9.9 Black Edition, T.9.9 Touch, T10.3 Pro und T10.3 HD Pro.
All instructions regarding the proper use, safety instructions,
technical data and service instructions you will fi nd in the manuals
of the treadmills.
FSCSTTFEXTHR.01.01
Technical data
Article weight (gross, incl. packaging): 7.275 kg
Article weight (net, without packaging): 6.285 kg
Packaging dimensions (L x W x H) approx.: 103 cm x 36 cm x 6 cm
Parts List
No. Name
1L Left Extended Handrail
1R Right Extended Handrail
2L Left Handrail Support Tube
2R Right Handrail Support Tube
3 Inner Hex Screw
4 Inner Hex Screw
5 Oval End Cap of Handlebar (with Hole)
6 Foam
7 Flat End Fastening Hex Screw
8 Lower Protective Cover
9 Roundhead Cross Screw
10 Inner Hex Spanner (M4)
11 Inner Hex Spanner (M5)
12 Inner Hex Cross Spanner (M6)
Scope of Delivery
1L 1R
5
4
x2 x1
8 3
2L 2R
7
9
x2
10 11
x1 x1 x2
Assembly
Step 1
Remove the end caps of the handrails and
loosen the eight screws on the main frame.
TF-EXT-HR
Qty.
1
1
1
1
4
4
2
2
4
2
4
1
1
1
x1
12
x2 x2
