Assembly and Operating Instructions
max. 150 kg
~ 30 - 60 Min.
Transporation Wheel
135 kg
L 172 | W 81 | H 157
TFRUNX.02.02
RUN
X

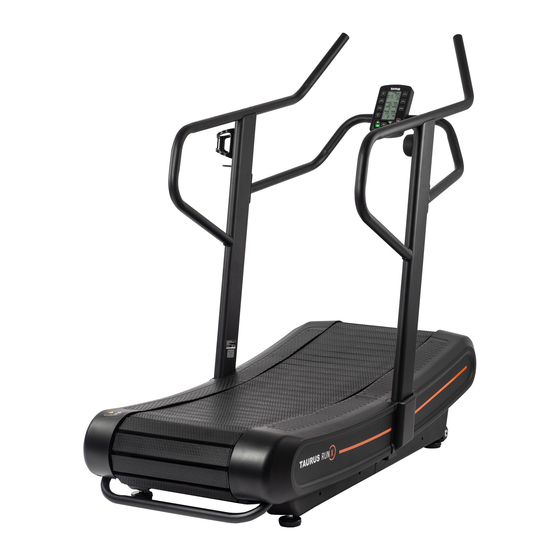

Treadmill
TF-RUN-X-2
TF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-RUN-X-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Taurus TF-RUN-X-2

  • Page 1 Assembly and Operating Instructions max. 150 kg ~ 30 - 60 Min. Transporation Wheel 135 kg L 172 | W 81 | H 157 TFRUNX.02.02 Treadmill TF-RUN-X-2...
  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions First Steps Pause programme - Pause mode End programme - stop mode Programmes 3.6.1 Quick Start Programme 3.6.2 Interval 10/20 und Interval 20/10 3.6.3 Interval Custom 3.6.4 Target Time, Target Distance and Target Calories 3.6.5 Target HR...
  • Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing_ WARRANTY CONTACT...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7: General Information

    GENERAL INFORMATION Technical Data LCD - Anzeige von: Time Speed Distance Calories Heart rate (when using a chest strap) Watt Pace Training programmes overall: Quick Start Programme: Interval programmes: 3 (1 customized) Target programmes: Heart rate controlled programmes: Weight and dimensions: Article weight (gross, incl.
  • Page 8: Personal Safety

    Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9: Set-Up Place

    Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ The training room should be well ventilated during training and not be exposed to any draughts. Choose the place in which to set up the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment.
  • Page 10: Assembly

    ASSEMBLY General Instructions DANGER ⚠ Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 11: Scope Of Delivery

    Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠...
  • Page 13: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Mounting the console Connect the cable of the console (55) with the corresponding counterpart of the console frame...
  • Page 14 Step 4: Assembly of the handrails Attach one handrail (6 & 105) to each of the two upright posts (2 & 3) with two M8*45 bolts (101) and one M8*15 bolt (66) each. Step 5: Mounting the Console Unit Connect the two cables of the right upright post (2) to their corresponding counterparts of the console frame.
  • Page 15 Step 7: Assembly of the bottle holder Attach the bottle holder (110) to the left upright post (2) with two M4*16 screws (111). Step 8: Alignment of the feet If the floor is uneven, you can stabilize the treadmill by turning the setting screws under the main frame.
  • Page 16: Operating Instructions

    OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Bitte bedenken Sie, dass die Geräuschemission unter Belastung höher ist als ohne Last. Console Display...
  • Page 17: Button Functions

    Display Description Display of the training time TIME Display range: 00:00-1:59:00 Setting range: 1:00-1:59:00 Display of the training distance DISTANCE Display range: 0.5-100 Setting range: 0,5-100 Display of calories burned CALROIES Display range: 0-2000 Setting range: 1-2000 Heart rate display (when using a chest strap) PULSE Display range: 30-230 Setting range: 30-230...
  • Page 18: First Steps

    First Steps As soon as the console is switched on, the display lights up completely (Fig. 1) and a long signal sounds. The console then enters Standby mode and the symbols for Interval 10/20, Interval 20/10, DISTANCE Target Program and PULSE (heart rate) are displayed in sequence (fig. 2-5). NOTICE If the console does not receive any input or signal within 4 minutes, the console will go into sleep mode.
  • Page 19: End Programme - Stop Mode

    End programme - stop mode To end the programme, press the STOP button once. While pressing, a signal sounds for 0.5 seconds and the console enters stop mode. After 0.5 seconds, the display will first show the DISTANCE, TIME and CALORIES values of the training session (Fig.
  • Page 20: Programmes

    Programmes A total of eight programmes are available: Quick Start Program: Interval programs: Target programs: Heart rate controlled program: 3.6.1 Quick Start Programme ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate.
  • Page 21: Interval Custom

    3.6.3 Interval Custom ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. NOTICE Heart rate measurement is only possible with a compatible chest strap.
  • Page 22: Target Hr

    3.6.5 Target HR ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. NOTICE Heart rate measurement is only possible with a compatible chest strap.
  • Page 23: Storage And Transport

    STORAGE AND TRANSPORT General Instructions WARNING ⚠ The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
  • Page 24: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions WARNING ⚠ Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
  • Page 25: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Display console Plastic covers Screws and cable connections...
  • Page 26: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape.
  • Page 27: Ordering Spare Parts

    It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / treadmill Model Name: Run X Article Number: TF-RUN-X-2...
  • Page 28: Parts List

    Parts List Name Qty. No. Name Qty. Main frame Driving wheel plate -Aluminum Upright post - right side Aluminum slat fixing belt Upright post - left side EVA mat - t2.0×50×3600 Console frame Front plastic side cover - right side Rear main frame lifting handle Front plastic side cover - left side Handrail - right side...
  • Page 29 Screw fixing buckle Hex head locknut M10 Screw fixing plate Flat washer Φ10 T shape siderail guider Allen countersunk head full thread screw M6×15 Allen head C.K.S full thread bolt - M8*15 Hexagon head full thread bolt M8×30 Allen head C.K.S full thread bolt - M8*20 Hexagon nut M8 Hexagon head half thread bolt -...
  • Page 30: Exploded Drawing

    Exploded Drawing_...
  • Page 31: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 32 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
  • Page 33: Contact

    CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
