Summary of Contents for Taurus T9.9 Black Edition

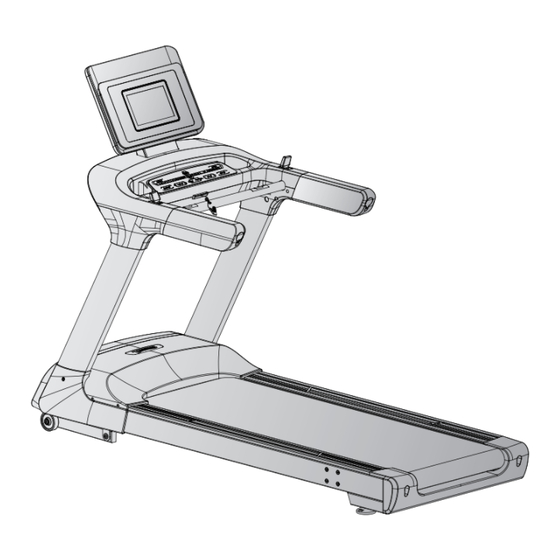

- Page 1 Assembly and Operating Instructions max. 190 kg ~ 60 Min. 33 kg L 218 | B 85 | H 159 CVTM2492.03.10 SKU: CVTM2492 Treadmill T9.9 Black Edition...
- Page 2 T9.9 Black Edition...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button functions Training Programmes 3.3.1 Quick Start 3.3.2 Target Programmes 3.3.3 Low Speed Programme 3.3.4 Pre-set Programmes 3.3.5 User-defined Programmes 3.3.6 Heart Rate-oriented Programmes Fitness Test Media... - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT T9.9 Black Edition...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. T9.9 Black Edition...
-
Page 7: General Information
GENERAL INFORMATION Technical Data TFT display of speed in km/h training time in min training distance in km calories burnt in kcal heart rate (when using the hand sensors or a chest strap) incline in % Motor output: 3.5 HP continuous output (DC motor) Speed range: 0.5 - 22 km/h Speed hot keys:... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. T9.9 Black Edition... -
Page 9: Electrical Safety
Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Set-Up Place
(over 70%) like swimming pools. A floor protective mat/equipment underlay can help to protect high-quality floor coverings (parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight unevenness. Recommended free zone: T9.9 Black Edition... -
Page 11: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. WARNING ⚠ Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 12: Scope Of Delivery
In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠ If parts of the scope of delivery are missing or damaged, the assembly must not be carried out. 105L 105R STEP1 KH-264D2 STEP3 STEP2 11 M5*0.8*15L 4PCS STEP4 11 M5*0.8*15L 2PCS (mm) T9.9 Black Edition... -
Page 13: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g. - Page 14 Connect the two cables (120 and 121) with one another. ࣑ ATTENTION Be careful not to pinch the cables in the following step. Fix the handlebar (4) to the two handlebar posts (2 and 3) with four allen screws (91). M10x1.5x45L 105R 105L Step2 T9.9 Black Edition...
- Page 15 Step 3: Assembly of the Console Fix the supporting tube (7) to the handlebar (4) with two allen bolts (142), two spring washers (143) and two flat washers (27). Connect the cables (93, 98, 118 and 120) with their counterparts of the console (84). ࣑...
- Page 16 Fix the covers (8L and 8R) to the main frame (1) by pressing the lugs on the inside of the covers into the corresponding drill holes of the main frame until they engange audibly. Finally fix the covers (8L and 8R) to the handlebar posts (2 and 3) with two cross bolts (11). M5x0.8x15L Step4 T9.9 Black Edition...
- Page 17 Step 5: Alignment of the Feet If the floor is uneven, you can stabilize the treadmill by turning the two setting screws under the main frame. Lift the treadmill on the desired side and rotate the setting screws under the main frame.
- Page 18 The scope of delivery contains a buffer strap. This can optional be stuck between your device and the console cover if there is knocking sound during workout. The buffer strap has to be stuck onto the top of the console cover. Down T9.9 Black Edition...
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit. -
Page 20: Console Display
7 times as much oxygen than when in rest. Training between three to six METs is seen as moderate physical activity. Training at more than six METs is seen as strong physical activity. Speed Indicates the current speed between 0.5 - 22 km/h. T9.9 Black Edition... -
Page 21: Button Functions
Button functions START With this button you can start a training programme. When you are in the main menu, you can start your training via quick start. When your training is paused, you can continue with your training by pressing this button. -
Page 22: Training Programmes
5.1. Press the STOP button again to end your training and an overview of the collected training data will be displayed. 5.2. Press the START button to continue with your training. Upon completion of the programme the console will start the cool down phase automatically. T9.9 Black Edition... -
Page 23: Low Speed Programme
3.3.3 Low Speed Programme Tap on „LOW SPEED“ in the main menu. NOTICE The maximum speed is limited to 4 km/h in this programme. Press the START button to start the programme. The speed and the incline can be adjusted manually during your training. Press the STOP button to pause your training. - Page 24 8 10 8 10 10 5 SPD 3 6 10 7 3 10 10 5 INC 1 SPD 3 3 10 10 7 7 10 7 10 7 INC 1 SPD 3 INC 2 P22 SPD 2 T9.9 Black Edition...
-
Page 25: User-Defined Programmes
3.3.5 User-defined Programmes Tap on „USER PROGRAM“ in the main menu. Choose one of the four user profiles (U1-U4). NOTICE The chosen user profile will be displayed on the upper border of the screen. The name of the user profile can be changed. To do this, simply tap on the user profile and type in the desired name. -
Page 26: Heart Rate-Oriented Programmes
6.1. Press the STOP-button again to end your training and an overview of the collected training data will be displayed. 6.2. Press the START-button to continue with your training. Upon completion of the programme the console will start the cool down phase automatically. T9.9 Black Edition... -
Page 27: Fitness Test
Fitness Test The fitness test consists of two phases. One is the warm up phase and the other is the actual fitness test. We recommend a chest strap for this test. NOTICE The speed will be adjusted automatically in dependence of your heart rate. The incline can not be adjusted. -
Page 28: Media
Under "SETTINGS" in the main menu, you can make your system settings. This includes: Language, screen brightness and volume. Bluetooth: You can connect your mobile device and bluetooth speakers with the console. Wireless: Here you can connect the console with the internet. T9.9 Black Edition... -
Page 29: Bluetooth And Fitness Apps
Bluetooth and Fitness Apps This console is equipped with a bluetooth interface. To use training apps you will have to connect your treadmill with your mobile device (tablet or smart phone). To do this, please activate the bluetooth function on your mobile device. Now choose your treadmill. Please take note that your mobile device needs to be compatible with the bluetooth interface of the treadmill (bluetooth 4.0). -
Page 30: Storage And Transport
After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed. Select the new location by following the instructions in the section 1.4 of this manual. T9.9 Black Edition... -
Page 31: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 32: Care And Maintenance
Then observe the mat for about 30 seconds, as the change is not immediately visible. Repeat this procedure until the running mat is straight again. If the running mat cannot be adjusted, please contact your contract partner. T9.9 Black Edition... -
Page 33: Re-Tensioning The Running Mat
5.3.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment. -
Page 34: Maintenance And Inspection Calendar
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. T9.9 Black Edition... -
Page 35: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For treadmills this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat or silicone spray to keep moving parts in good shape and lubricate the running mat. -
Page 36: Ordering Spare Parts
The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / treadmill Model Name: T9.9 Light Commercial Treadmill SKU: CVTM2492 T9.9 Black Edition... -
Page 37: Parts List
Parts List Name Supplier Parts No. Specification Qty. Main frame 264D2-3-1000-J1 Left handlebar post 264A1-3-1300-J0 Right handlebar post 264A1-3-1400-J0 Handlebar set 264A1-3-1500-J1 Front handlebar set 264A1-3-1550-J0 Stabilizer 26200-3-1600-J1 Computer supporting tube 264A1-3-2000-J0 Lower cover for handlebar 264A1-6-1371-B0 520.7*225.6*52.3 post(left) Lower cover for handlebar 264A1-6-1471-B0 520.7*225.6*52.3 post(right) - Page 38 Power supplier board 26100-6-2414-B0 130*45*6T Switching mode power supplier 261D8-6-2411-00 Buffer 55308-4-0020-G9 D10.5*20L overcurrent protector 261D1-6-2412-00 Flat washer 55105-1-1208-DA D12*D5.2*0.8T Nylon nut 55205-1-2005-DA M5*0.8*5T Lower motor cover 264A1-6-2402-B0 812.5*237.2*180.6 Allen bolt 54010-8-0050-C4 M10*1.5*50L Plastic flat washer 55110-1-2404-BF D10*D24*0.4T T9.9 Black Edition...
- Page 39 Incline 264D2-6-1975-02 JS19-B Allen bolt 54010-8-0065-C4 M10*1.5*65L Wheel 26200-6-1087-B0 D82*35L Allen bolt 50308-5-0020-UF0 M8*1.25*20L Flat washer 55108-1-2115-FA D21*D8.5*1.5T End cap 55310-2-2550-B8 25*50*14,for 2.0 T tube Axle 26200-6-1673-N0 D18.7*41L Nylon washer 55121-1-3730-0F D21*D37*3T Flat washer 55108-1-2520-FA D25xD8.5x2T Buffer 55308-2-0010-B3 D26*10*M8*1.25 Upper fixing plate for handle 737L6-6-2491-B0 40*15.2 pulse...
- Page 40 26100-6-1079-00 D31*16 Motor decorative cover 264A1-6-2403-Aa0 727.1*40.8*50.1 Upper cable of trigger 261D8-6-1589-01 500L Sensor cable 26100-6-1795-00 GS003-P2.5F-1200mm- 26AWG Upper computer cable 264D2-6-1771-00 Middle computer cable 264D2-6-1772-00 1100 Lower computer cable 264D2-6-1773-00 Button plate 264A1-6-1756-B0 468*105.4*13.3 Filter 261D1-6-1067-00 T9.9 Black Edition...
- Page 41 Inductance 261A2-6-1066-00 Electric cable 26100-6-1775-02 1700L Overlay 264D2-6-1706-B0 399*248*16 Screen plate 261D8-6-1757-B0 383.5*238*18 Allen cross spanner 58030-6-1051-N0 M6*130L Allen spanner 58030-6-1052-N0 M8*120L Speaker cover 264A1-6-1762-B0 USB module 261D8-6-1723-00 PA-AC00380-K2 CSK cross self-tapping screw 51004-2-0010-N0 ST4*1.41*10L Cross round-head self-tapping 54723-2-0008-C0 ST2.3*8L screw Button PCB board 264A1-6-1759-00...
-
Page 42: Exploded Drawing
Exploded Drawing T9.9 Black Edition... -
Page 43: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 44 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. T9.9 Black Edition...
-
Page 45: Contact
CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��... - Page 46 Visit us also on our social media platforms or our blog! T9.9 Black Edition...
- Page 47 Notes...
- Page 48 Notes T9.9 Black Edition...
- Page 50 Treadmill T9.9 Black Edition...
