Assembly and Operating Instructions
max. 200 kg
~ 60 Min.
144 kg
L 215 | W 85 | H 157
CVTM2517.03.04
SKU: CVTM2517
TF-

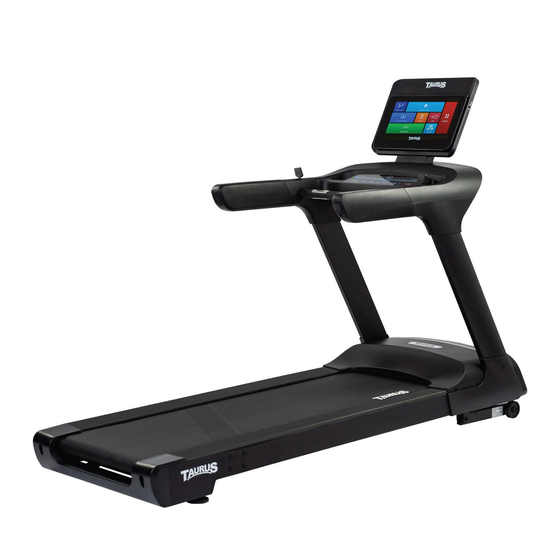

Treadmill
T10.3 Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVTM2517 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Taurus CVTM2517

  • Page 1 Assembly and Operating Instructions max. 200 kg ~ 60 Min. 144 kg L 215 | W 85 | H 157 CVTM2517.03.04 SKU: CVTM2517 Treadmill T10.3 Pro...
  • Page 2 T10.3 Pro...
  • Page 3: Table Of Contents

    Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Function Programmes 3.3.1 Quick Start Programme 3.3.2 Target programmes 3.3.3 Low-Speed Programme 3.3.4 Pre-Set Programmes 3.3.5 Pace Programme 3.3.6 User-Defined Programmes 3.3.7 Heart Rate Controlled Programmes Fitness test...
  • Page 4 DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT T10.3 Pro...
  • Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
  • Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
  • Page 7: General Information

    GENERAL INFORMATION Technical Data TFT - Display of Speed in km/h Training time in min Training distance in km Calories in kcal Heart rate (when using hand pulse sensors or chest strap) Incline in % Metabolic equivalent Motor output: 3.5 HP continuous (AC motor) Speed range: 0.5 - 24 km/h (adjustable in steps of 0.1 km/h) Hot keys (Speed):...
  • Page 8: Personal Safety

    Personal Safety DANGER ⚠ Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year.
  • Page 9: Electrical Safety

    Electrical Safety DANGER ⚠ In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠...
  • Page 10: Set-Up Place

    Set-Up Place WARNING ⚠ Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Make sure that there is a safety area behind the treadmill with a length of at least 2 m and a width at least equal to the width of the treadmill. The training room should be well ventilated during training and not be exposed to any draughts.
  • Page 11: Assembly

    ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries.
  • Page 12: Scope Of Delivery

    Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. CAUTION ⚠...
  • Page 13: Assembly

    Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. If you have difficulty recognising the graphics, we recommend that you open and/or download the PDF instructions stored in the webshop on your end device (e.g.
  • Page 14 Step 2: Assembly of the handlebar Slide the two covers (105L and 105L) downwards. Connect the two cables (120 and 121, 156 and 157) with one another. ࣑ ATTENTION Be careful not to pinch the cables in the following step. Fix the handlebar (4) to the two handlebar posts (2 and 3) with four allen screws (91).
  • Page 15 Step 3: Assembly of the console Fix the supporting tube (7) to the handlebar (4) with two allen bolts (142), two spring washers (143) and two flat washers (27). Connect the cables (93, 98, 118, 156 and 120) with their counterparts of the console (84). ࣑...
  • Page 16 Step 4: Finish the assembly Tighten the six allen bolts (10). Fix the covers (8L and 8R) to the main frame (1) by pressing the lugs on the inside of the covers into the corresponding drill holes of the main frame until they engange audibly. Finally fix the covers (8L and 8R) to the handlebar posts (2 and 3) with two cross bolts (11).
  • Page 17 Step 5: Alignment of the feet If the floor is uneven, you can stabilize the treadmill by turning the two setting screws under the main frame. Lift the treadmill on the desired side and rotate the setting screws under the main frame. Rotate the screws clockwise in order to remove them and to raise the running surface.
  • Page 18 IMPORTANT NOTICE To ensure that your treadmill has the latest software version, please perform an update before using it for the first time. Proceed as follows: Tap "Settings" in the lower right corner of the screen. Tap "Wireless" and connect your treadmill to the Internet. Return to the settings.
  • Page 19: Operating Instructions

    OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. SAFETY KEY WARNING ⚠ For your safety, the device is equipped with an EMERGENCY STOP function. The equipment can only be operated if the safety key is correctly attached to the contact point of the cockpit.
  • Page 20 DISPLAY DESCRIPTION Dispay of the current incline in % Incline Display range: 0–15 Display of the training time in minutes Time Display range: 00:00–99:59 Display of the training distance in km Distance Display range: 0.0–9999 Display of the calories in kcal Calories Display range: 0–999 Display of the current heart rate...
  • Page 21: Button Function

    Button Function BUTTON DESCRIPTION With this button you can start a training programme. When you are in the main menu, you can start your training via quick start. START When your training is paused, you can continue with your training by pressing this button.
  • Page 22: Programmes

    With this button you can turn the LED mode on or off. Running Mode: In this mode, the LED lights glow in different colours depending LED MODE on the speed level: 0-6 KPH - Yellow, 6.1-12 KPH - Green, >12 KPH - Red PROGRAM In the main menu, this button will take you directly to the pre-set programmes.
  • Page 23: Low-Speed Programme

    3.3.3 Low-Speed Programme Tap on “LOW SPEED” on the main menu. Choose either time, distance or calories as your target unit. NOTICE You can only choose one unit. Set a value for your desired target unit. Press START to start the programme. The programme starts with a speed of 0.5 km/h.
  • Page 24 Setting time / 30 = time for each section Programme SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
  • Page 25 Setting time / 30 = time for each section Programme SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
  • Page 26 Setting time / 30 = time for each section Programme SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE T10.3 Pro...
  • Page 27 Setting time / 30 = time for each section Programme SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
  • Page 28: Pace Programme

    3.3.5 Pace Programme Tap on “PACE” in the main menu. Set the time and distance. Press START to start the programme. The speed and the incline can be adjusted manually during your training. Press STOP to pause your training. The speed will be reduced slowly until the treadmill comes to a stop. In case an incline level has been set, the treadmill will remain in that position.
  • Page 29: Heart Rate Controlled Programmes

    3.3.7 Heart Rate Controlled Programmes ⚠ WARNING Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. There are three different heart rate-oriented programmes.
  • Page 30: Fitness Test

    Fitness test The fitness test consists of two phases. One is the warm up phase and the other is the actual fitness test. We recommend a chest strap for this test. NOTE The speed will be adjusted automatically in dependence of your heart rate. The incline can not be adjusted.
  • Page 31: Media

    Media Here you will find many different apps like YouTube, Twitter, Facebook or Instagram. IMPORTANT NOTE To make sure the preinstalled apps are working correctly, you will have to update them from time to time. The apps that need to be updated will give you a message. To update the app, you need to have a google account.
  • Page 32: Bluetooth And Fitness Apps

    Bluetooth and Fitness Apps This console is equipped with a bluetooth interface. Please take note that your mobile device needs to be compatible with the bluetooth interface of the treadmill (bluetooth 4.0). To use training apps you will have to activate the bluetooth function on your mobile device (tablet or smart phone) and start the fitness app.
  • Page 33: Storage And Transport

    STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑...
  • Page 34: Troubleshooting, Care And Maintenance

    TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner.
  • Page 35: Care And Maintenance

    Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insufficient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals.
  • Page 36: Re-Tensioning The Running Mat

    5.3.2 Re-tensioning the Running Mat If the running mat slips over the rollers during operation (if this is the case, there is a noticeable jerk during running), the running mat must be re tightened. In most cases, the slipping is caused by stretching of the mat through use. This is perfectly normal. NOTICE Re-tensioning is carried out using the same adjusting screws that are used for adjustment.
  • Page 37: Maintenance And Inspection Calendar

    Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Display console Tension of the running mat Lubrication of the running mat...
  • Page 38: Recommended Accessories

    RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. For treadmills this could for example be a floor mat, which makes your fitness equipment stand more securely and also protects the floor from sweat or silicone spray to keep moving parts in good shape and lubricate the running mat.
  • Page 39: Ordering Spare Parts

    Enter the serial number in the appropriate field. Model no./Modell Nr.: Standard/Norm: Maximum weight/max. Benutzergewicht: Class/Klasse: Date/Datum: Sport-Tiedje GmbH, Flensburger Str. 55, 24837 Schleswig MADE IN Serial nº.: Serial number: Brand / Category: Taurus / treadmill Model Name: T10.3 Pro SKU: CVTM2517...
  • Page 40: Parts List

    Parts List Name Supplier Parts No. Specification Qty. Main frame 264A2-3-1000-J0 Left handlebar post 264A1-3-1300-J1 Right handlebar post 264A1-3-1400-J1 Handlebar set 264A1-3-1500-J2 Front handlebar set 264A1-3-1550-J0 Stabilizer 26200-3-1600-J1 Computer supporting tube 264A1-3-2000-J0 Lower cover for handlebar 264A1-6-1371-B0 520.7*225.6*52.3 post(left) Lower cover for handlebar 264A1-6-1471-B0 520.7*225.6*52.3 post(right)
  • Page 41 Front roller set 26200-3-1100-02 D25*D75*694L Inner hex head screw 54010-5-0045-F4 M10*1.5*45L Multi-groove belt 58004-6-1100-00 250/PJ10 Motor 261A3-6-1085-00 AC3.0HP Nylon nut 55210-1-2010-CA M10*1.5*10T Flat washer 55110-1-2020-CA D20*D11*2T Inner hex head screw 54010-5-0030-C0 M10*1.5*30L Flat washer 551E1-1-2820-NA D28*D14*2T Insulating sleeve(1) 26200-6-1063-B0 D20*D10*8T Motor buffer 26200-6-1093-B0 65*40*5T...
  • Page 42 Nylon washer 55121-1-3730-0F D21*D37*3T Flat washer 55108-1-2520-FA D25xD8.5x2T Buffer 55308-2-0010-B3 D26*10*M8*1.25 Upper fixing plate for handle 737L6-6-2491-B0 40*15.2,W/LOGO pulse Allen bolt 50308-5-0050-F3 M8*1.25*50L Allen bolt 50308-5-0055-F3 M8*1.25*55L Handle pulse sensor 737L6-6-2478-00 100.3*29.5*0.4T Lower fixing plate for handle 737L6-6-2492-B0 40*15.2 pulse Screw 50904-2-0015-F0 ST4x1.41x15L...
  • Page 43 Computer fixing plate 264A1-3-1530-J1 Safety key board 26200-6-1733-B0 74*45*7 Upper cover for handling tube 264A1-6-1576-B0 836*583*159.3 Lower cover for handling tube 264A1-6-1577-B0 836*356.8*193.7 105L Side cover for handling tube(left) 264A1-6-1594-B0 417.2*153.3*78 105R Side cover for handling 264A1-6-1595-B0 417.2*153.3*78 tube(right) 106A Computer back cover 264A1-6-1748-B0 207.3*188*65.5...
  • Page 44 Cross round-head self-tapping 54723-2-0008-C0 ST2.3*8L screw Button PCB board 264A1-6-1759-00 Inverter 262A3-6-1783-00 RM6T6-2003E1 neutral wire 450L 261A2-6-1791-00 450L Pad of tablet support 264A1-6-1777-B0 409*15*2T Cross tube of computer 261D8-6-2001-J0 10*20*1.5T*320L supporting tube Cross bolt 52606-2-0015-F0 M6*1*15L Allen bolt 50308-5-0015-F0 M8*1.25*15L Spring washer 55108-2-1520-FA D15.4xD8.2x2T...
  • Page 45: Exploded Drawing

    Exploded Drawing...
  • Page 46: Warranty

    WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
  • Page 47 Warranty Service Within the warranty period, equipment which develops faults as a result of material or manufacturing defects, will be repaired or replaced at our discretion. Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty.
  • Page 48: Contact

    CONTACT TECHNIK TEKNIK OG SERVICE TECHNIQUE & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 189 530984 +49 4621 4210-945 +49 4621 42 10 933 �� +49 4621 4210-698 �� �� info@fitshop.dk info@fitshop.fr �� technik@sport-tiedje.de ��...
  • Page 49 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA The Sport-Tiedje Group is Europe’s largest http://www.powerhouse-fitness.co.uk/ specialist for home fitness equipment with www.powerhouse-fitness.co.uk/blog/ currently 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. https://www.facebook.com/powerhousefitness.co.uk Powerhouse Fitness is part of the Sport-Tiedje Group.
  • Page 50 Notes T10.3 Pro...
  • Page 52 Treadmill T10.3 Pro...
