Figure 18. Vaportek System - Serial Connection And Monitoring Using Rs422 - Interface With Re-Regulation Function - Veeder-Root VaporTEK Installation, Setup And Troubleshooting Manual

Wiring Schematics
BR1
UNSAFE AREA
+ +
DC
24V
PULS
Power Supply
100W
140 810 856
N L
F1
L N PE M1 M2
M1 M2
L1 N PE
L1 N
230V
MAIN

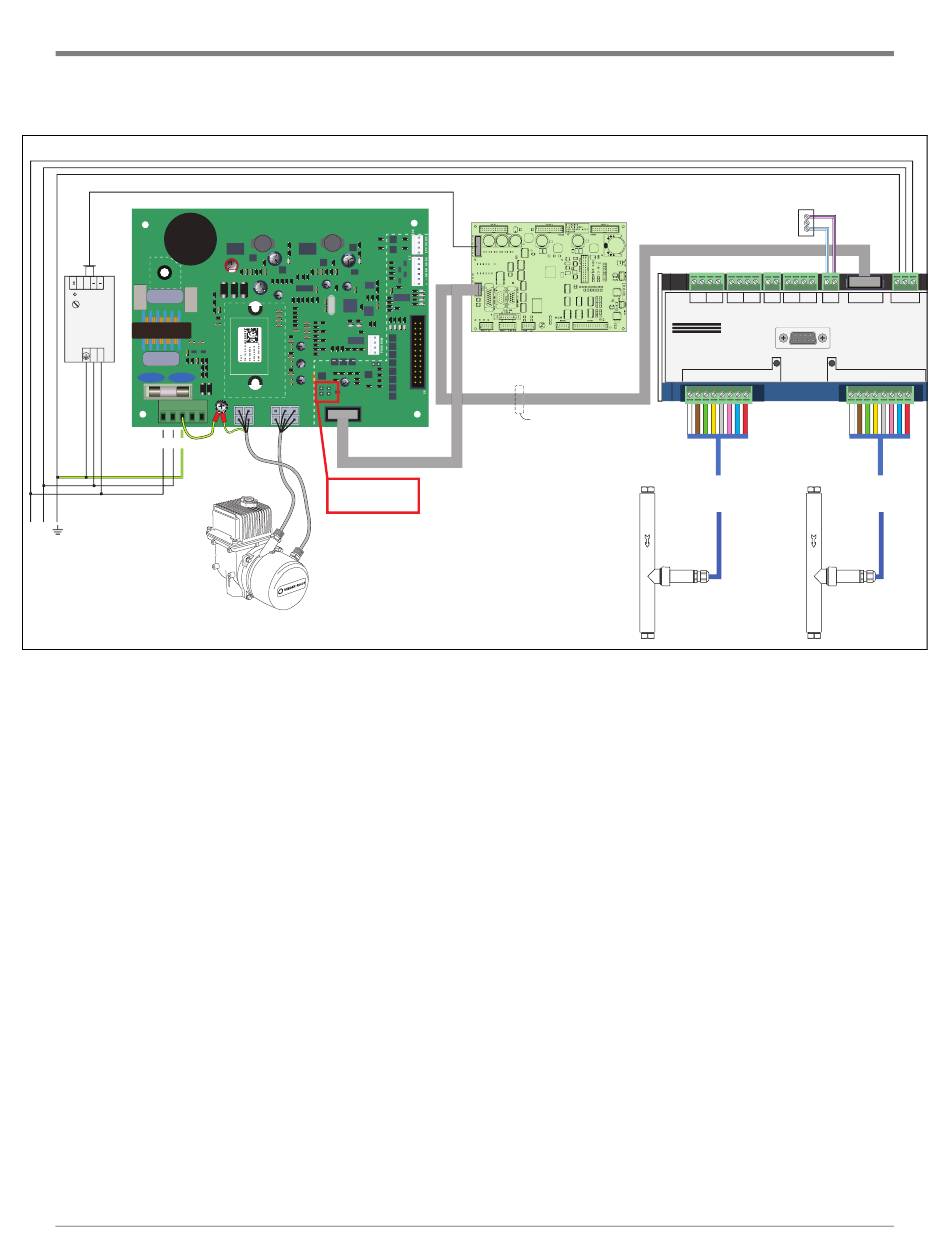

Figure 18. VaporTEK System – Serial Connection And Monitoring Using RS422 – Interface With Re-regulation Function.
6. VaporTEK with low Voltage hook signal with relay switches (see Figure 16)
a. Refer to the dispenser manufacturer's manual to determine the dispenser type (Blended or Multi-product),
the number of available nozzle hooks and where to tap them (Verify the hook signal voltage rating is 220/
240 VAC).
b. Using the 18AWG, 2 conductor cable from the kit, connect each nozzle hook signal on Side A of the
dispenser to one high voltage relay circuit.
c. A High Voltage source (110-230VAC) is connected to the M1 on the VaporTEK Controller through all the
relay circuits on Side A (See Figure 18 for high voltage relay wiring diagrams).
d. Make similar connections on Side B and connect to M2 on the VaporTEK Controller.
