Introduction
This manual contains installation and operation instructions for Veeder-Root's VaporTEK. VaporTEK is a dispenser
based, Stage II vapor recovery system that collects vapor during vehicle fueling and returns vapor to the
underground storage tank (UST). Each VaporTEK system is designed to accommodate two active fueling points
simultaneously.
VaporTEK System Basic Components:
•
VaporTEK Pump
•
VaporTEK-3 Controller Board
VaporTEK-3 Controller Board

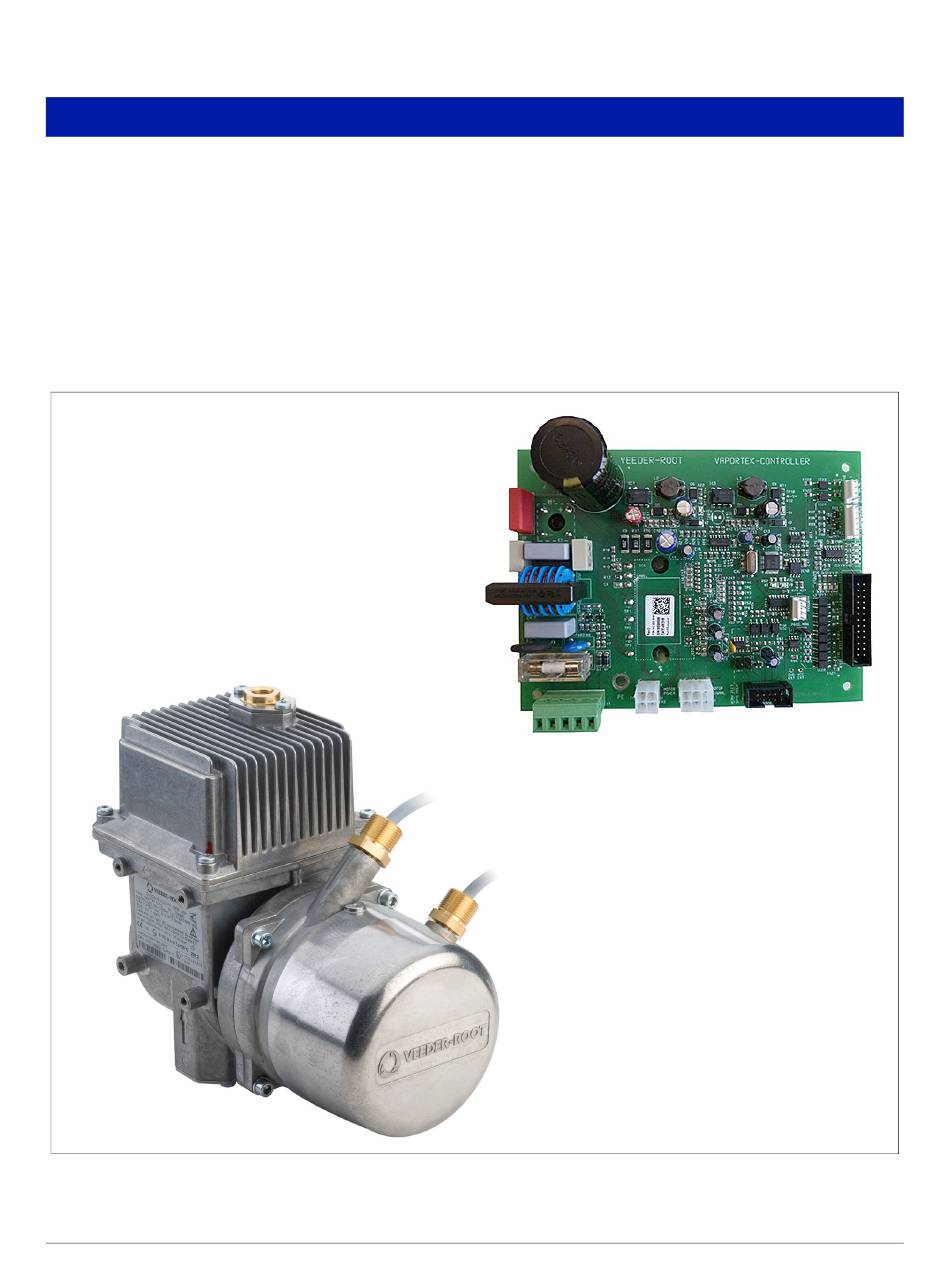

Figure 1. VaporTEK System Basic Components
1
VaporTEK Pump
