Chapter 3 Installation
IMT Transducer Interface Module
The IMT is an interface module that simplifies field wiring to a 1733, 1734, 1743 or 1744.
This module has terminal blocks that connect four C1T transducer cables to a single eight foot
cable. This cable connects the IMT to the module. Figure 3.19 is an outline drawing of the IMT
and cable. The C1T cable wiring diagram is figure 3.15, on page 3-9.
3-12
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
1 2
Module Connector
AMCI Part #: MS-14
Phoenix Part #:
MSTB2.5/14-ST-5.08
17 57 13 2
(Four places)
C4IMT Cable
Pre-assemblied 8 ft. cable
with connectors. The cable
is included with the IMT
module. Ends of the cable
are interchangable.
1 2
3.00"
IMT INTERFACE MODULE
(76.2)
2.500"
TRANSDUCER 2
(63.50)
TRANSDUCER 1
0.17"
(4.3)
0.25"
(6.4)
0.25"
(6.4)
1.80" max. with mating connectors installed.
(45.7)
Additional 1"
1.40" max.
(35.6)
0.44"
(11.2)

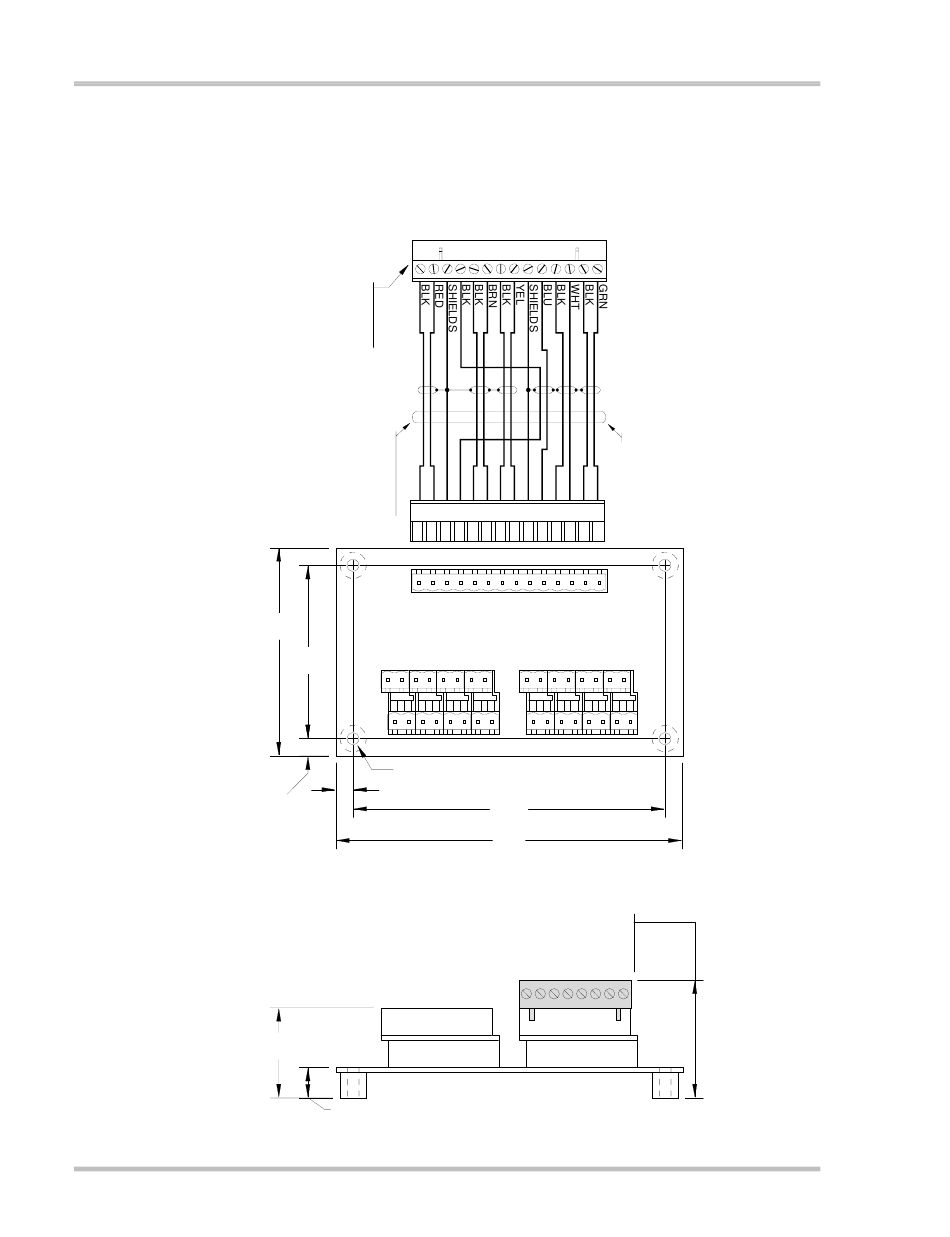

Figure 3.19 IMT Outline Drawing
3 4 5 6 7 8 9 10 11 12 13 14
3 5 9 10 11 12 13 14
4 6 7 8
TRANSDUCER 4
TRANSDUCER 3
Dia. Thruhole (Four places)
4.500"
(114.30)
5.00"
(127.0)
(Transducer 4 connector shown.)
clearance recommended
(25)
for mating connector removal.
ADVANCED MICRO CONTROLS INC
BELDEN 9731
