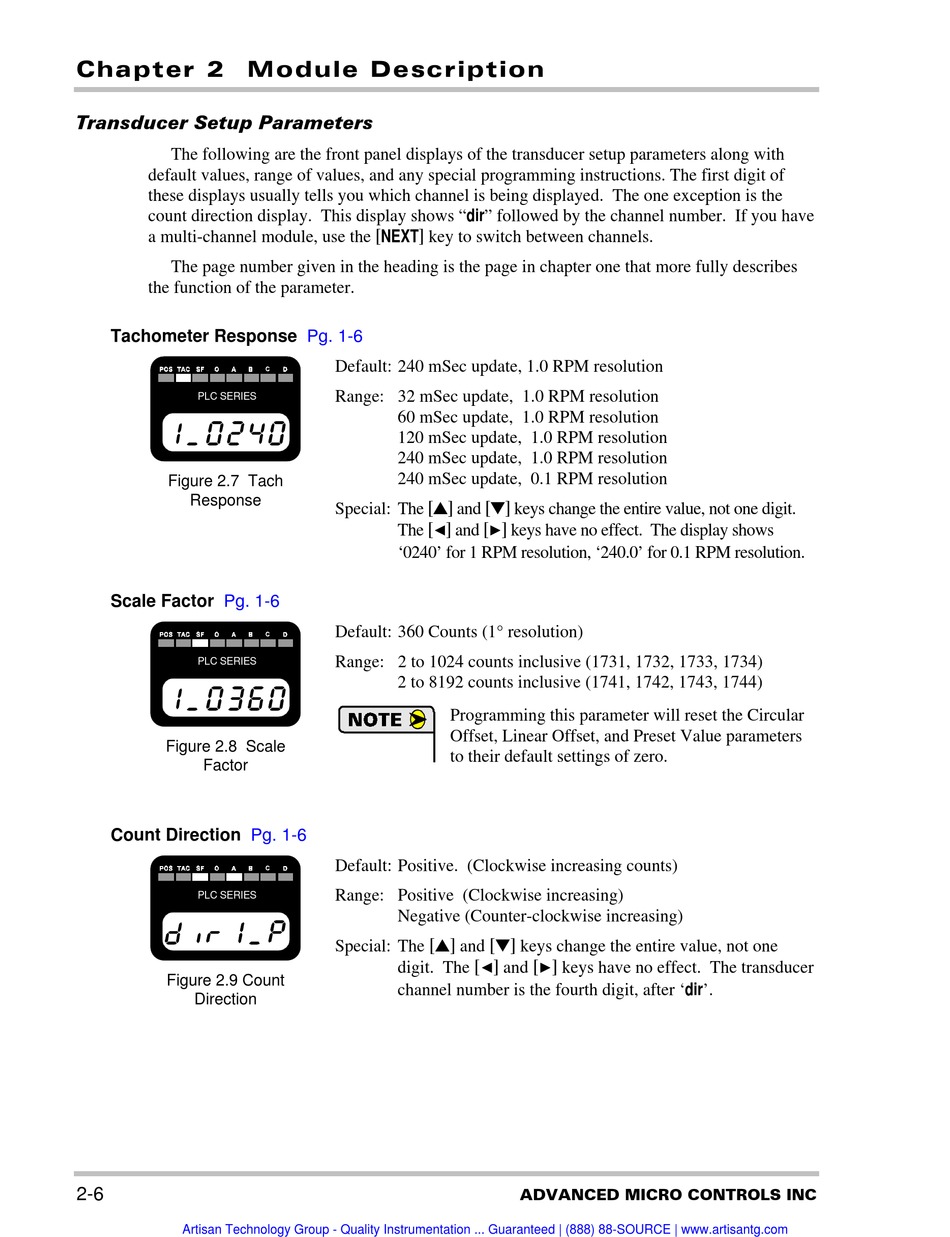

Chapter 2 Module Description
Transducer Setup Parameters
The following are the front panel displays of the transducer setup parameters along with
default values, range of values, and any special programming instructions. The first digit of
these displays usually tells you which channel is being displayed. The one exception is the
count direction display. This display shows "dir" followed by the channel number. If you have
a multi-channel module, use the >NEXT@ key to switch between channels.
The page number given in the heading is the page in chapter one that more fully describes
the function of the parameter.
Tachometer Response
PLC SERIES
Figure 2.7 Tach
Response
Scale Factor Pg. 1-6
PLC SERIES
Figure 2.8 Scale
Factor
Count Direction Pg. 1-6
PLC SERIES
Figure 2.9 Count
Direction
2-6
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Pg. 1-6
Default: 240 mSec update, 1.0 RPM resolution
Range: 32 mSec update, 1.0 RPM resolution
60 mSec update, 1.0 RPM resolution
120 mSec update, 1.0 RPM resolution
240 mSec update, 1.0 RPM resolution
240 mSec update, 0.1 RPM resolution
Special: The > @ and > @ keys change the entire value, not one digit.
The >Æ@ and >Ç@ keys have no effect. The display shows
'0240' for 1 RPM resolution, '240.0' for 0.1 RPM resolution.
Default: 360 Counts (1° resolution)
Range: 2 to 1024 counts inclusive (1731, 1732, 1733, 1734)
2 to 8192 counts inclusive (1741, 1742, 1743, 1744)
Programming this parameter will reset the Circular
Offset, Linear Offset, and Preset Value parameters
to their default settings of zero.
Default: Positive. (Clockwise increasing counts)
Range: Positive (Clockwise increasing)
Negative (Counter-clockwise increasing)
Special: The > @ and > @ keys change the entire value, not one
digit. The >Æ@ and >Ç@ keys have no effect. The transducer
channel number is the fourth digit, after 'dir'.
ADVANCED MICRO CONTROLS INC
