Chapter 3 Installation
Transducer Cable Wiring Diagrams (continued)
C3T-(x) wiring Diagram: For 1733 & 1743, (x) = length in feet

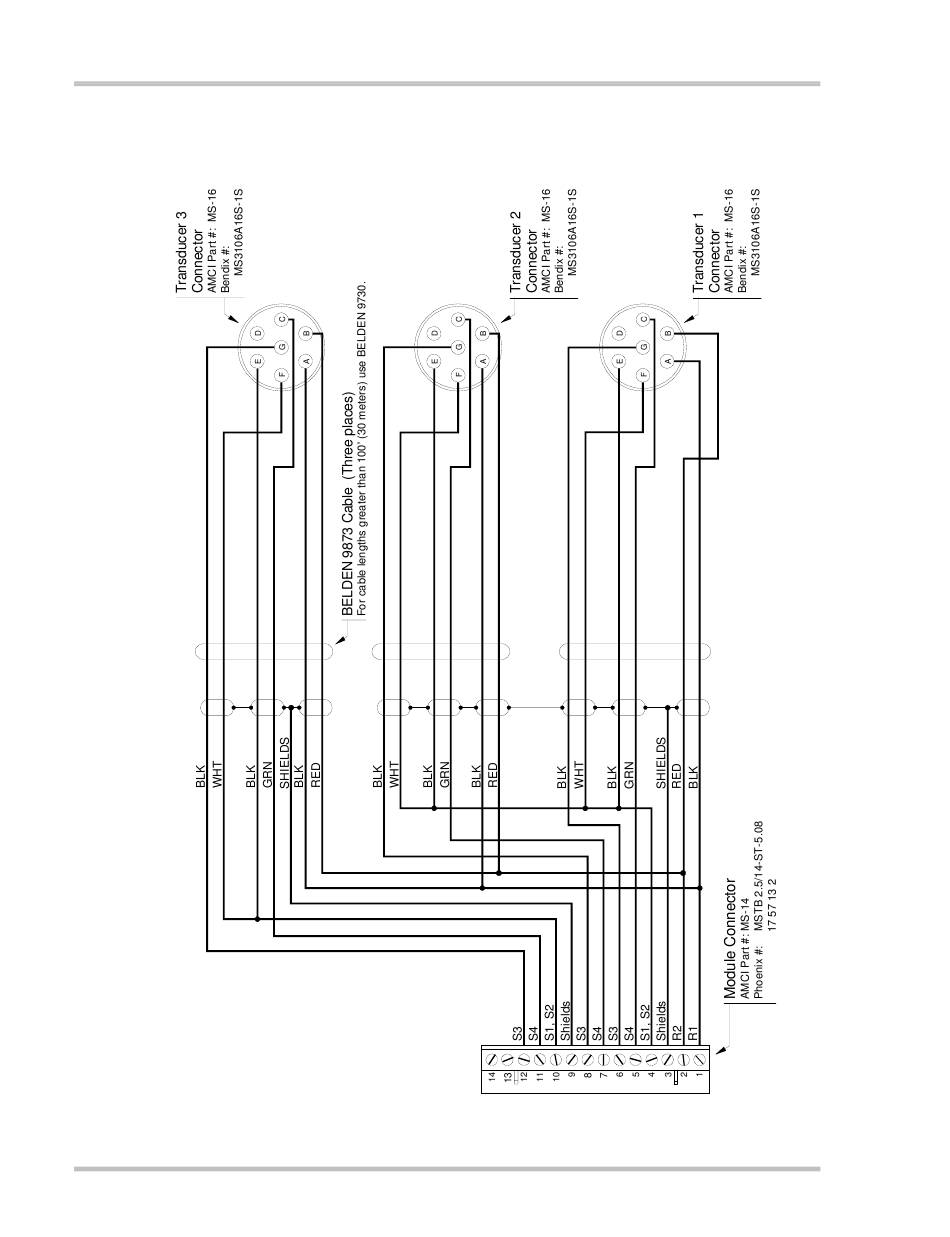

Figure 3.17 C3T-(x) Wiring Diagram
3-10
ADVANCED MICRO CONTROLS INC
