This chapter describes the physical layout of a Series 1700 module as well as
keyboard programming.

Front Panel Description

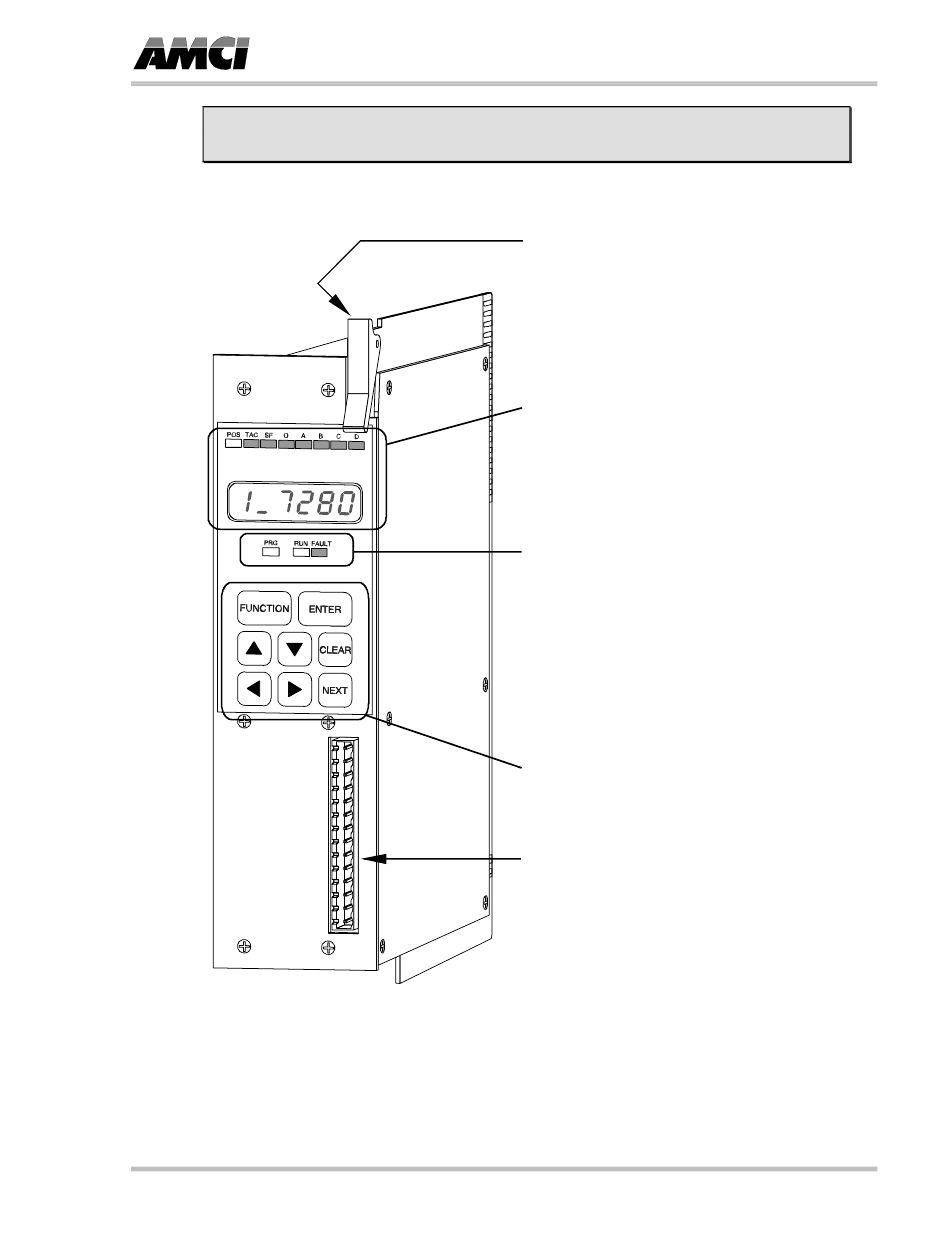

Figure 2.1 Series 1700 Front Panel
20 Gear Drive, Plymouth Ind. Park, Terryville, CT 06786
Tel: (860) 585-1254 Fax: (860) 584-1973
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Chapter 2

Module Description

Program Switch - (On other side of PC
Board, hidden from view.) Used to
enable programming the module from the
keyboard. A two pin header next to the
switch can be removed to disable Program
Mode. The switch can also be disabled
from the processor.
Function Display - Used to display position
data and parameter values. The eight LED
indicators designate what is showing on the
display. When programming a parameter,
a blinking digit in the display shows the
position of the Cursor.
Status Indicators - Indicates the operating
status of the module.
PRG - Yellow light is on when the module is in
RUN - Green light is blinking when the module
FAULT - Red light is on when there is a module
Keyboard - Used to examine position and
tachometer data as well as examine or
change the programming of the module.
Transducer Input Connector - Connector for
one to four transducers. A fourteen pin
connector is shown. The 1731, 1732,
1741, and 1742 modules have an eight pin
connector.
Program Mode.
is operating.
fault. The type of fault is shown on
the display.
