Chapter 2
Module Description
Using the Function Display and Keyboard (continued)

Switching Between Channels

Pressing the >NEXT@ key will cycle through the transducer channels when displaying the
position value, tachometer value, or transducer setup parameters. You will remain in the same
display, only switching channels. For example, if you have a 1744 and are displaying the Scale
Factor parameter, pressing the >NEXT@ key four times will cycle you through the four Scale
Factor values.
The first digit of these displays usually tells you which channel is being displayed. The one
exception is the Count Direction display. This display shows "dir" followed by the channel
number.

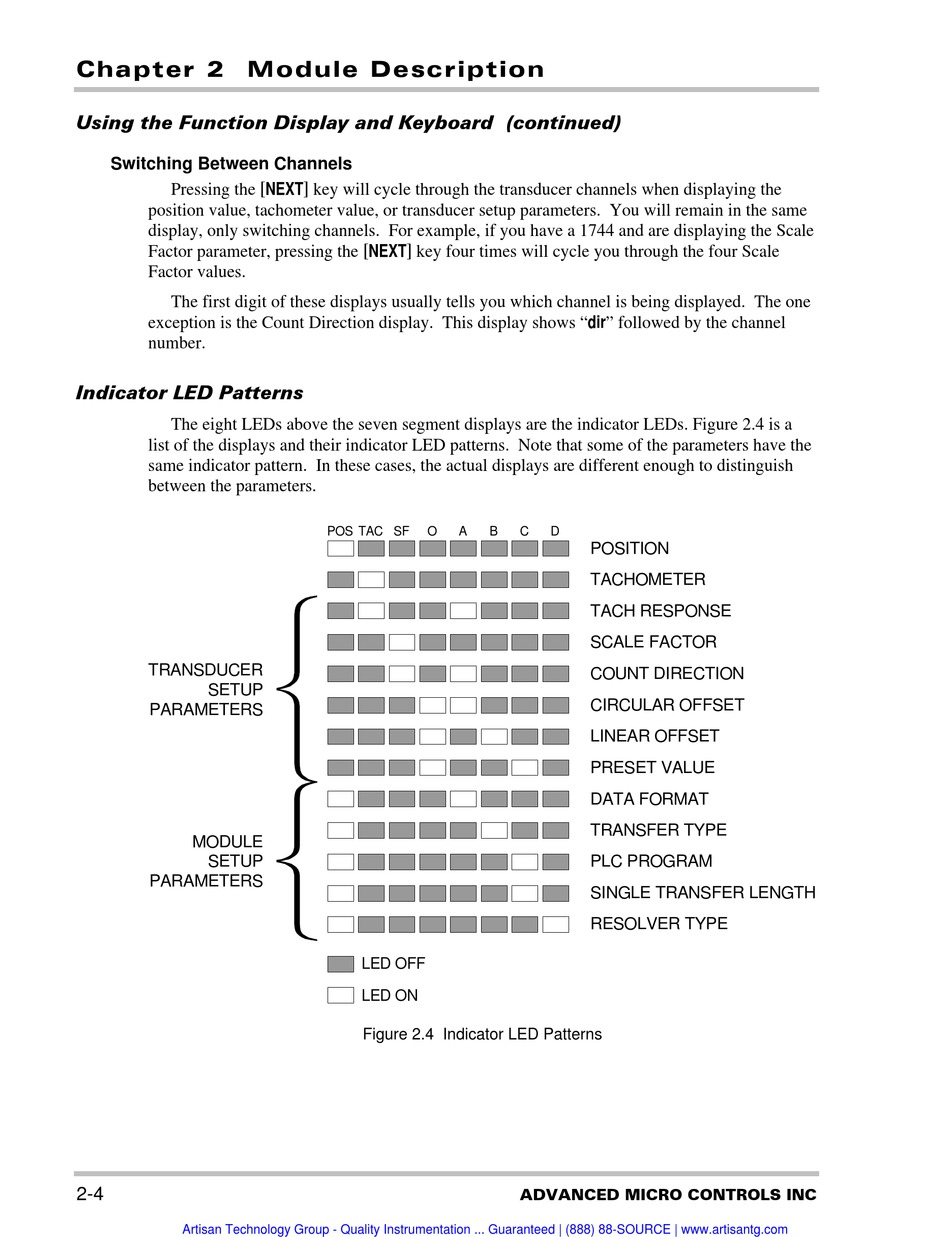

Indicator LED Patterns
The eight LEDs above the seven segment displays are the indicator LEDs. Figure 2.4 is a
list of the displays and their indicator LED patterns. Note that some of the parameters have the
same indicator pattern. In these cases, the actual displays are different enough to distinguish
between the parameters.
TRANSDUCER
SETUP
PARAMETERS
MODULE
SETUP
PARAMETERS
2-4
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
POS TAC SF
O
A
B
LED OFF
LED ON
Figure 2.4 Indicator LED Patterns
C
D
POSITION
TACHOMETER
TACH RESPONSE
SCALE FACTOR
COUNT DIRECTION
CIRCULAR OFFSET
LINEAR OFFSET
PRESET VALUE
DATA FORMAT
TRANSFER TYPE
PLC PROGRAM
SINGLE TRANSFER LENGTH
RESOLVER TYPE
ADVANCED MICRO CONTROLS INC
