Attaching the Babyworn Cable to the Processing Unit

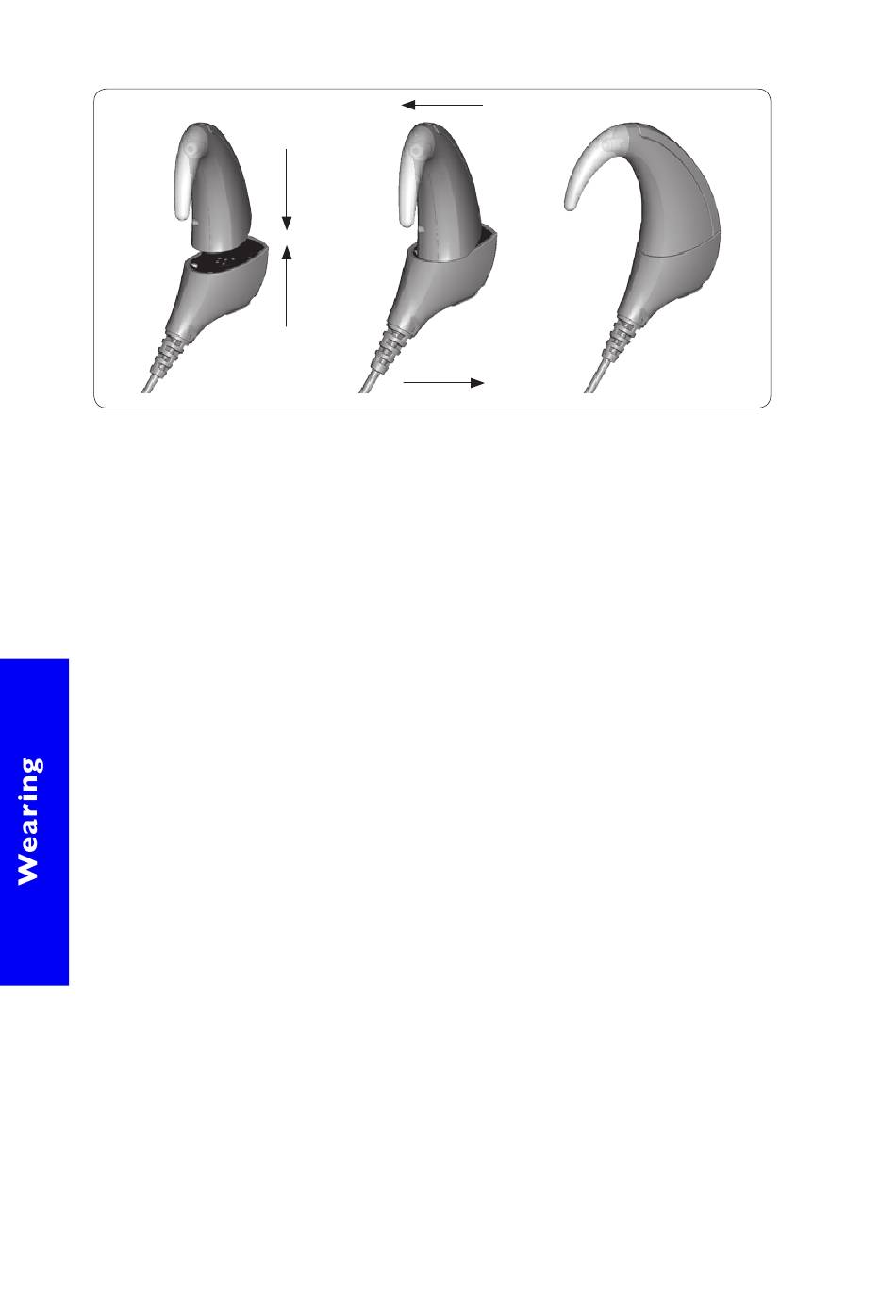

To attach the Babyworn Cable to the BTE Controller:
1. Hold the Babyworn Cable Shoe and the BTE Controller so they
touch. The shoe should face to the left and the BTE Controller
to the right of the final position.
2. Twist the shoe and the BTE Controller until the two parts fit
into place.
Make sure the BTE Controller and Processing Units are aligned
correctly with the Cable shoes, as even a slight misalignment can
cause technical problems. Check for broken or bent contacts
between the controller/Processing Unit and shoes, which can cause
misalignment. Do not touch the connector or contacts. Return your
processor to your clinician if any contacts are bent or broken.
Wearing the Babyworn Retention Case
The Babyworn Retention Case protects the BTE Controller and
holds it securely when connected to your child's clothing with fixing
aids. The fixing aids attach using snap-fit lugs, which allow aids to be
changed easily.
Insert the BTE Controller into the Retention Case as shown. If you
need to remove it at any stage, simply pull it away from the Retention
Case.
