Summary of Contents for Cochlear Nucleus 7 Hybrid Mode

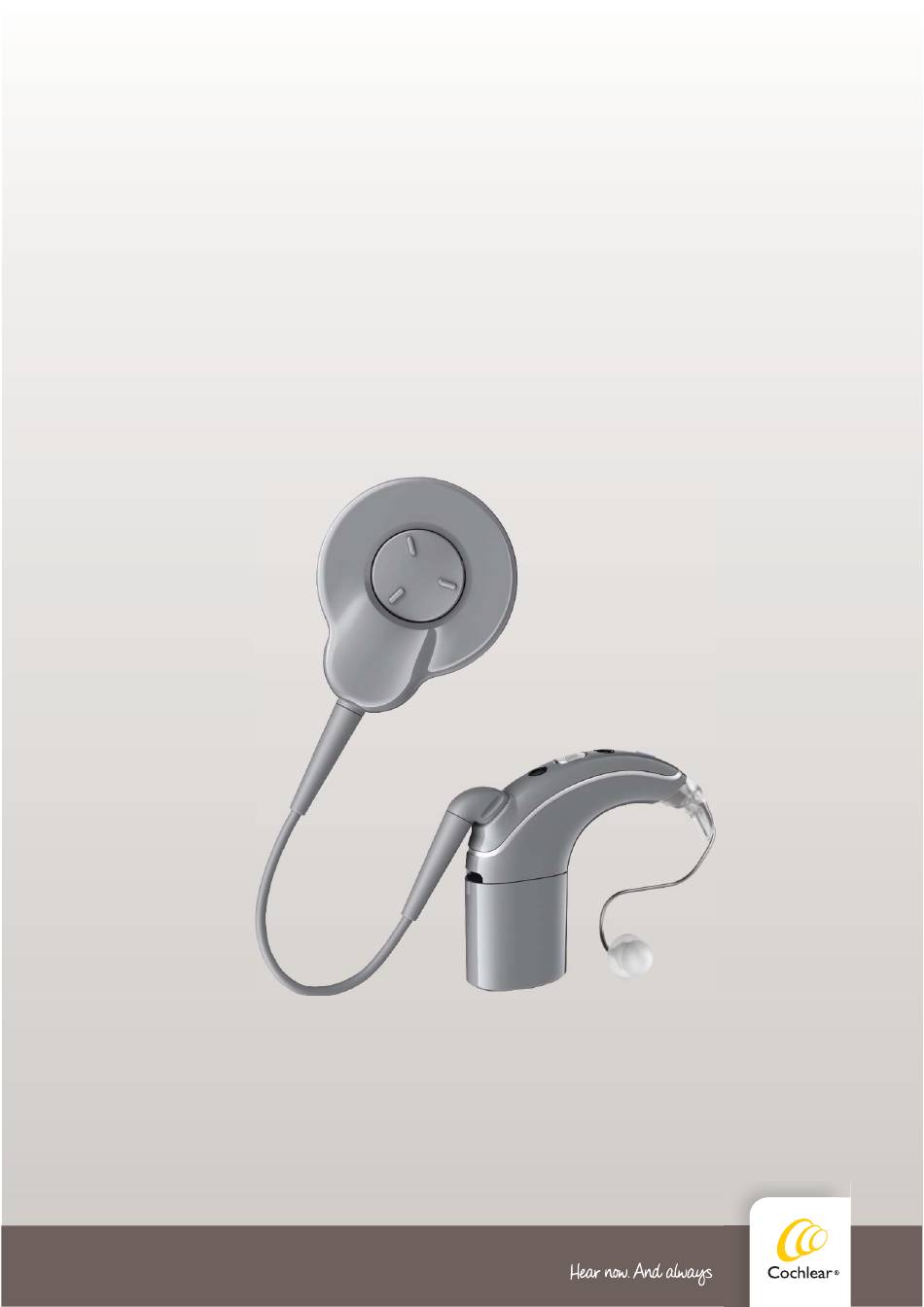

- Page 1 ™ Nucleus 7 Hybrid Mode ® Professionals Guide CP1000...
- Page 2 This guide is intended for Cochlear implant and hearing care professionals who have undergone formal training on how to fit the Cochlear ™ Nucleus ® 7 Sound Processor (model number: CP1000) in Hybrid mode, using Cochlear Custom Sound® software ™...
-
Page 3: Table Of Contents
Contents Introduction ......... . . 2 Your role as a clinician . -
Page 4: Introduction
2. Programming it in the Custom Sound software. Your role as a clinician 1. Check Cochlear implant compatibility: Hybrid mode, as part of the Nucleus system, is compatible with a range of Cochlear implants. Contact Cochlear for the latest information on compatible implants. -
Page 5: The Hybrid System
• a Cochlear Hybrid Earhook, that replaces the normal earhook • a Cochlear Hybrid Receiver, comprising a cable that plugs into the Hybrid earhook, and a speaker unit that is worn in the ear. The speaker unit has a replaceable wax filter •... -
Page 6: Candidacy
Candidacy Nucleus Hybrid mode is suitable for recipients who satisfy audiometric and hearing performance criteria post-operatively, and have appropriate expectations regarding outcomes. New CI recipients: Post-operative evaluation Perform unaided post-operative audiometric testing of each ear at regular intervals, to monitor residual hearing levels over time. This should include air and bone conduction thresholds and tympanometry as indicated, to detect the presence of any temporary or permanent conductive component. -
Page 7: Existing Users: Upgrading From Older Processors
Existing CI recipients, or those using Hybrid mode on older sound processors, can be converted to the Nucleus 7 system with Hybrid mode. To do this, you need to fit them with a Nucleus 7 Sound Processor and Cochlear Hybrid receiver and dome, and reprogram their system with Custom Sound software Version 5.0 (or above). -
Page 8: Fit The Hybrid System
Fit the Hybrid system The Hybrid system has a flexible, modular design to fit ears of all shapes and sizes as they grow and change – while managing sweat, earwax and the challenges of daily use. To fit the Hybrid system, you need to specify: •... -
Page 9: Fit A Dome
Cochlear Hybrid Open Dome Open Domes have a more open fit in the ear canal, and suit recipients with mild to moderate hearing loss. Cochlear Hybrid Bass Double Dome Bass Double Domes suit recipients with moderate hearing loss. They have a double vent. -
Page 10: Assemble The Hybrid System
Attach the Hybrid receiver NOTE This procedure is intended to be performed by clincians only. 1. Pull up on the normal earhook to remove 2. Insert the Cochlear EAC200 Series Screwdriver into the hole in the processing unit plug. NOTE... - Page 11 4. Click the Cochlear Hybrid Earhook into place. 5. Align the Cochlear Hybrid Receiver plug with the end of the earhook and carefully slide the plug into the processor. 6. Push carefully until it clicks into place. Pull gently on the cable to check that it’s securely in place.
-
Page 12: Wear The Hybrid System
Wear the Hybrid system WARNING The Hybrid system contains small parts. Make carers aware of the risk of choking. CAUTION Do not allow the coil magnet to come into contact with the Hybrid receiver as this may impact the Hybrid system’s functionality. NOTE Always handle the sound processor and Hybrid system with care. -
Page 13: Wear The Ear Lock
If the recipient has a large ear opening (concha), the Hybrid system may not stay in place. You can use the Cochlear Hybrid Ear Lock to stabilise the speaker unit in the ear. 1. Align the ear lock with the speaker unit as shown. -
Page 14: Remove The Hybrid Receiver
Remove the Hybrid receiver NOTE This procedure is intended to be performed by clinicians only. 1. Fit the Cochlear Hybrid Removal Tool up under the processor, with the tool’s raised tab in the notch under the earhook. NUCLEUS® 7 HYBRID MODE PROFESSIONALS GUIDE... - Page 15 2. Firmly press up on the removal tool to push the tab into the notch on the earhook. Grip the Hybrid receiver near the earhook and gently pull it out. NUCLEUS® 7 HYBRID MODE PROFESSIONALS GUIDE...
-
Page 16: Program Hybrid Mode
The options for Hybrid mode are: • CHP: Cochlear Hybrid Prescription. By default, CHP with WDRC (Wide Dynamic Range Compression) is selected. It can be used with or without compression in Hybrid mode. • NAL-RP: National Acoustic Laboratory. Revision for profound losses prescriptions that equalise prescribed gain to make each frequency band of speech of equal loudness to maximize speech intelligibility. -
Page 17: Program New Hybrid Mode Recipients
Program new Hybrid mode recipients To program a new Nucleus 7 Sound Processor recipient in Hybrid mode using the Custom Sound software: 1. Create a recipient and input their audiogram. 2. Obtain impedance measurements. 3. Create a Hybrid mode MAP. 4. -
Page 18: Care And Maintenance
Care and maintenance This section covers the care and maintenance of the Hybrid system only. Educate recipients about relevant parts such as the wax filter and domes and regularly check they are looking after the system using the advice in this section, and in the user guides. Refer to the Nucleus 7 Hybrid User Guide for care and maintenance procedures. -
Page 19: Clinician-Only Care Tasks
Clinician-only care tasks There are extra steps you can take to clean and maintain a recipient’s Hybrid system when they come to see you: • Check for correct attachment of the Hybrid receiver. • Check for correct insertion of the speaker unit. •... -
Page 20: Troubleshoot
Check regularly that the items listed below are in good repair and well stocked. Have plenty of spare parts – especially receivers, domes, earhooks and wax filters. • Nucleus 7 Hybrid Fitting Kit • Cochlear EAC200 Series Stetoclip • Cleaning set, wax loop, tissues • Replacement ProWax filters •... -
Page 21: Observations, Possible Causes And Solutions
1. Perform a listening test using a Stetoclip. If this fault shows a problem, send the sound processor for repair. 2. Perform a listening test using a Cochlear Monitor Earphone Adaptor and earphones. If this shows a problem, send the sound processor for repair. Feedback The Hybrid receiver 1. - Page 22 PROBLEM POSSIBLE CAUSE TEST / RESOLUTION High distortion Wax is blocking a 1. Replace the dome (with its built-in wax filter). filter 2. Check the wax filter on the speaker unit and replace if necessary. Educate the recipient to do this regularly. Hybrid receiver is Check the Hybrid receiver using a listening test, and broken...
- Page 23 PROBLEM POSSIBLE CAUSE TEST / RESOLUTION Painful fit Speaker unit is Insert correctly and re-train the recipient in correct incorrectly inserted insertion. into the ear Hybrid system is not 1. Check areas of the outer ear where the sound properly fitted processor sits for sore spots or friction marks.
-
Page 24: Shape The Hybrid Receiver Cable
Shape the Hybrid receiver cable Problem: Hybrid receiver cable is between sizes – too long or too short. Solution: To improve fitting comfort and retention, the Hybrid receiver cable is heat formable. This allows for variations in ear anatomy and for those recipients whose measurements fall between two lengths. -
Page 25: Managing Occlusion
Managing occlusion Occlusion is often described by the patient as: • sounding like their head is inside a bucket • sounding like they are speaking into a tunnel • having a bad perception of their own voice • feeling like acoustic stimulation is becoming unbearable. NOTE An initial feeling of occlusion may occur when the system is first fitted or the program is changed. -
Page 26: Service
If the Hybrid earhook, receiver or dome breaks or is lost or damaged, you can replace it from your existing stock or order it from Cochlear. If an earmould is damaged, fit a dome if possible and order a new or replacement earmould. -
Page 27: Warnings
• Counsel carers to routinely check the Hybrid system by turning on the sound processor and listening closely to the Hybrid system. Where available carers should be advised to use the Cochlear EAC200 Series Stetoclip. • If you fit earmoulds, only use them with the 60 or 85 size Hybrid receivers. Do not use custom earmoulds for any larger size receivers. -
Page 28: Other Information
Other information Labelling symbols The following symbols may appear on your processor or remote components and/or packaging: Refer to instruction manual Specific warnings or precautions associated with the device, which are not otherwise found on the label Manufacturer Compatible sound processors Authorised representative in the European Community Catalogue number Serial number... - Page 29 By prescription Recyclable material Dispose of electrical components in accordance with your local regulations Type B applied part Ingress Protection Rating • Protected against access of solid foreign objects greater than or equal to 1.0mm diameter. • Protected against failure from splashing water. Ingress Protection Rating •...
- Page 30 Part 1: General Requirements for Basic Safety and Essential Performance. Legal statement The statements made in this guide are believed to be true and correct as of the date of publication. However, specifications are subject to change without notice. © Cochlear Limited 2017 NUCLEUS® 7 HYBRID MODE PROFESSIONALS GUIDE...
- Page 32 科利耳, Off-Stylet, Slimline, SmartSound, Softip, SoftWear, SPrint, True Wireless, the elliptical logo and Whisper are either trademarks or registered trademarks of Cochlear Limited. Ardium, Baha, Baha SoftWear, BCDrive, DermaLock, EveryWear, Vistafix and WindShield are either trademarks or registered trademarks of Cochlear Bone Anchored Solutions AB. Bluetooth is a registered trademark of Bluetooth SIG.
