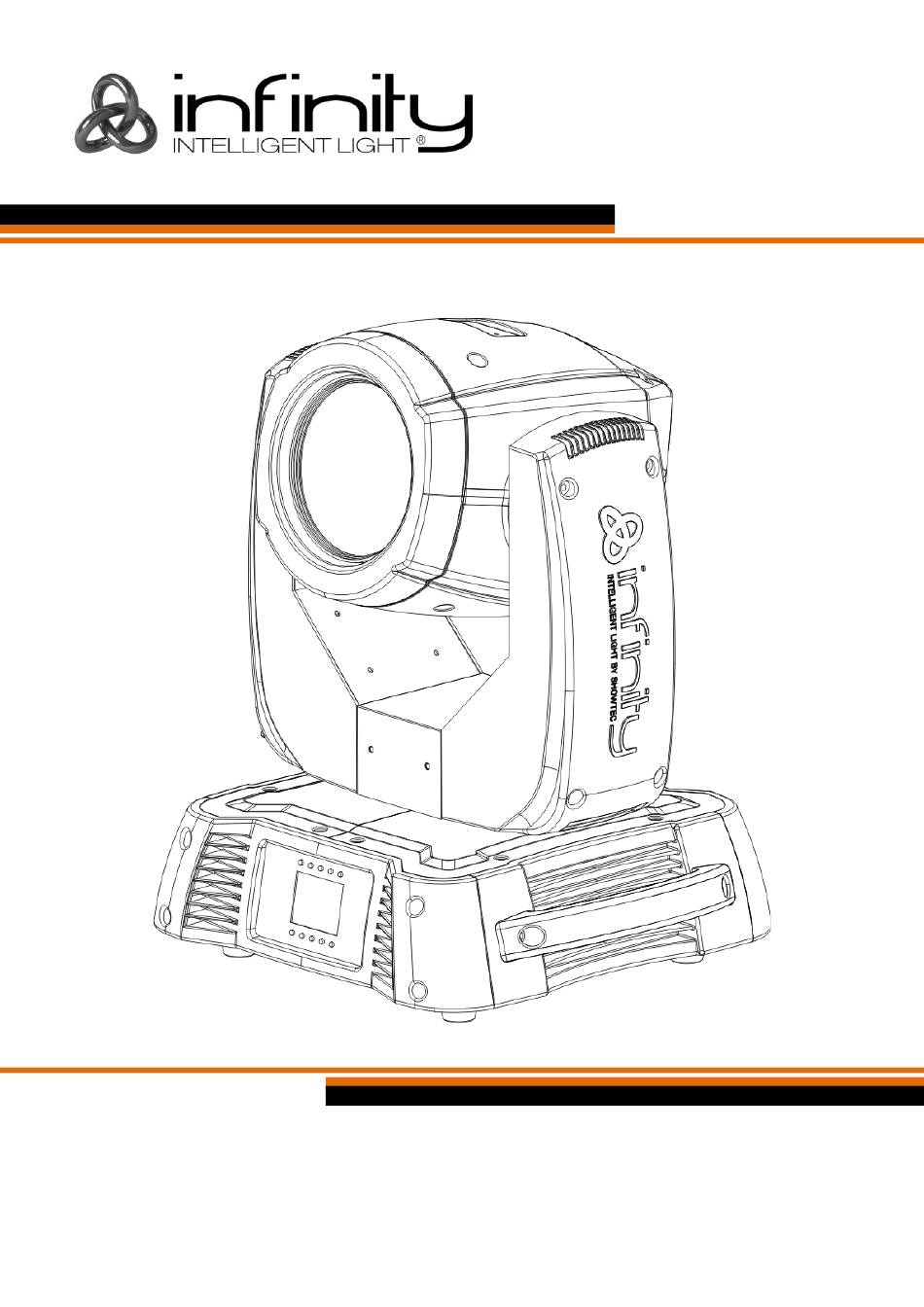

- Page 1 MANUAL ENGLISH Infinity iB-5R Ordercode: 41530 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backside ..................................8 Installation ................................... 8 Set Up and Operation ............................... 8 Control Modes ................................8 One Infinity (Built-in Programs)..........................8 Multiple Infinity’s (DMX Control) ..........................9 Fixture Linking ................................10 Data Cabling ................................10 Control Panel ................................11 Control Mode ................................11 DMX Addressing ................................11 Menu Overview ................................12... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity iB-5R LED Spot with Powercon powercable 0,9m ● 2 brackets for truss mounting ●... - Page 4 For replacement use fuses of same type and rating only. • The user is responsible for correct positioning and operating of the Infinity. The manufacturer will not • accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
When rigging, derigging or servicing the projector, always make sure, that the area below the installation place is blocked and staying in the area is forbidden. The Infinity can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Ordercode: 41530... - Page 6 Infinity iB-5R Mounting a clamp to the underside of the Infinity moving head Improper installation can cause serious damage to people and property ! Ordercode: 41530...
-
Page 7: Connection With The Mains
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement of which the obligation is resulting. Ordercode: 41530... -
Page 8: Description Of The Device
Infinity iB-5R Description of the device Features The Infinity iB-5R is a moving-head with high output and great effects. ● Beam effect ● High torque motors ● Ultra-fast movements ● Quick lock screws on the covers allow you to change gobos within minutes without the need of any special tools ●... -
Page 9: Overview
NOTE: Knowledge of DMX is required to fully utilize this unit. Installation Remove all packing materials from the Infinity iB-5R. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Multiple Infinity's (Dmx Control)
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-p XLR cable to connect the Infinity’s and other devices. 05) Link the units as shown in (figure 3), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"... -
Page 11: Fixture Linking
DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m), • FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). The Infinity can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 41530... -
Page 12: Control Panel
When using multiple Infinity’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity’s should be 1(001); the DMX address of the second Infinity should be 1+18=19 (019); the DMX address of the third Infinity should be 19+18=37 (037), etc. -
Page 13: Menu Overview
Infinity iB-5R Menu Overview Ordercode: 41530... -
Page 14: Main Menu Options
You can choose 512 different DMX addresses. Use the Left /Right / Up / Down buttons to select the required address from 03) Once you have set the desired DMX address, press the button to store your DMX address. Ordercode: 41530... -
Page 15: Edit Mode
With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. You can choose 13 different modes. Use the Up / Down buttons to select the required mode: Ordercode: 41530... - Page 16 Infinity iB-5R Ordercode: 41530...
-
Page 17: Built-In Programs
Use the Up / Down buttons to select the required mode: 03) Once you have selected the desired mode, press the buttons to change the value from No to YES. 04) Once you have selected the desired setting, press the button to store your settings. Ordercode: 41530... -
Page 18: Test Menu
04) If you press the OK button at the Manual Test, a new Menu will open. 05) You can set 18 different Test options. 06) Once you have selected the desired setting, press the button to store your settings. Ordercode: 41530... -
Page 19: Information Menu
Infinity iB-5R 6. Information Menu With this menu you can set your desired mode. 01) Press the button and select 02) Press the button, to confirm. 03) You can only view 6 current settings, you cannot change anything Ordercode: 41530... -
Page 20: Dmx Channels
Fast close/shutter and slow opening, from slow to fast (0-10 flashes/sec.) 168-203 Slow close/shutter and fast opening, from slow to fast (0-10 flashes/sec.) 204-239 Pulse strobe effect, from slow to fast (0-10 flashes/sec.) 240-247 Random strobe effect, from slow to fast (0-10 flashes/sec.) 248-255 Shutter open Ordercode: 41530... - Page 21 Gobo Shake 9 from slow to fast 96-99 Gobo Shake 10 from slow to fast 100-103 Gobo Shake 11 from slow to fast 104-107 Gobo Shake 12 from slow to fast 108-111 Gobo Shake 13 from slow to fast Ordercode: 41530...
- Page 22 Reset Shutter/Prism after 3 seconds 180-189 No Function 190-199 Reset Frost Effect / Focus 200-209 Reset All 210-219 Allows all interrupt 220-229 All interrupt disabling 230-239 Close 240-247 XY Smoothing model open 248-255 XY Smoothing model to shut down Ordercode: 41530...
- Page 23 Built-in Program 26 216-223 Built-in Program 27 224-231 Built-in Program 28 232-239 Built-in Program 29 240-247 Built-in Program 30 248-255 Built-in Program 31 Channel 18 – Built-in Speed; Use in combination with CH17 0-255 From slow to fastest Ordercode: 41530...
-
Page 24: Channels (Advanced)
Pink 41-44 Blue 45-48 Warm White 49-52 ½ CTO 53-56 Cool White 57-60 61-127 Split Color 128-189 Clockwise rotation (CW) rainbow effect from fast to slow 190-193 Stop 194-255 Counter-clockwise rotation (CCW) rainbow effect from slow to fast Ordercode: 41530... - Page 25 Clockwise rotation (CW) from fast to slow 190-193 Stop 194-255 Counter-clockwise rotation (CCW) from slow to fast Channel 12 – Prism Enlarge 0-255 Prism enlarge from big to small Channel 13 – Focus 0-255 Prism enlarge from big to small Ordercode: 41530...
- Page 26 Reset Shutter/Prism after 3 seconds 180-189 No Function 190-199 Reset Frost Effect / Focus 200-209 Reset All 210-219 Allows all interrupt 220-229 All interrupt disabling 230-239 Close 240-247 XY Smoothing model open 248-255 XY Smoothing model to shut down Ordercode: 41530...
-
Page 27: Channel Settings
Fig. 05 Maintenance The Infinity iB-5R requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. Do not use alcohol or solvents. -
Page 28: Battery Replacement
(must be carried out by a qualified technician!) 01) Unplug the unit from the electric power source. 02) Remove the 6 screws on the front side of the Infinity. 03) Gently pull the front cover from the device. 04) Disconnect the plug from the PCB. -
Page 29: Troubleshooting
05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Infinity, as this may damage the unit and the warranty will become void. - Page 30 Turn up the air conditioning . cuts out LEDs damaged ● Disconnect fixture and return to your intermittently dealer. The power supply settings do not ● Disconnect fixture. Check settings and match local AC voltage and correct if necessary. frequency. Ordercode: 41530...
-
Page 31: Product Specification
40°C; Max. housing temperature t : 80°C Motor: high quality stepping-motor controlled by microprocessors Minimum distance: Minimum distance from flammable surfaces: 0.5m Minimum distance to lighted object: Design and product specifications are subject to change without prior notice . Ordercode: 41530... - Page 32 Infinity iB-5R Website: www.highlite.nl Email: service@highlite.nl Dimensions Ordercode: 41530...
- Page 33 Infinity iB-5R Notes Ordercode: 41530...
- Page 34 Infinity iB-5R Ordercode: 41530...
- Page 35 Infinity iB-5R Ordercode: 41530...
- Page 36 ©2016 Infinity...
