6 First time operation

Connect, depending on device type, an antenna, and insert a SIM card.
Before connecting the router to a network or PC, first ensure that it is properly connected
to a power supply, otherwise it may cause damage to other equipment.

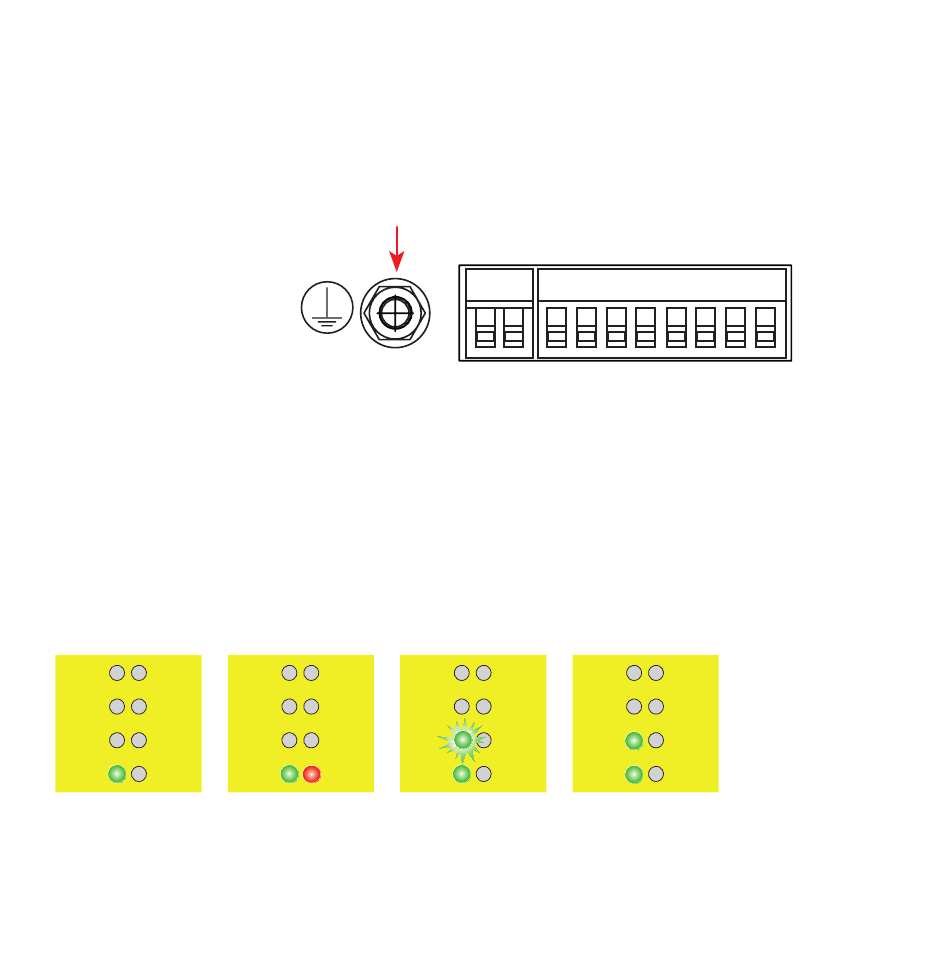

• Connect equipotential bonding to the grounding lug on the router's top panel.
• Connect the (10-30V DC) power supply to the X1 terminal of the router.
Achten Sie auf die richtige Polung!
◦ After switching on the supply voltage the Pwr LED lights up and the device performs
a system check.
◦ After about 25 sec., both LED Pwr and LED Err light up.
◦ After another 25 sec., LED Err turns off and the LED Rdy flashes.
◦ After a total of about 90 sec., both LED Pwr and LED Rdy light up.
Fc1
Fc2
Fc3
Fc4
Rdy
Con
Pwr
Err
T 0
The mbNET is now ready for operation.
Fc1
Fc2
Fc1
Fc3
Fc4
Fc3
Rdy
Con
Rdy
Pwr
Err
Pwr
T + 25 Sek.
T + 50 Sek.
- 12 -
+ -
I4 I3 I2 I1 P M O2 O1
|
| X2 |
X1
Fc2
Fc1
Fc4
Fc3
Con
Rdy
Err
Pwr
T + 90 Sek.
Fc2
Fc4
Con
Err
