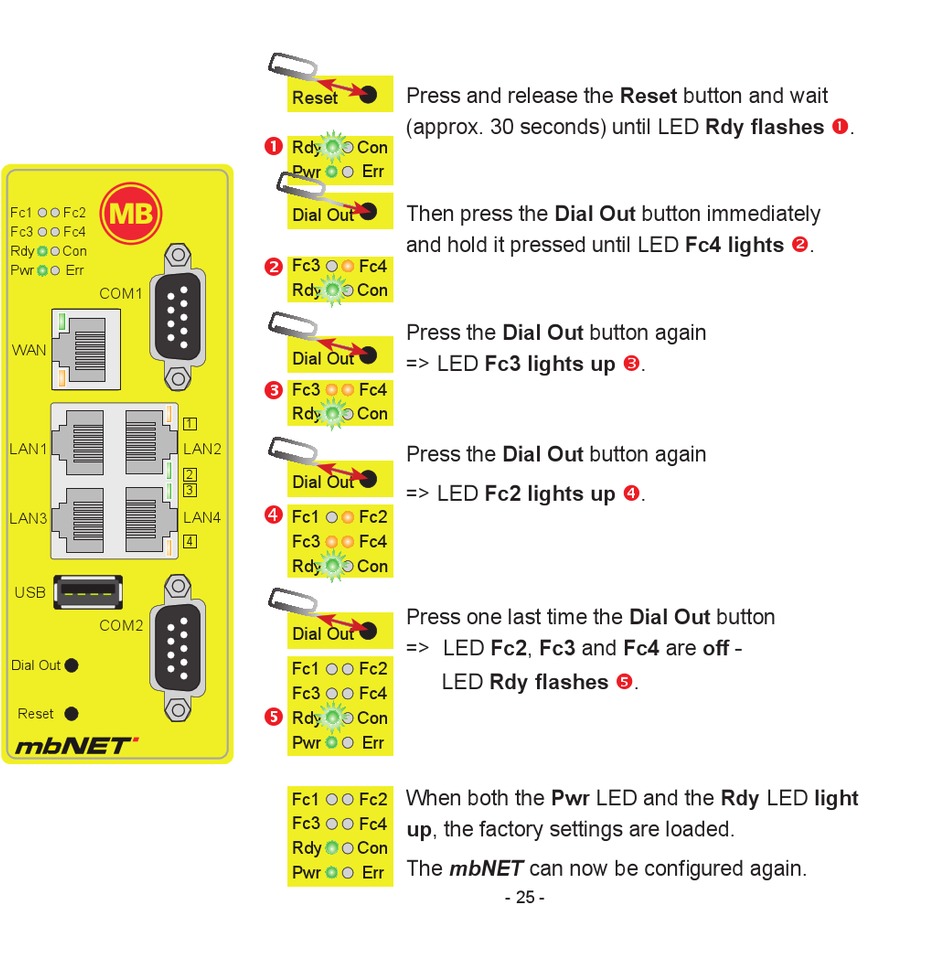

Press and release the Reset button and wait
(approx. 30 seconds) until LED Rdy flashes �
Con
Err
Then press the Dial Out button immediately
and hold it pressed until LED Fc4 lights �
Fc4
Con
Press the Dial Out button again
=> LED Fc3 lights up �
Fc4
Con
Press the Dial Out button again
=> LED Fc2 lights up �
Fc2
Fc4
Con
Press one last time the Dial Out button
=> LED Fc2, Fc3 and Fc4 are off -
Fc2
LED Rdy flashes �
Fc4
Con
Err
When both the Pwr LED and the Rdy LED light
Fc2
Fc4
up, the factory settings are loaded.
Con
The mbNET can now be configured again.
Err
