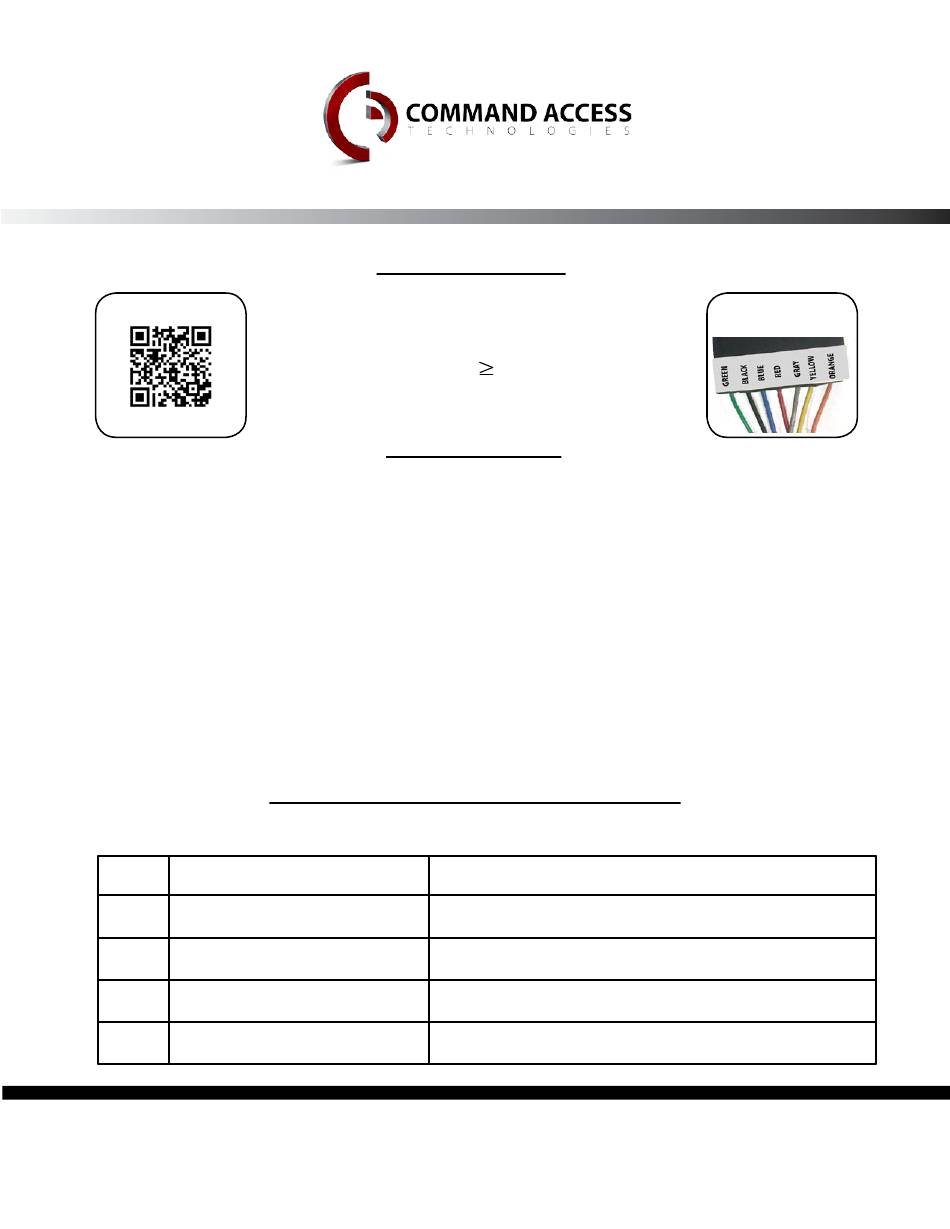

Technical Information; Specifications; Troubleshooting And Diagnostics - Command access VLP-UL-M-KIT Installation Instructions Manual

Installation Video
Scan or Click
Step 1 Press the device push pad to the desired setting. (this can be fully
-
depressed or less than fully depressed).
Step 2 While depressing the push pad, apply power. (i.e. presenting the credential
-
to the reader).
Step 3 Continue to keep pad depressed, the device will beep 6 times. After the
-
beeps have stopped, release the pad and now the adjustment is complete.
If not to your liking repeat the three steps. That's all there is to it.
Beeps
2 Beeps Over Voltage
3 Beeps Under Voltage
5 Beeps Forced Release
6 Beeps Switch wires not making contact
7 Beeps Over-travel or mechanical obstruction
U.S. Customer Support
1-888-622-2377

Technical Information

Specifications

• Input Voltage: 24VDC +/- 10%
• Current Peak: 1 Amp
• Current Hold: 125 mA
• Wire gauge: X
Setting MM3
Troubleshooting & Diagnostics
Explanation
Visit our website for more details
www.CommandAccess.com
20 ga
Solution
Check voltage & adjust to 24 V.
Check voltage & adjust to 24 V.
Device will automatically re-engage within 5 seconds.
Check to make sure there are no loose wires or bad connections
on MM3. After connection is repaired re-power & set adjustment.
Remove obstruction & push pad down until beeping stops &
release.
Page 7
Wiring Code
Doc # 20059
Canada Customer Support
1-855-823-3002
