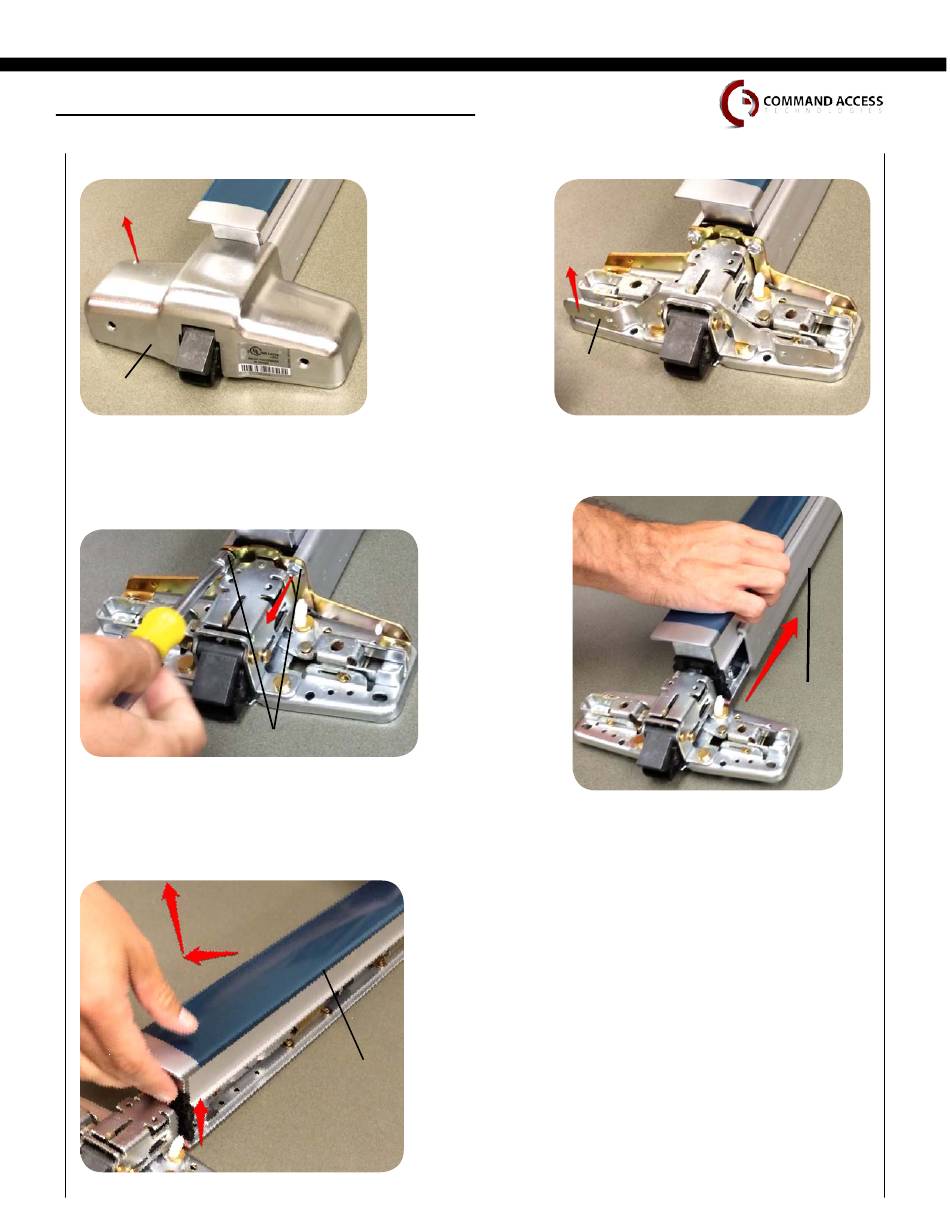

STEP 1
- Disassemble Exit Device
A.
Remove head cover
Head cover
C. Remove (2) screws attaching bracket to
baserail with 5/16 nut drive or flat head
screw driver.
E. Remove push pad by pulling pad guides
up than moving push pad forward & then
upward.
Screws
Push pad
B.
Remove mounting bracket.
Bracket
D. Remove case for device.
Page 2
Case
