Command access VLP-UL-M-KIT Installation Instructions Manual page 6

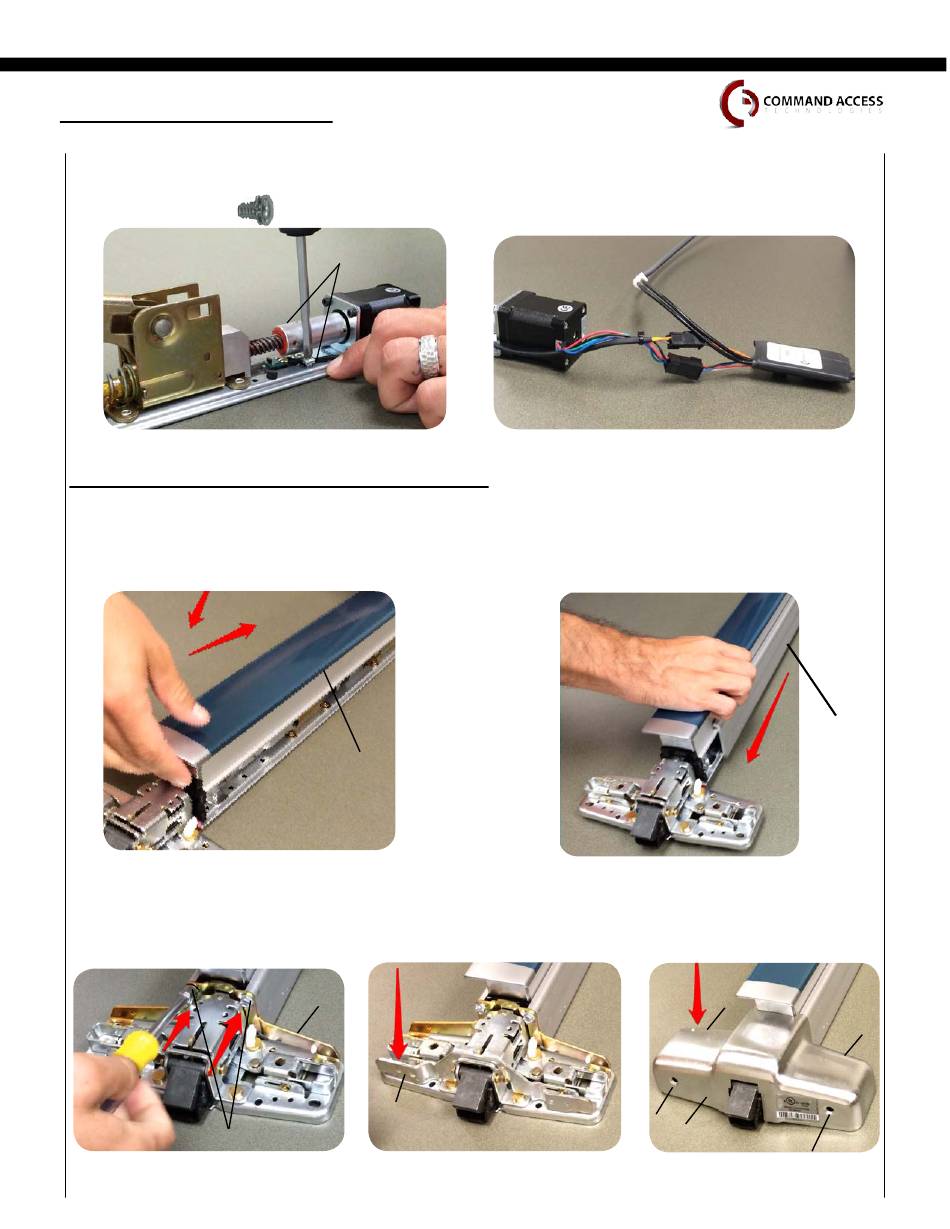

STEP 4
- Continued ...
G.
Once bracket lines up with screw
holes install (2) Phillips head screws (B)
provided.
STEP 5
- Reassemble Exit Device
A.
Replace push pad by placing over
activating arms & pushing down than
back towards end of the device
C.
Replace bracket & attach (2)
screws with 5/16 nut drive or
flat head screw driver.
Screws
Screw holes
Push pad
D.
Replace mounting
bracket.
Bracket
Bracket
Page 6
H.
Next plug in MM3 module to motor & if
available power. We recommend to test
unit. See last page for MM3 details
B.
Slide baseplate back into case being
careful of motor wires.
E.
1
Head cover
Case
Replace head cover &
(4) head cover screws
if present.
3
2
4
