Technical Information; Setting Pts; Troubleshooting & Diagnostics - Command access MLP-UL-M KIT Insert Instructions

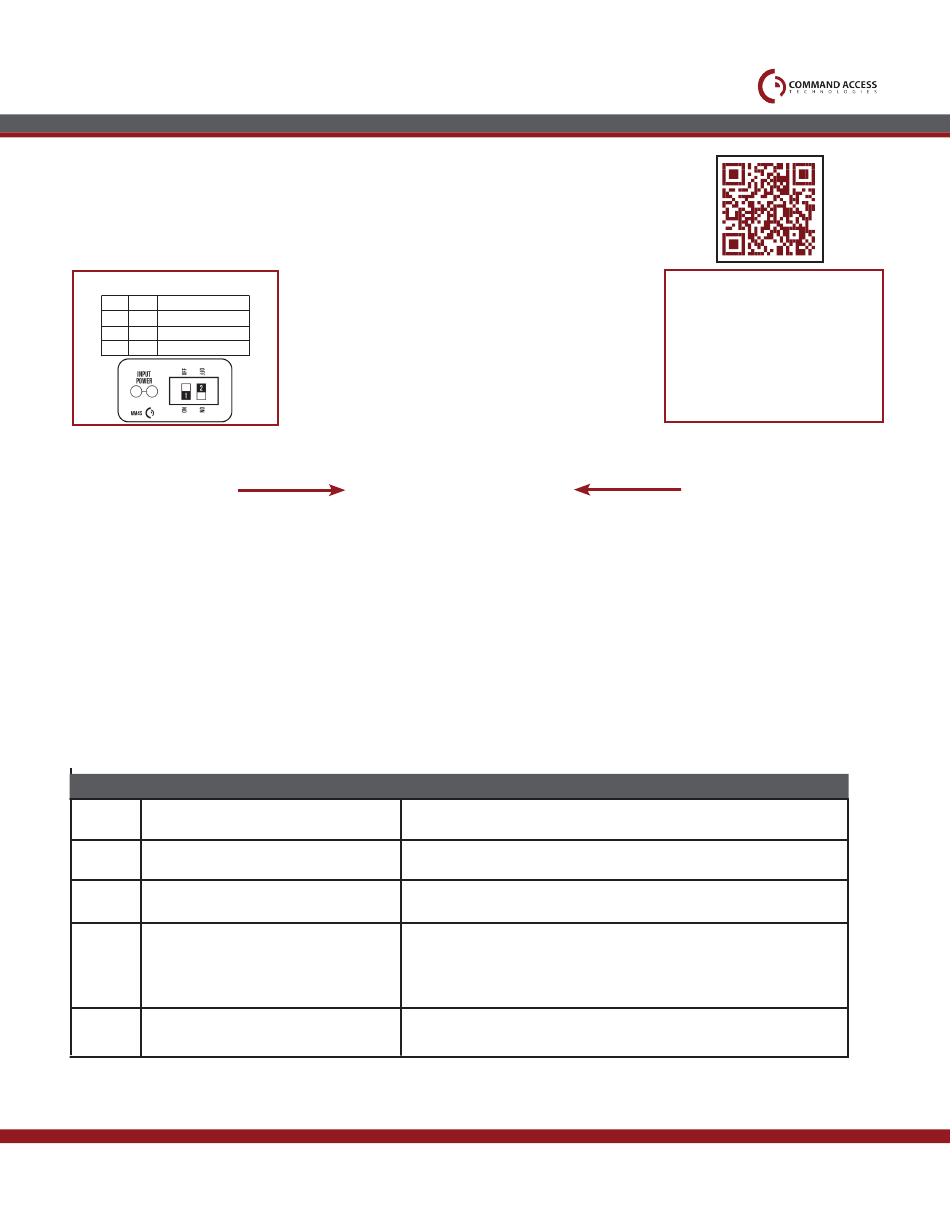

mm4s switches
on off
LOW TORQUE
off on
STANDARD TORQUE
on on
HIGH TORQUE
off off
PTS PROGRAMMING LOCKED
Step 1-
Select your preferred torque mode (ships in standard torque) Press the device push pad to the
desired setting. (Recommend to fully depress and release 5%, giving the device room for changing door
conditions.)
Step 2-
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 3- Continue to keep pad depressed, the device will beep 6 times. After the beeps have stopped, release the pad
and now the adjustment is complete. If not to your liking repeat the 3 steps.
Beeps Explanation
2 Beeps Over Voltage
3 Beeps Under Voltage
4 Beeps Failed Sensor
5 Beeps Retraction or dogging failure
PUSH TO SET
6 Beeps
U S C U S T O M E R S U P P O R T 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | W W W . C O M M A N D A C C E S S . C O M | C A C U S T O M E R S U P P O R T 1 - 8 5 5 - 8 2 3 - 3 0 0 2

Technical Information

SPECIFICATIONS
• Input Voltage: 24VDC +/- 10%
• Wire gauge: Minimum 18 gauge
• Direct wire run - no relays or
access control units in-between
power supply & module

Setting PTS

**Important Info**
Make sure to set PTS before finishing installation
Troubleshooting & Diagnostics
> 30V unit will shut down. Check voltage & adjust to 24 V.
< 20V unit will shut down. Check voltage & adjust to 24 V.
Verify all 3 sensor wires are installed correctly. Replace sensor if problem persists
by contacting office.
After 1st fail: 5 beeps then immediately attempts to retract again.
After 2nd fail: 5 beeps with pause in-between for 30 seconds then device
attempts to retract again.
After 3rd fail: 5 beeps every 7 minutes, device will not attempt to retract.
Device is recording it's new position and power mode after the 6th beep.
Solution
To Reset: Depress bar for 5 seconds at any time.
MM4s V
Ideo
Low Torque Mode
Average Latch Retraction Current: 600 mA
Average Holding Current: 150 mA
Standard Torque Mode
Average Latch Retraction Current: 900ma
Average Holding Current: 215 mA
High Torque Mode
Average Latch Retraction Current: 2 Amp
Average Holding Current: 250 mA
