VLP-UL-M-KIT
I N S E R T I N S T R U C T I O N S
The Command Access VLP-UL-M-KIT is a field-installable motorized latch-pullback kit
A.
D.

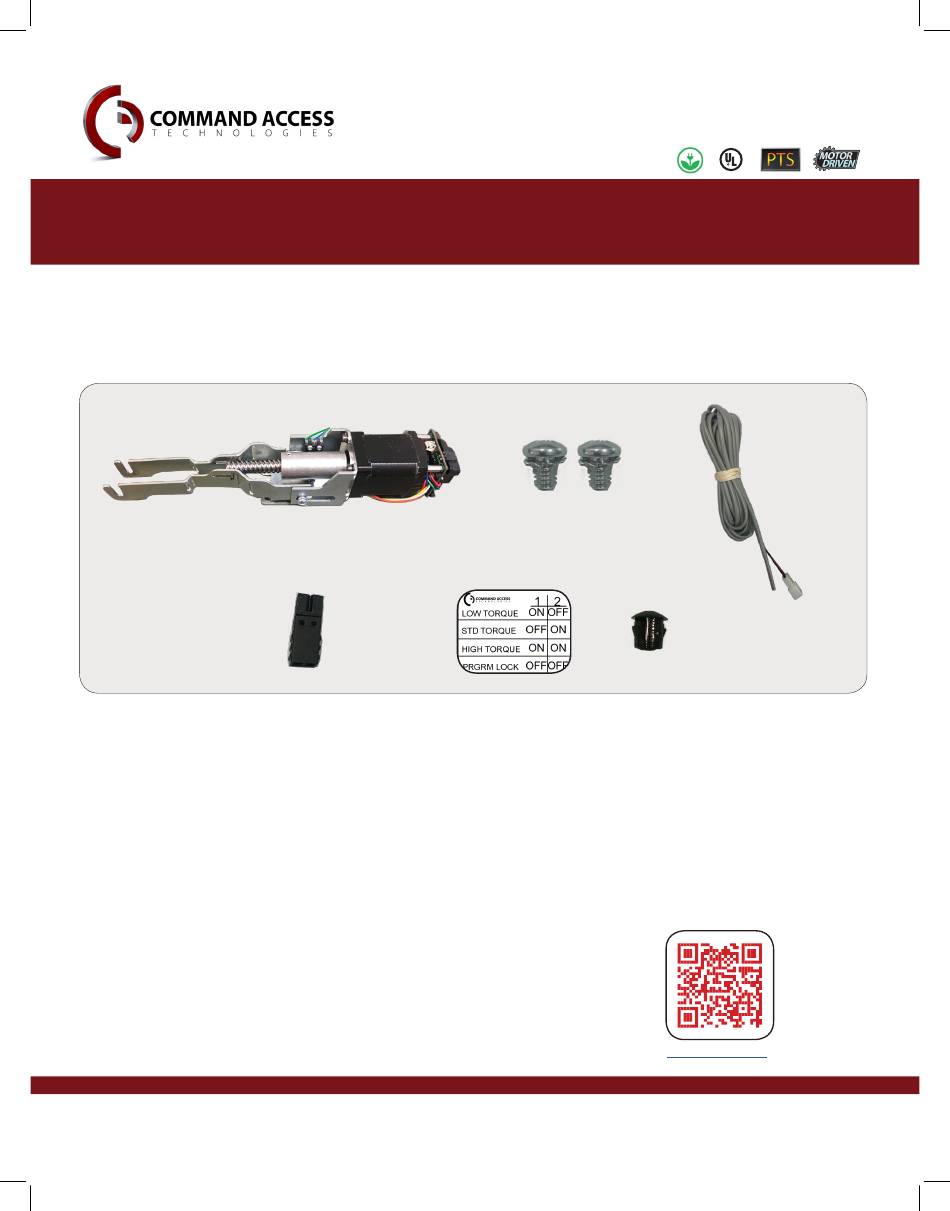

KIT IN CL U D ES
A.
1- Motor Mount w/ MM4S series module
B.
2- 8/32 X 1/4" Phillips head screws
C.
1- 8' Lead w/ VD Connector
D.
1- Push & go connector
E.
1- MM4S switch program sticker
F.
1- Dogging Hole Cap
Canada Customer Support
1-855-823-3002
for the Von Duprin 33/35 & 98/99 series devices.
B.
E.
|
TOOL S RE QUIR ED
• Cordless Drill
• Hammer & Pin Punch(recommend) or 3/16 drill bit
• 5/16 Nut driver (recommended) or Flat head screwdriver
• #2 Phillips head screwdriver
Visit our website for more details
www.CommandAccess.com
C.
F.
Watch the Video
U.S. Customer Support
1-888-622-2377
1
#20375_F
Advertisement
Related Manuals for Command access VLP-UL-M-KIT
Summary of Contents for Command access VLP-UL-M-KIT
- Page 1 VLP-UL-M-KIT I N S E R T I N S T R U C T I O N S The Command Access VLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Von Duprin 33/35 & 98/99 series devices. KIT IN CL U D ES...
-
Page 2: Technical Information
TECHNICAL INFORMATION S P E C I F I C A T I O N S • Input Voltage: 24VDC +/- 10% Add Program MM4S S witcheS • Wire gauge: Minimum 18 gauge sticker to inside • Direct wire run - no relays or access control rogram of device units in-between power supply &... - Page 3 HARDWARE Module Legend Standard Placement EcommEndEd owEr uPPliES All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. For more information click here or go to our website...
- Page 4 STEP 1 Disassemble Exit Device Remove (4) screws on head cover Remove (2) mounting brackets & (2) screws with 5/16” nutdriver. eaD cover crewS Slide off housing from baserail assembly. Remove push pad by pulling forward & then upwards. uSh PaD ouSing STEP 2 Removing Dogging Assembly -...
- Page 5 Utalizing a hmmer and pin punch or drill & 3/16” drill bit remove the (2) rivets. ivetS ivetS STEP 3 Installing Kit Keep depressed & find the bottom roll pin towards Depress the baserail’s activating brackets. the bottom of the back activating bracket. ack activating Bracket entereD...
- Page 6 ontinued STEP 3 Installing Kit Slide motor bracket underneath baserail into the Continue bringing the motor down until it’s to the back of the baserail. exsisting groves. Pull motor back if neccessaery to clear the back of the baserail Once the kit lines up with the screw holes install Connect your VD 8’...
- Page 7 STEP 4 Reassemble your device Replace push pad by placing over activating arms & Slide baseplate back into housing being careful of pushing down then back towards end of device pinching motor/REX wires. ouSing uSh PaD Replace back mounting bracket & re-install Replace front mounting bracket.
