I N S T A L L A T I O N I N S T R U C T I O N S
The Command Access VLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Von Duprin
A.
B.
C.

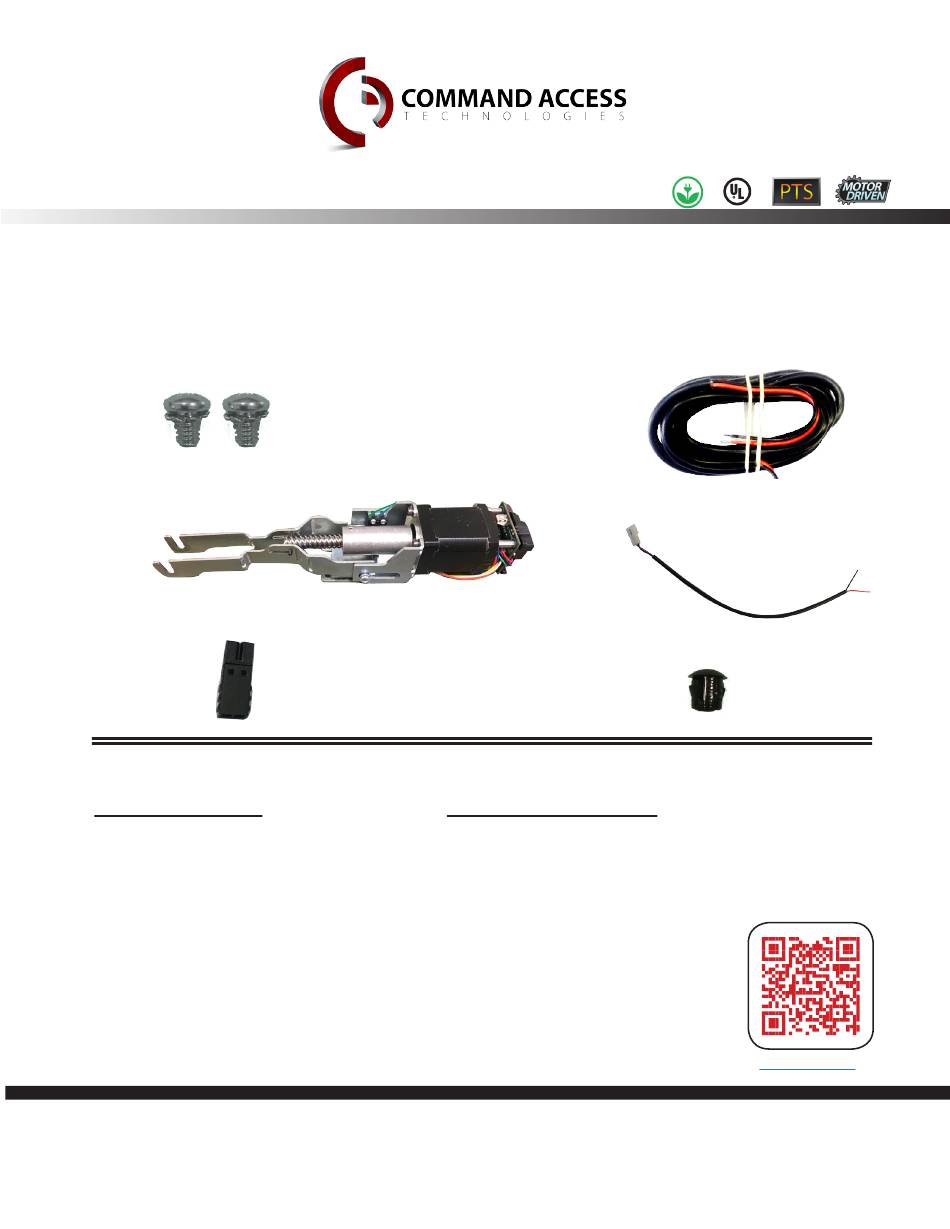

K i t I n c lude s
A.
2 - 8/32 X 1/4" Phillips head screws
B.
1 - Motor Mount w/ MM4S series module
C.
1 - Push & go connector
D.
1-8' Lead
E.
1 - VD Connector pigtail
F.
1 -Dogging Hole Cap
U.S. Customer Support
1-888-622-2377
VLP-UL-M-KIT
33/35 & 98/99 series devices.
To o l s R eq ui red
•
Cordless Drill
•
Hammer & Pin Punch(recommend) or 3/16 drill bit
•
5/16 Nut driver (recommended) or Flat head
screwdriver
•
#2 Phillips head screwdriver
Visit our website for more details
www.CommandAccess.com
D.
E.
F.
Watch the Video
Canada Customer Support
1-855-823-3002
1
#20375_A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Command access VLP-UL-M-KIT
Summary of Contents for Command access VLP-UL-M-KIT
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S The Command Access VLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Von Duprin 33/35 & 98/99 series devices.
-
Page 2: Troubleshooting
T E C H N I C A L I N F O R M A T I O N pecificationS • Input Voltage: 24VDC +/- 10% MM4S S rex S witcheS witch witch rogram • Wire gauge: Minimum 18 gauge Rating: .5A @24VAC Low Torque Mode... - Page 3 HARDWARE Module Legend Standard Placement ecommenDeD ower upplieS All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. For more information click here or go to our website...
- Page 4 STEP 1 - Disassemble Exit Device Remove head cover. Remove mounting bracket. racket eaD cover Remove (2) screws attaching bracket Remove case for device. to baserail with 5/16 nut driver or flat head screw driver. crewS Remove push pad by pulling pad guides up then moving push pad forward &...
- Page 5 STEP 2 - Removing Dogging *If you have a fire-rated device skip to step 4 Newer Baserails: Remove both Older Baserails: Remove Cylinder by screws and skip to installing the kit. pulling up. Push tabs in & pull up on locking piece.
- Page 6 Grabbing the motor kit with the attaching Once the attaching hooks have grabbed hooks facing down move towards the the pin begin to drop the back of the back activating bracket at 90° motor. Activating Arm Base Continue bringing the motor down until Slide Motor Bracket into baserail (underneath) it’s to the back of the baserail.
- Page 7 STEP 5 - Reassemble Exit Device Replace push pad by placing over Slide baseplate back into case being activating arms & pushing down then back careful of motor wires. towards end of device. uSh paD Replace bracket & attach (2) screws with Replace mounting bracket.
