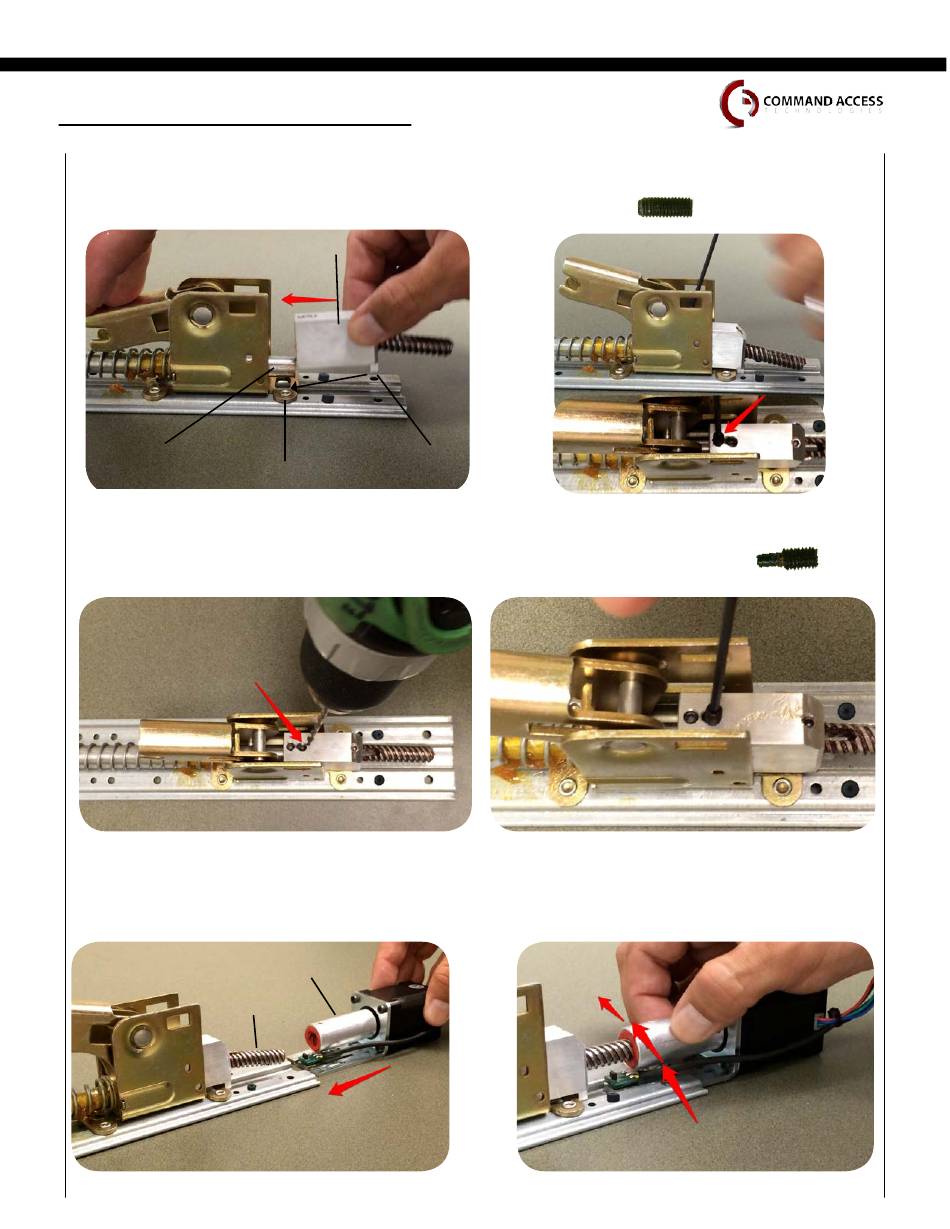

STEP 4
- Installing Kit
A.
Push Acme thread block onto metal
rod. Push until block stop hits base of
activating arm.
Acme thread block
Metal Rod
Activating Arm Base
C.
Using #30 drill bit provided, drill into
metal rod using second hole as a
bushing.
Second hole
E. Slide Motor Bracket onto baseplate going
into existing grooves in baseplate.
Acme thread
Stop
Turcite
B.
Using Hex screw (I.) install into first
hole on block using Allen wrench
provided.
D.
Install Hex screw (J.) into second hole
using Allen wrench.
F.
While sliding motor bracket into
position, feed acme thread into Turcite.
