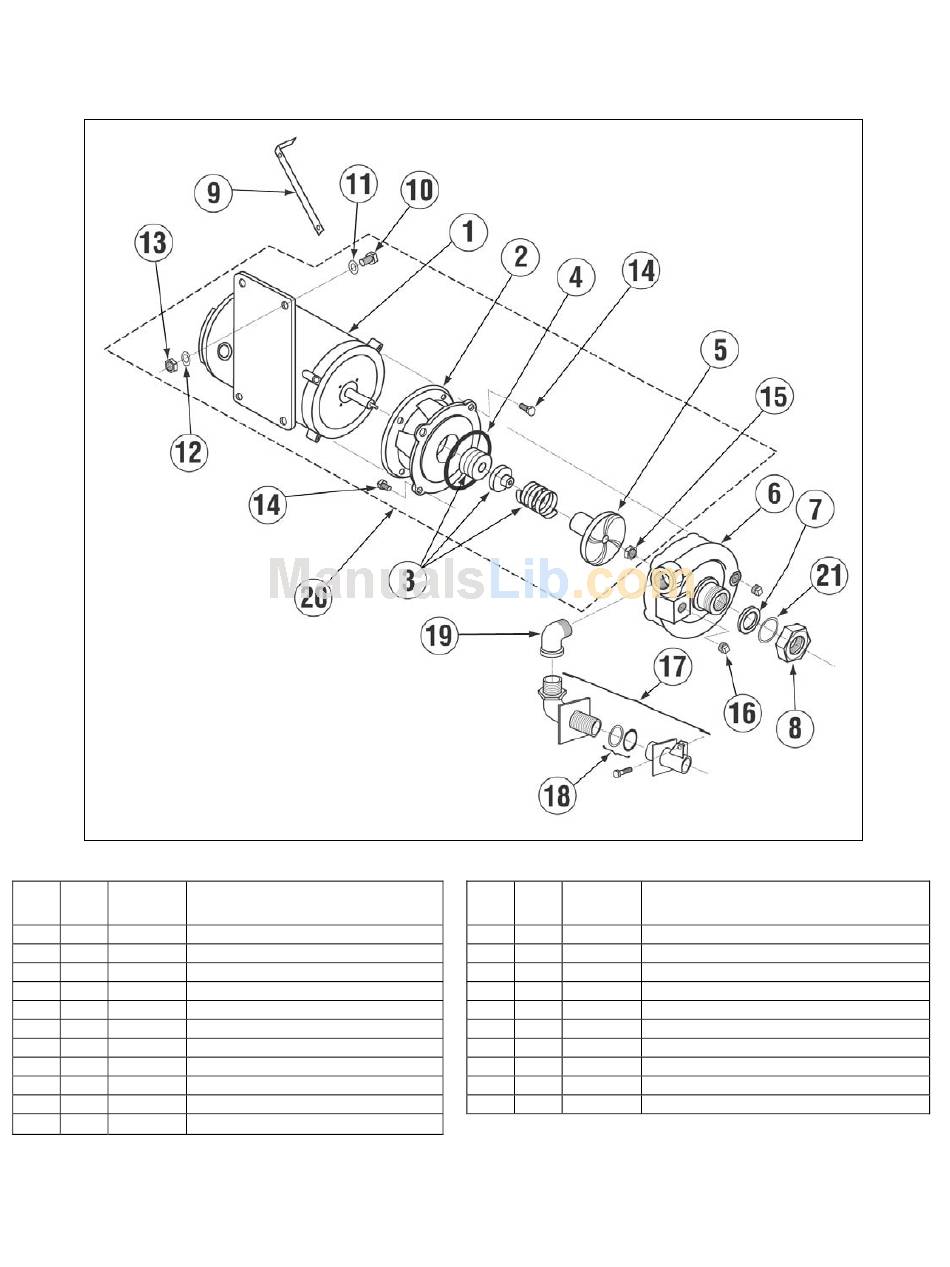

1.2.5. Pump Assembly

ITEM NO.
P/N
NO. REQ'D
1 2 00201.85 Pump Motor, 1HP, 3Ph, 60 Hz, 220V
2 2 03224.00 Pump Base Mount
3 2 00206.00 Pump Seal Kit
4 2 03226.00 Pump O-Ring Gasket
5 2 03222.85 CMA-66 Water Pump Impeller
6 2 04206.00 Pump Cover
7 2 00208.00 Slip Joint Nut Gasket
8 2 04204.00 Compression Nut, 2.5"
9 2 13916.00 Motor Support Bracket
10 4 00906.00 1/4-20 x 1/2" Hex Bolt
11 4 00922.00 1/4" Lock Star Washer
MODEL CMA-66 Part Manual rev. 1.05 01/11/05
DESCRIPTION
ITEM NO.
P/N
NO. REQ'D
12 4 00924.00 1/4" SS Washer
13 4 00912.00 1/4-20 Nylon Lock Nut
14 16 00921.00 3/8-16 x 3/4" SS Hex Head Bolt
15 2 13829.00 7/16-20 Thin Nylon Lock Nut
16 4 00238.00 3/8" Male Plug
17 2 00213.00 1" Ford Adapter, MIP x PJ Tube
18 2 00225.00 1" Compression Gasket
19 1 00704.85 1", 90° Elbow*
20 2 00200.85 Motor Assembly, 1HP, 3Ph, 220V, 60 Hz**
21 2 00208.20 Slip Joint Nut Friction Ring
*For CMA-66 R-L only.
**Includes Items 1, 2, 3, 4, 5 and 14.
