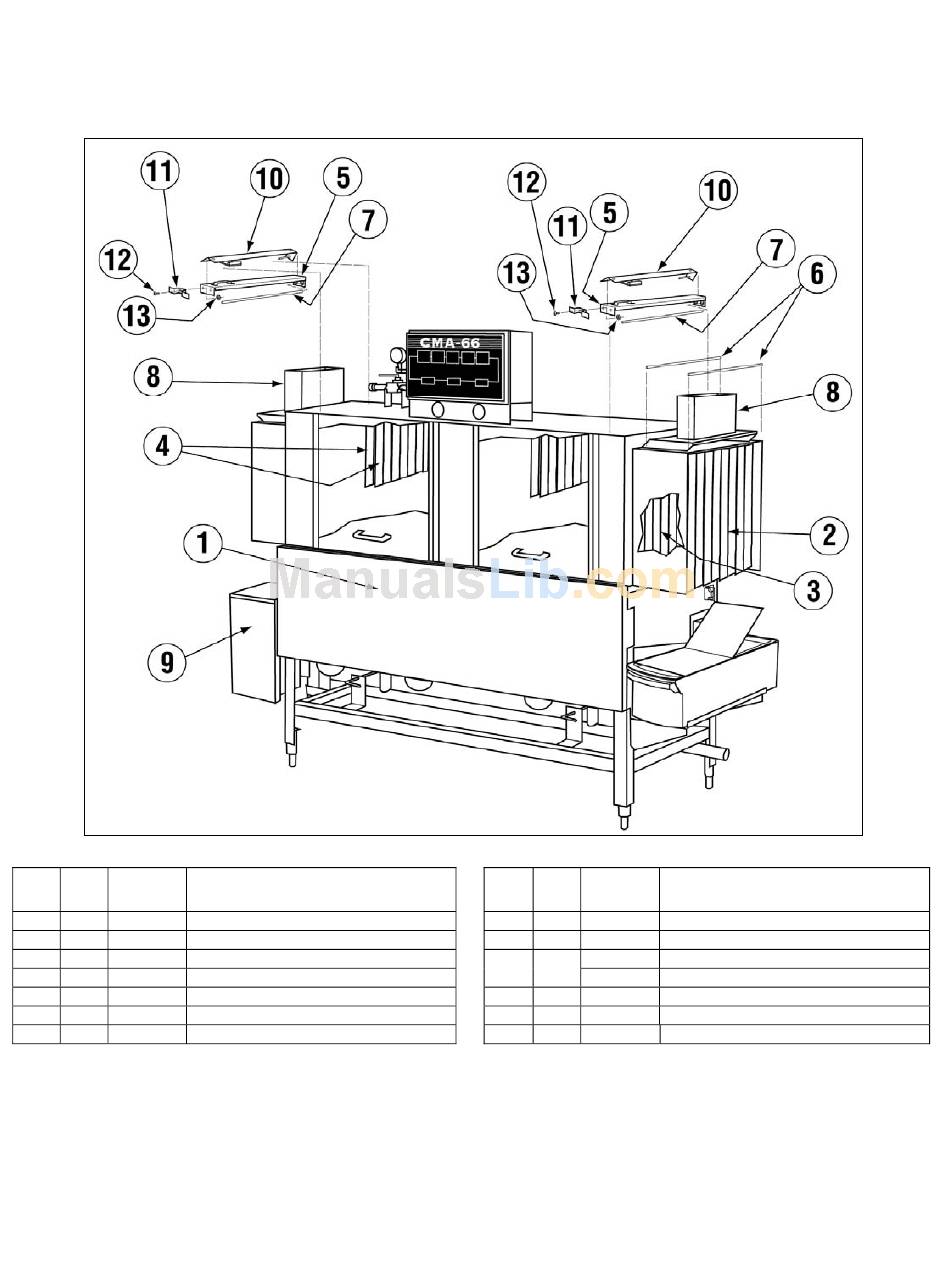

1.2.3. Curtain and Optional Vent System

ITEM NO.
P/N
NO. REQ'D
1 1 13912.82 Splash Shield
2 2 13702.25 Curtain, 20-5/8" x 15"
3 1 13702.15 Curtain, 20-5/8" x 11"
4 4 13702.30 Curtain, 24-5/8" x 15"
5 2 13704.26 Double Curtain Splash Guard Bracket
6 3 13705.00 Curtain Rod, Short
7 4 13705.10 Curtain Rod, Long
MODEL CMA-66 Part Manual rev. 1.05 01/11/05
DESCRIPTION
ITEM NO.
P/N
NO. REQ'D
8 1 13901.82 (Optional) Hood Adapter – set of 2
9 1 13932.06 (Optional) Conveyor Motor Cover Kit
10 2 13704.16 Dual Curtain Holder (Right to Left)
13704.36 Dual Curtain Holder (Left to Right)
11 2 13704.46 Dual Curtain Rod Stop
12 4 00907.00 6-32 x 1/2" Pan Head Screw
13 4 00965.00 6-32 Nylon Lock Nut
DESCRIPTION
7
