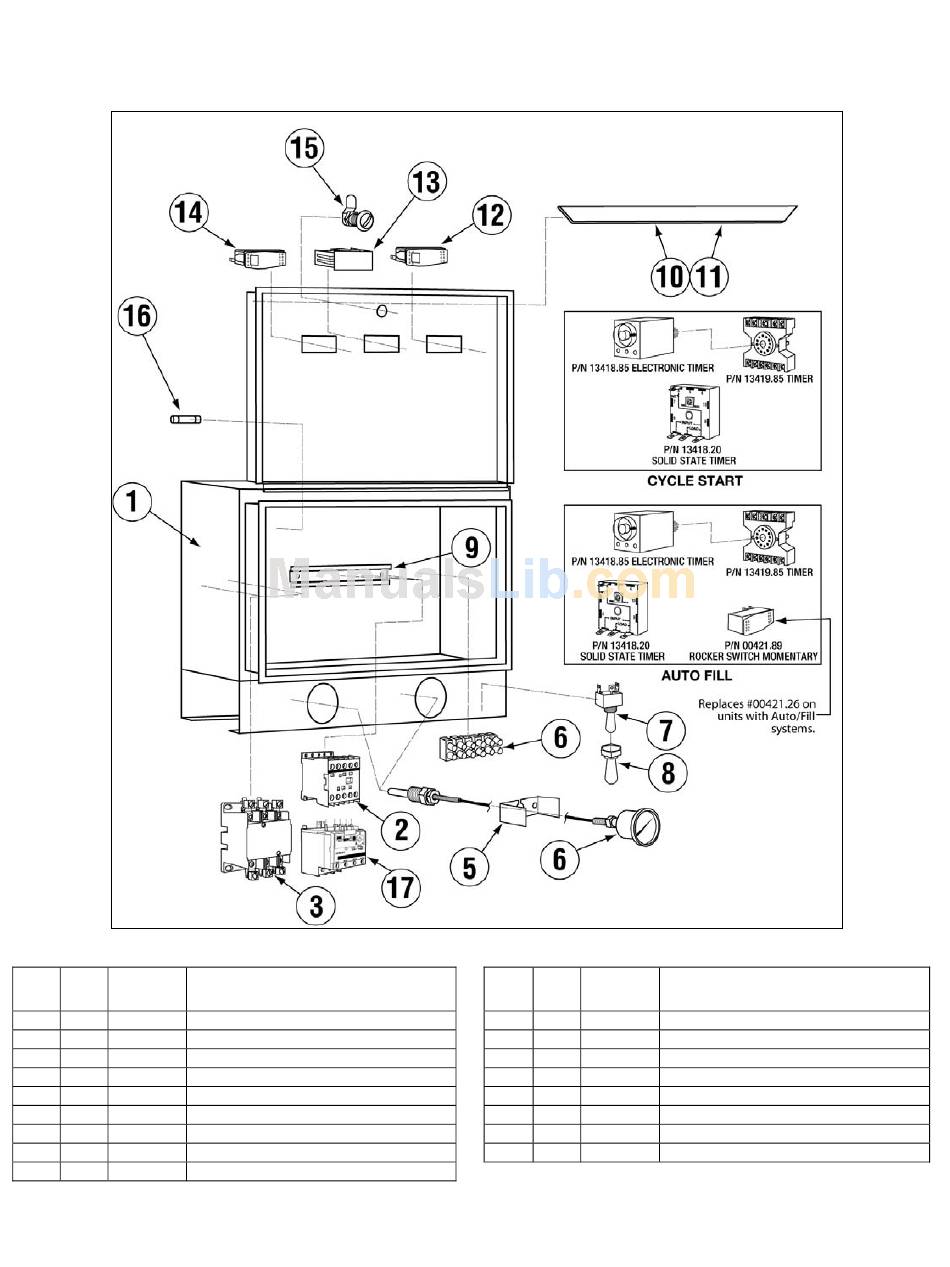

1.2.2. Control Box Assembly

ITEM NO.
P/N
NO. REQ'D
1 1 13904.06 Control Box w/Lid
2 4 13012.26 Motor Contactor, 220V
3 2 13003.50 Contactor, 30-Amp
4 2 03202.00 Thermometer
5 2 03202.08 Thermometer Bracket
6 1 00454.06 6-Pole Terminal Block
7 1 13003.70 Timer Relay Override Switch
8 1 00470.10 Toggle Switch Rubber Boot
9 1 13003.60 Starter DIN Rail
MODEL CMA-66 Part Manual rev. 1.05 01/11/05
DESCRIPTION
ITEM NO.
P/N
NO. REQ'D
10 2 17503.17 Control Box Sponge, Long
11 2 17503.18 Control Box Sponge, Short
12 1 00421.87 Rocker Switch, White
13 1 00421.26 Rocker Switch Hole Plug
14 1 00421.83 Power Rocker Switch, Red
15 1 00449.50 Lock, Keyless
16 2 13403.26 Fuse, 3-Amp/250V Slow Blow
17 1 13013.30 1/3 HP Overload Relay 1.2amp-1.8Amp
DESCRIPTION
