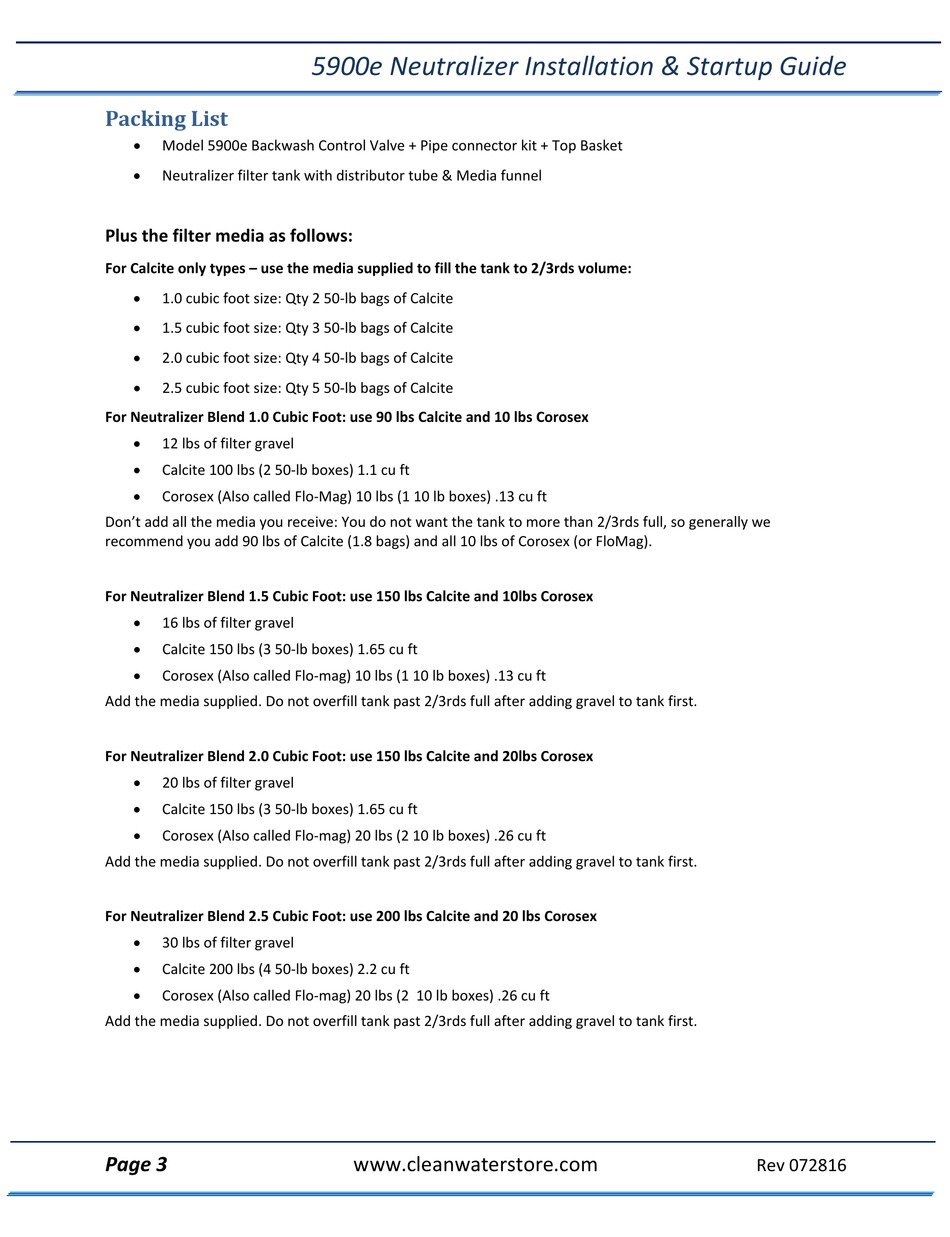

Packing List - Clean Water Systems 5900e Installation & Start?Up Manual

Packing List

Model 5900e Backwash Control Valve + Pipe connector kit + Top Basket

Neutralizer filter tank with distributor tube & Media funnel
Plus the filter media as follows:
For Calcite only types – use the media supplied to fill the tank to 2/3rds volume:

1.0 cubic foot size: Qty 2 50‐lb bags of Calcite

1.5 cubic foot size: Qty 3 50‐lb bags of Calcite

2.0 cubic foot size: Qty 4 50‐lb bags of Calcite

2.5 cubic foot size: Qty 5 50‐lb bags of Calcite
For Neutralizer Blend 1.0 Cubic Foot: use 90 lbs Calcite and 10 lbs Corosex

12 lbs of filter gravel

Calcite 100 lbs (2 50‐lb boxes) 1.1 cu ft

Corosex (Also called Flo‐Mag) 10 lbs (1 10 lb boxes) .13 cu ft
Don't add all the media you receive: You do not want the tank to more than 2/3rds full, so generally we
recommend you add 90 lbs of Calcite (1.8 bags) and all 10 lbs of Corosex (or FloMag).
For Neutralizer Blend 1.5 Cubic Foot: use 150 lbs Calcite and 10lbs Corosex

16 lbs of filter gravel

Calcite 150 lbs (3 50‐lb boxes) 1.65 cu ft

Corosex (Also called Flo‐mag) 10 lbs (1 10 lb boxes) .13 cu ft
Add the media supplied. Do not overfill tank past 2/3rds full after adding gravel to tank first.
For Neutralizer Blend 2.0 Cubic Foot: use 150 lbs Calcite and 20lbs Corosex

20 lbs of filter gravel

Calcite 150 lbs (3 50‐lb boxes) 1.65 cu ft

Corosex (Also called Flo‐mag) 20 lbs (2 10 lb boxes) .26 cu ft
Add the media supplied. Do not overfill tank past 2/3rds full after adding gravel to tank first.
For Neutralizer Blend 2.5 Cubic Foot: use 200 lbs Calcite and 20 lbs Corosex

30 lbs of filter gravel

Calcite 200 lbs (4 50‐lb boxes) 2.2 cu ft

Corosex (Also called Flo‐mag) 20 lbs (2 10 lb boxes) .26 cu ft
Add the media supplied. Do not overfill tank past 2/3rds full after adding gravel to tank first.
Page 3
5900e Neutralizer Installation & Startup Guide
www.cleanwaterstore.com
Rev 072816
