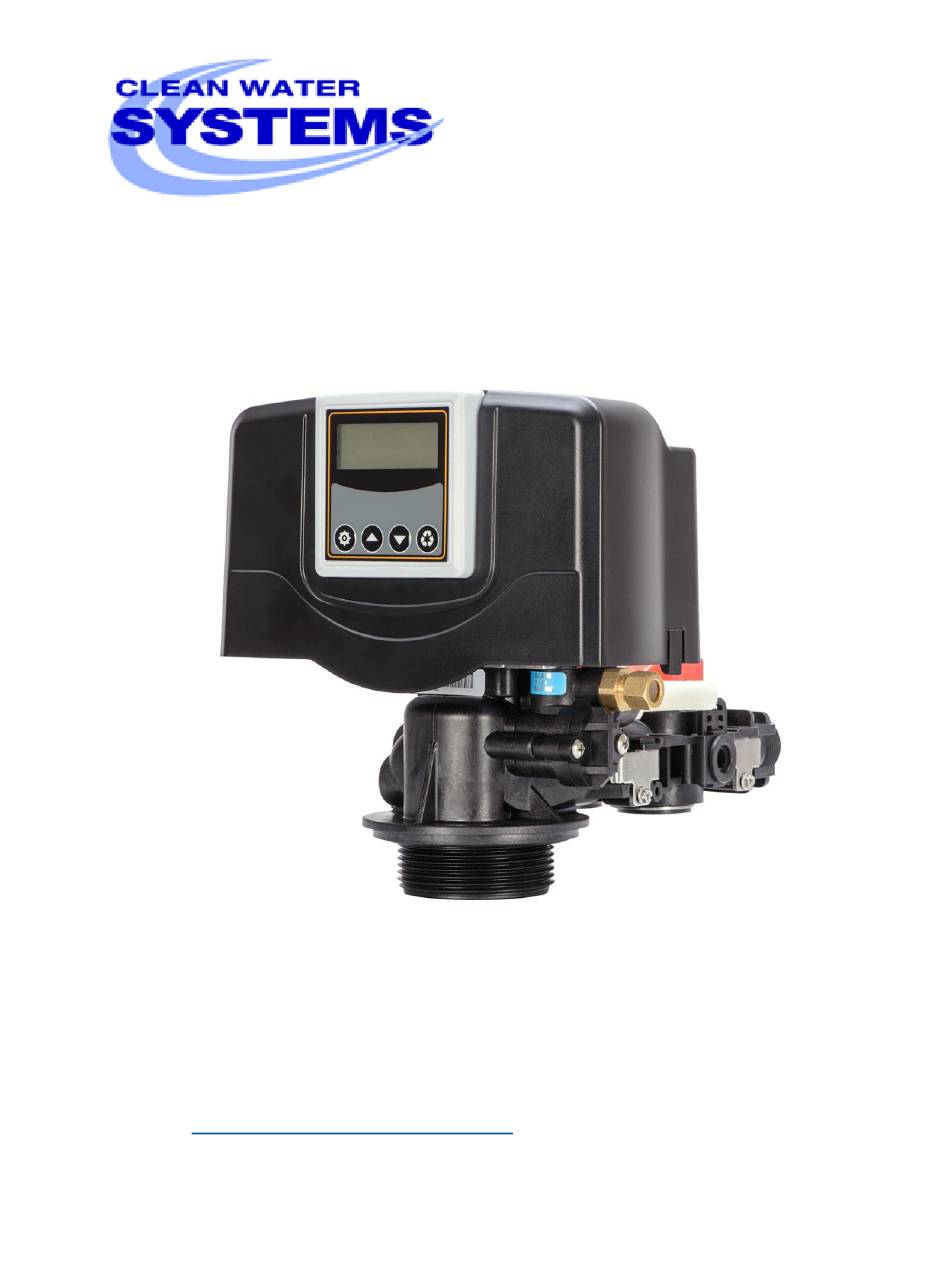

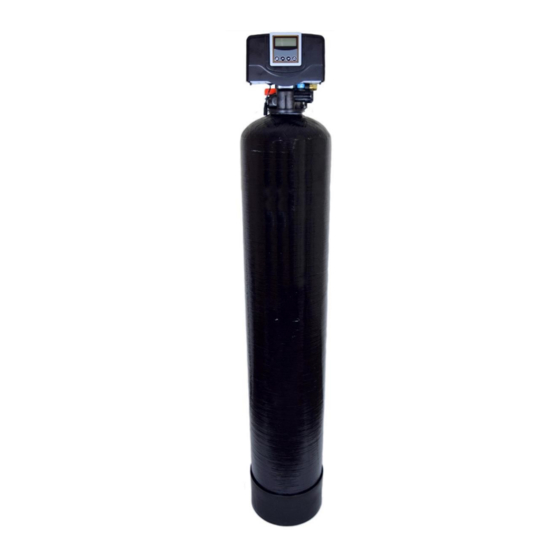

- Page 1 Clean Water Made Easy http://www.cleanwaterstore.com 5700-E Programming Guide Questions? Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500 Email us: support@cleanwaterstore.com See more information on our website: www.cleanwaterstore.com...
-
Page 2: Normal Operation
Normal Operation Time Mode: Home screen will display days and hours left until the unit regenerates. Meter Mode: Meter mode tracks the number of gallons used instead of regenerating on a specific time. In this mode immediate regeneration will occur once the unit hits its target calculated number of gallons based on hardness settings. - Page 3 Meter & Timed Meter Menus The following menus will allow you to change the current time, unit hardness, and calendar day override settings within the Meter and Timed Meter Modes. Current Time settings: Press the gear to begin menus. Current time and period of the day will be flashing.
- Page 4 Meter and Time Meter Menus continued.. Calendar Day Override setting: Allows user to set a time to regenerate by if the unit hasn’t met its set meter amount within that time period. Pressing the Regen button allows you to change the days. Default setting is 0 days, but can range from 0-99 days.
- Page 5 Time Menus The following menus will let you change the Current Time and the Regeneration Day for Time Mode only. Current Time settings: Press gear to begin menus. Current time and period of the day will be flashing. After pressing the Regen button, only the hour portion will be flashing.
-
Page 6: Advanced Menus
Time Menus Continued.. Using the up and down arrows, you can set the number of days you wish to have between regenerations. The unit has a range of 1-99 days. Default setting is 7 days. Advanced Menus Within the Advance Menus the Regeneration Mode, Regeneration Cycle Period Lengths, and Unit Capacity are adjustable. - Page 7 Advanced Menus Continued.. After selecting the mode, the time of day the unit is set to regenerate will appear. Pressing the Regen button will allow the time to be changed. Use the up and down arrows to adjust the hours and A.M.
- Page 8 Advanced Menus Continued.. Total minutes the unit draws brine will be flashing. Unit can be set anywhere from 0-99 minutes. This menu displays Rapid Rinse settings. RR will be present and P3- 12 will be flashing. Total minutes the unit rinses will be flashing.
-
Page 9: Immediate Regeneration
Advanced Menus Continued.. This last menu is to change the unit’s capacity. Unit has a range of 1-199 Capacity (for Meter and Timed Meter Modes only). Multiply capacity setting by 1000 to get grains. Example: A setting of 064 is equal to 64,000 grain capacity. -
Page 10: Restore Factory Settings
Restore Factory Settings Hold the Regen button while plugging in the power supply to the unit. After the unit has powered up release Regen button. Next press the Regen button again to select no next to reset. Using the down arrow, scroll to yes. -
Page 11: Power Head Assembly
POWER HEAD ASSEMBLY Part number 20563E100... -
Page 12: Valve Body Assembly
VALVE BODY ASSEMBLY... - Page 13 Qty. Req’d. Ref. Number Part Number Part Description 20561X250 Screw - Hex Hd. 10-24 x 1/2" 20561X249 End Plug Retainer 20561X254 Piston & End Plug Assy. 20561X253 Seal & Spacer Kit 20561X203 Body - Softener Only 20561X256 Straight Hose Barb 20561X204 O Ring - Dist.
