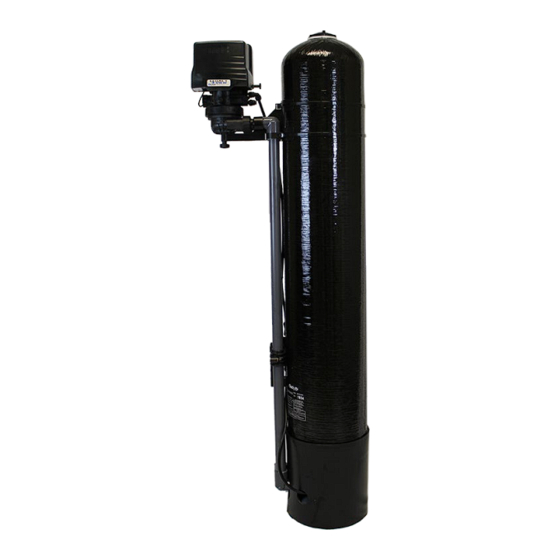

Air Sulfur Filter 5900BT-AIR Installation & Maintenance Guide
Sulfur Odor Filter 5900BT-SIDE-AIR Installation &
Maintenance Guide
Thank you for purchasing a Clean Water System!
With proper installation and a little routine maintenance
your system will be providing odor-free water for many
years.
Please review this start-up guide entirely before beginning
to install your system and follow the steps outlined for
best results.
CARBON MEDIA CONTAINS DUST.
USE PAPER MASK AND VENTILATE TO
AVOID BREATHING DUST.
Minimum 30 PSI required. Maximum pressure 90 PSI.
For indoor installation. Protect from sunlight, rain, and
freezing.
Installation Video
2806-A Soquel Ave Santa Cruz CA 95062
For assistance call: 1-831-462-8500 M-F 8AM to 4PM PST
Email us:
office@cleanwaterstore.com
More information online:
Page 1
www.cleanwaterstore.com
support@cleanwaterstore.com
Clean Water Made Easy
www.cleanwaterstore.com
rev 030722
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Clean Water Systems 5900BT-SIDE-AIR
Summary of Contents for Clean Water Systems 5900BT-SIDE-AIR
- Page 1 Air Sulfur Filter 5900BT-AIR Installation & Maintenance Guide Clean Water Made Easy www.cleanwaterstore.com Sulfur Odor Filter 5900BT-SIDE-AIR Installation & Maintenance Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing odor-free water for many years.
-
Page 2: Table Of Contents
Air Sulfur Filter 5900BT-AIR Installation & Maintenance Guide Contents Packing Lists ....................................3 How Your Air Charger Sulfur Filter 5900BT-AIR Works ......................... 4 Note About Aeration ..................................4 Pre-Installation Notes ................................... 4 Best Practices for Piping & Drain Installation ..........................5 Mounting the Valve on to the Tank .............................. -
Page 3: Packing Lists
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Packing Lists 1.5 Cubic Foot Size System Air Charger Sulfur Filter 5900BT-AIR control valve w/ bypass assembly and 1” pipe connector kit 10” x 54” standard filter tank with distributor tube Media funnel for adding Air Charger Sulfur Filter media 1.5 cubic feet of Catalytic Carbon media... -
Page 4: How Your Air Charger Sulfur Filter 5900Bt-Air Works
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup How Your Air Charger Sulfur Filter 5900BT-AIR Works The Sulfur 5900-BT-SIDE-AIR control valve maintains a compressed “air pocket” in the filter free space top of the tank while system is in service. As the water passes through the air pocket, iron is oxidized. Additionally, dissolved oxygen is added to the water. -
Page 5: Best Practices For Piping & Drain Installation
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Best Practices for Piping & Drain Installation 1. The Sulfur Side AIR filter is installed after the pressure tank. 2. Install on a level floor or surface. 3. Filter system must be installed at least 10 feet ahead of inlet to water heater to prevent damage due to back-up hot water or use a check valve to prevent hot water back-up. -
Page 6: Mounting The Valve On To The Tank
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Mounting the Valve on to the Tank Page 6 support@cleanwaterstore.com rev 030722... -
Page 7: Add Media And Connect Piping
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Add Media and Connect Piping 1. Make sure control valve is mounted and blue bypass valves are closed 2. Remove cap (1) and pour gravel in first, then add catalytic carbon filter media to Tank (3) followed by the KDF cubes on top of the carbon media. -
Page 8: Typical Installation
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Typical installation (Note: install hose bib after Side Air) Attach the Bypass Make sure there is lubricant on all three sets of O-rings and insert and screw bypass onto end connectors (O- rings are already on valve, with the Inlet Air Check Valve on the left, Inlet side). -
Page 9: Install 9V Battery (Not Included)
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Install 9V Battery (not included) DO NOT INSTALL BATTERY UNTIL AFTER INITIAL BACKWASH! Connect 9V battery to battery cable under control panel. During power failures the battery will maintain the time of day if the battery has power. The display is turned off to conserve battery power during this time. -
Page 10: Program Your Valve: Master Programming Mode
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Program Your Valve: Master Programming Mode 1. Regeneration Time (r) Press the Menu/Enter Button. To enter Master Programming Mode press and hold both buttons for 5 seconds. “Regeneration” refers to the backwash/air-draw/rinse cycles. The next display viewed is the option setting for Regeneration Time. -
Page 11: See Historical Data And Real Time Flow Rate
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup See Historical Data and Real Time Flow Rate Pressing and holding the Menu/Enter button will also access some options: Flo- This is the flow rate, if water is running, it will display the volume, in gallons per minute. - Page 12 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup 10. After several minutes, you should have the valve fully open, and with no media coming out. The water will be black, turning to gray, mostly clear water- the water does not get crystal clear in the Backwash mode (only at the end of Rapid Rinse and during Service).
-
Page 13: Optional Peroxide Side Tank System
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Optional Peroxide Side Tank System The peroxide side tank feature allows peroxide to be drawn during Air Draw cycle. In the Legacy View App this is referred to as “Pulse Chlorine Setting”... -
Page 14: Optional Ozone Oxy-03
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Optional Ozone OXY-03 Hang the Ozone Complete by sliding its hooks down into Injector Bracket. No screws required. Connect Blue Tubing Connect plug to “B” Port on Control valve and plug ozone generator into wall outlet. - Page 15 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup For simplified set up and control, please install the Legacy View on a compatible Bluetooth 4.0+ enabled smart phone or tablet. Note that times and settings EXCEPT the Air Draw minutes can be set or adjusted.
- Page 16 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup From the Dashboard, all items in ORANGE can be changed (except Air Draw, do that directly on the control valve, see Page 13 – 14), while blue fields are informational only. If you are unsure about the function of the field, click the Info icon for more information Change Time of day (Press “set”...
- Page 17 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup From the Advanced Settings, all items in ORANGE with a “set” button can be changed. Touch any table to explode a detailed list of the last 60 days. Status and History Using Legacy View App...
-
Page 18: How To Start A Manual Backwash
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Option 1: Click on “Regenerate Unit Now.” If you would like to force the unit into the next cycle step, Click “Go to next Regeneration Step.” Option 2: “Regenerate Unit at next Regen Time” button. -
Page 19: Troubleshooting Chart
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup on water quality and usage. Once a year clean the air injector (see page 28) for exploded view. If you are using the chem draw feature, clean the chem draw injector Troubleshooting Chart... -
Page 20: Side Air Control Valve Powerhead Assembly
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Error 2 - Homing slot expected. Valve will start looking for home. (Normal operation continues) Error 3 - Encoder is not sending a signal (Either encoder chip has failed, or is not connected) - Page 21 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup e Inscsiwater.com DESCRIPTION PART NO. Powerhead Assy. 22015X100 Circuit Board Assy. 22015X101 Encoder 20001X124 Page 21 support@cleanwaterstore.com rev 030722...
- Page 22 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Front Plate 20001X004 Encoder Wheel 20001X007 Main Gear 21001X120 Power Supply 20001X125 Back Plate 20001X005 Lower Front Base For Cover 20111X002 Microswitch 20251X113 Switch Spacer 20111X004 Brine Motor Mount 20111X006 Legacy View Motor Assy.
-
Page 23: Side Air Valve Body Assembly
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Side Air Valve Body Assembly Page 23 support@cleanwaterstore.com rev 030722... - Page 24 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup DESCRIPTION PART NO. Piston Assembly Final Rinse 20009X231 10-24 X 3/4” Screw SST 20001X001 Seal and Spacer Kit 20561X253 End Spacer Flow Control Button 5.0 GPM 20251X272 Flow Control Button 7.0 GPM...
-
Page 25: Tank Assembly
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Tank Assembly Page 25 support@cleanwaterstore.com rev 030722... - Page 26 Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Description Part No. Tank Cap Q-7004 Tank Distributor Tube (per foot) 33012X001 10” Black Tank 31054X000 13” Black Tank 31354X000 10” Zip Tie 13” Zip Tie Tank Bracket 20015X011 Basket 33000X000 Tank Adapter 20015X008 13”...
-
Page 27: Limited Warranty
Air Charger Sulfur Filter 5900BT-SIDE-AIR Installation & Startup Limited Warranty We warrant this water filter/ softener/ conditioner, when installed according to factory recommendations, to be free from defects in materials and workmanship as follows: ----------Limited Warranty---------- This water conditioner unit is comprised of the finest industry components available. Each individual component used in the assembly of our equipment is covered by the original equipment manufacturer’s warranty.
