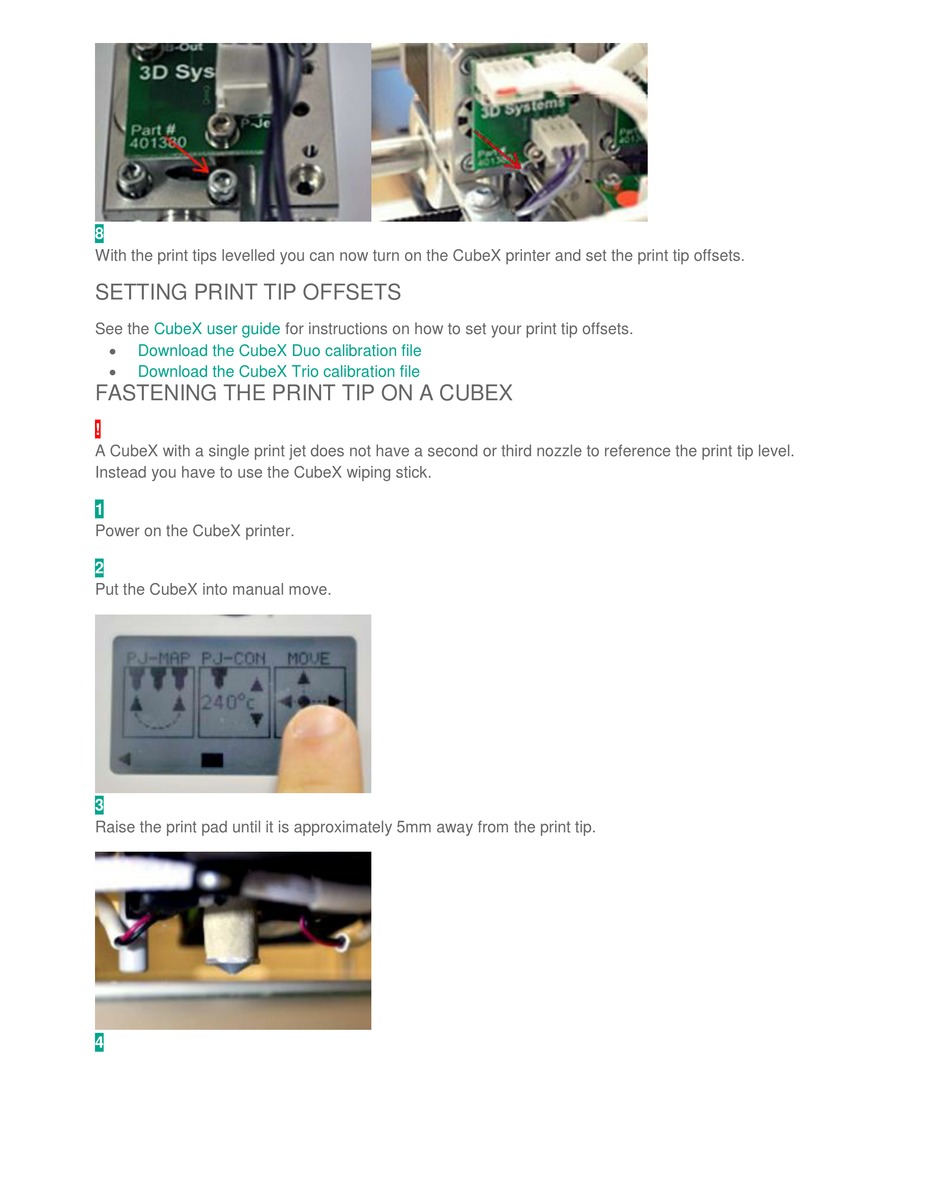

Setting Print Tip Offsets; Fastening The Print Tip On A Cubex - 3D Systems CubeX Print Tip Replacement

8
With the print tips levelled you can now turn on the CubeX printer and set the print tip offsets.

SETTING PRINT TIP OFFSETS

See the CubeX user guide

Download the CubeX Duo calibration file

Download the CubeX Trio calibration file

FASTENING THE PRINT TIP ON A CUBEX

!
A CubeX with a single print jet does not have a second or third nozzle to reference the print tip level.
Instead you have to use the CubeX wiping stick.
1
Power on the CubeX printer.
2
Put the CubeX into manual move.
3
Raise the print pad until it is approximately 5mm away from the print tip.
4
for instructions on how to set your print tip offsets.
