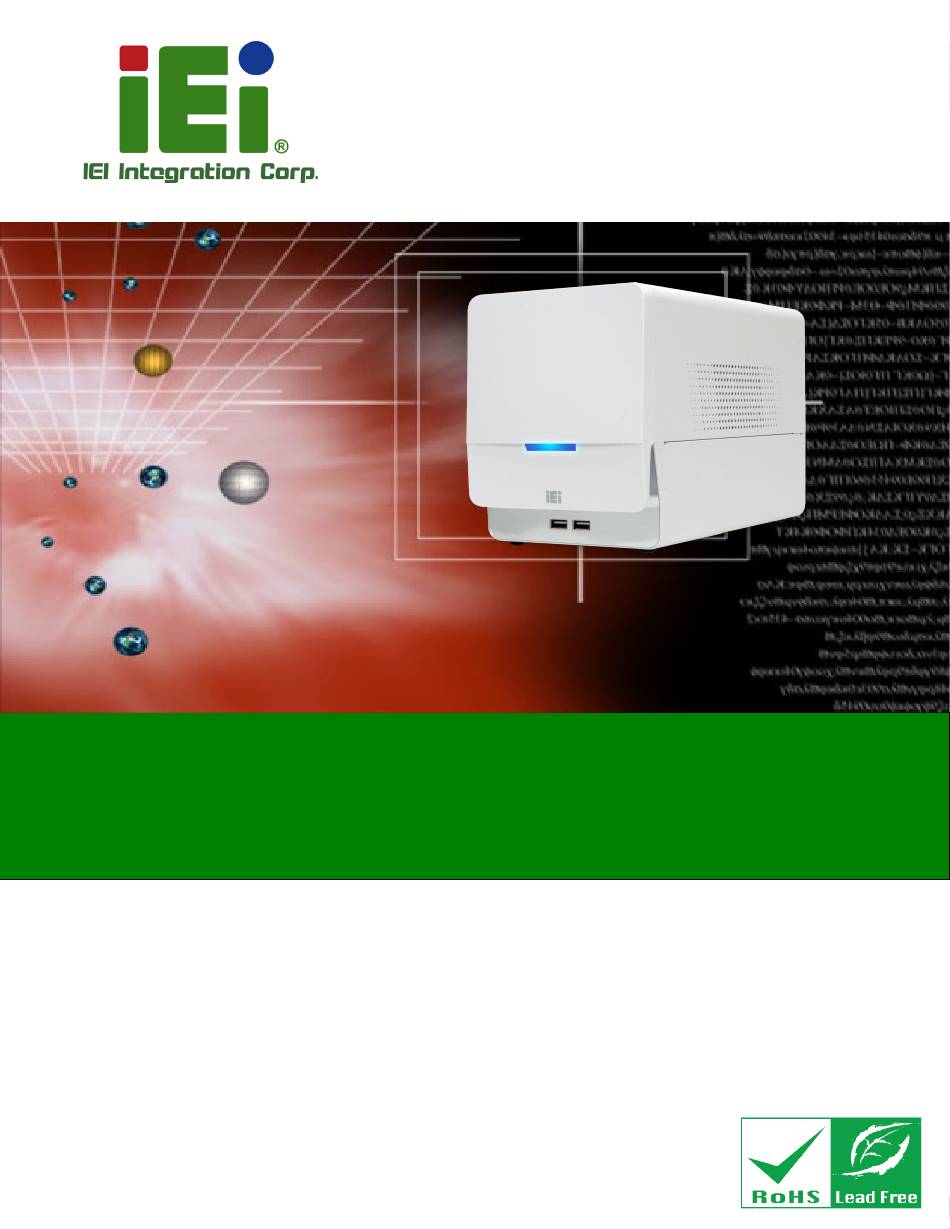

HTB-200-C236 Embedded System

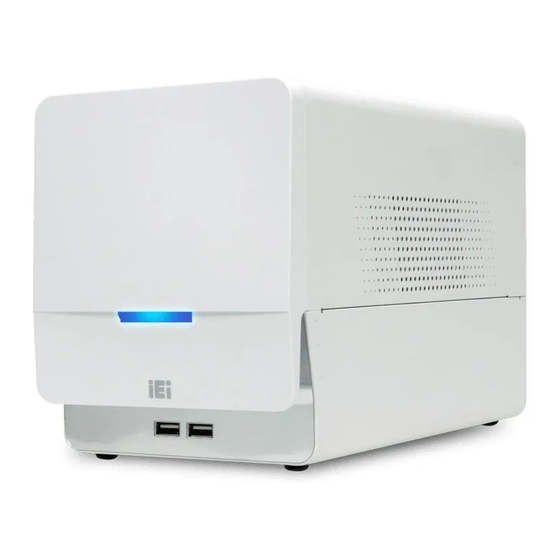

HTB-200-C236 Box PC
MODEL:
MODEL:
HTB-200-C236
Embedded System with Intel® Xeon® E3-1268L v5 /
Core™ i5-7500T Processor, DDR4, RS-232/422/485,
GbE LAN, HDMI, USB 3.2 Gen 1, PCIe x16/x4 and RoHS
User Manual
Page i
Rev. 1.00 – January 8, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTB-200-C236 and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology HTB-200-C236

Summary of Contents for IEI Technology HTB-200-C236

  • Page 1 HTB-200-C236 Embedded System HTB-200-C236 Box PC MODEL: MODEL: HTB-200-C236 Embedded System with Intel® Xeon® E3-1268L v5 / Core™ i5-7500T Processor, DDR4, RS-232/422/485, GbE LAN, HDMI, USB 3.2 Gen 1, PCIe x16/x4 and RoHS User Manual Page i Rev. 1.00 – January 8, 2020...
  • Page 2 HTB-200-C236 Embedded System Revision Date Version Changes January 8, 2020 1.00 Initial release Page ii...
  • Page 3 HTB-200-C236 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 HTB-200-C236 Embedded System Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    HTB-200-C236 Embedded System Table of Contents 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 F ........................2 EATURES 1.3 M ....................3 ODEL ARIATIONS 1.4 F ......................3 RONT ANEL 1.5 R ....................... 4 ANEL 1.6 B ......................4...
  • Page 6 HTB-200-C236 Embedded System 3.9.2 Power-on Procedure ..................27 3.10 A ....................29 VAILABLE RIVERS 3.10.1 Driver Download ................... 29 4 BIOS ..........................31 4.1 I ......................32 NTRODUCTION 4.1.1 Starting Setup ....................32 4.1.2 Using Setup ...................... 32 4.1.3 Getting Help ..................... 33 4.1.4 Unable to Reboot after Configuration Changes ..........
  • Page 7 HTB-200-C236 Embedded System 4.5 S ......................... 66 ECURITY 4.6 B ........................67 4.7 S & E ......................69 5 TROUBLESHOOTING AND MAINTENANCE ............. 70 5.1 HTB-200-C236 S ..........71 YSTEM AINTENANCE VERVIEW 5.2 S ..................71 YSTEM ROUBLESHOOTING 5.2.1 The System Doesn’t Turn On ................71 5.2.2 The System Doesn’t Boot Up ................
  • Page 8 HTB-200-C236 Embedded System E.2 DXE B ....................98 ODES F HAZARDOUS MATERIALS DISCLOSURE ............99 F.1 R HS II D (2015/863/EU) ..............100 IRECTIVE F.2 C HS ......................101 HINA Page viii...
  • Page 9 HTB-200-C236 Embedded System List of Figures Figure 1-1: HTB-200-C236 AI Box PC ................... 2 Figure 1-2: Front Panel ........................3 Figure 1-3: Rear Panel ........................4 Figure 1-4: Bottom Panel ....................... 4 Figure 1-5: Dimensions (mm) ......................7 Figure 3-1: Top Cover Retention Screws ................... 14 Figure 3-2: HDD Access Panel Retention Screws ..............
  • Page 10 HTB-200-C236 Embedded System List of Tables Table 1-1: Model Variations ......................3 Table 1-2: Technical Specifications ....................6 Table 2-1: Package List ........................ 10 Table 3-1: PCIe Mini Card Slot – Full Size (MSATA1) Pinouts ..........22 Table 3-2: BIOS Switch Settings ....................25 Table 3-3: PCIe x16 Channel Mode Setup ..................
  • Page 11 HTB-200-C236 Embedded System List of BIOS Menus BIOS Menu 1: Main ........................34 BIOS Menu 2: Advanced ......................35 BIOS Menu 3: CPU Configuration ....................36 BIOS Menu 4: PCH-FW Configuration ..................38 BIOS Menu 5: ACPI Configuration ....................39 BIOS Menu 6: F81866 Super IO Configuration ................

  • Page 13: Introduction

    HTB-200-C236 Embedded System Chapter Introduction Page 1...

  • Page 14: Overview

    Core™i5-7500T processor. It is designed for applications that require reliable operating and easy maintenance features. The HTB-200-C236 provides one PCIe x16 slot and one PCIe x4 slot for building AI applications by installing IEI Mustang accelerator cards. Its I/O interfaces include two USB 3.2 Gen 1 ports, two USB 2.0 ports, two GbE, and one HDMI.

  • Page 15: Model Variations

    HTB-200-C236 Embedded System 1.3 Model Variations There are two models in the HTB-200-C236 series. The model variations are listed in Table 1-1 below. Processor Memory HTB-200-C236-XE/32G/2A Intel® Xeon® E3-1268L v5 2 x 16 GB DDR4 (2.4 GHz, quad-core, 35W TDP) HTB-200-C236-i5/16G/2A Intel®...

  • Page 16: Rear Panel

    HTB-200-C236 Embedded System 1.5 Rear Panel The rear panel of the HTB-200-C236 provides access to the following external I/O connectors, button and expansion slots as shown in Figure 1-3. Figure 1-3: Rear Panel 1.6 Bottom Panel The bottom panel has a HDD access panel for HDD installation or replacement.

  • Page 17: Technical Specifications

    HTB-200-C236 Embedded System 1.7 Technical Specifications The specifications for the Intel based embedded systems are listed below. HTB-200-C236 ® Intel® Xeon E3-1268L v5 (2.4 GHz, quad-core, 35W TDP) Intel® Core™ i5-7500T (2.7 GHz, quad-core, 35W TDP) Chipset ® Intel C236...

  • Page 18: Table 1-2: Technical Specifications

    HTB-200-C236 Embedded System Operating Shock Half-sine wave shock 5G; 11ms; 100 shocks per axis Operating Vibration MIL-STD-810G 514.6C-1 (with SSD) Operating Temperature 0ºC–35ºC Storage Temperature -20ºC–60ºC Humidity 10%–95%, non-condensing Net Weight 2.8 kg Dimensions (W x D x H) 140 mm x 277 mm x 175 mm...

  • Page 19: Dimensions

    HTB-200-C236 Embedded System 1.8 Dimensions The dimensions of the HTB-200-C236 are shown in Figure 1-5. Figure 1-5: Dimensions (mm) Page 7...

  • Page 20: Unpacking

    HTB-200-C236 Embedded System Chapter Unpacking Page 8...

  • Page 21: Unpacking

    Contact the IEI reseller or vendor the HTB-200-C236 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com. The HTB-200-C236 embedded system is shipped with the following components: Page 9...

  • Page 22: Table 2-1: Package List

    HTB-200-C236 Embedded System Quantity Item Image HTB-200-C236 embedded system Power cord 180 W power adapter Screws (M3*4) for HDD installation Table 2-1: Package List Page 10...

  • Page 23: Installation

    HTB-200-C236 Embedded System Chapter Installation Page 11...

  • Page 24: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the HTB-200-C236. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the HTB-200-C236 is accessed internally, or any other...

  • Page 25: Installation Precautions

    HTB-200-C236. The HTB-200-C236’s cooling vents must not be obstructed by any objects. Blocking the vents can cause overheating of the HTB-200-C236. Leave at least 5 cm of clearance around the HTB-200-C236 to prevent overheating. Grounding: The HTB-200-C236 should be properly grounded. The voltage ...

  • Page 26: Opening Top Cover

    HTB-200-C236 Embedded System 3.3 Opening Top Cover Before the internal components can be installed, the top cover must be opened. To open the top cover, please follow the steps below: Step 1: Remove the top cover retention screws. The top cover is secured to the chassis with 3 retention screws.

  • Page 27: Hdd Installation

    HTB-200-C236 Embedded System 3.4 HDD Installation The HTB-200-C236 has one 2.5" HDD bay inside the bottom of the system. To install an HDD, follow the steps below. Step 1: Turn over the system. Locate the HDD access panel. Loosen the four retention screws and remove the panel.

  • Page 28: Figure 3-4: Inserting The Hdd

    HTB-200-C236 Embedded System Figure 3-4: Inserting the HDD Step 4: Insert the HDD bracket in the chassis. Slide the HDD bracket to connect the HDD to the SATA connector. Secure the HDD bracket by installing the two retention screws previously removed.

  • Page 29: Pcie Mini Card Installation (Msata)

    HTB-200-C236 Embedded System 3.5 PCIe Mini Card Installation (mSATA) The HTB-200-C236 has one full-size/half-size PCIe Mini slot on the motherboard. To install a full-size module, follow the instructions below. Step 1: Remove the top cover from the HTB-200-C236. See Section 0.

  • Page 30: Figure 3-8: Inserting The Full-Size Pcie Mini Card Into The Slot At An Angle

    HTB-200-C236 Embedded System Step 4: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 3-8). Figure 3-8: Inserting the Full-size PCIe Mini Card into the Slot at an Angle...

  • Page 31: Half-Size Pcie Mini Card Installation

    HTB-200-C236 Embedded System 3.5.1 Half-size PCIe Mini Card Installation The PCIe Mini slot (MPCIE1) also allows installation of a half-size PCIe Mini card. To install a half-size PCIe Mini card, please follow the steps below. Step 1: Remove the retention screw as shown in Figure 3-7.

  • Page 32: Figure 3-11: Installing The Standoff

    HTB-200-C236 Embedded System Figure 3-11: Installing the Standoff Step 4: Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the slot at an angle of about 20º (Figure 3-12). Figure 3-12: Inserting the Half-size PCIe Mini Card into the Slot at an Angle...

  • Page 33: Pcie Mini Card Slot Pinouts - Full/Half Size (Msata1)

    HTB-200-C236 Embedded System Figure 3-13: Securing the Half-size PCIe Mini Card 3.5.1 PCIe Mini Card Slot Pinouts – Full/Half Size (MSATA1) The MSATA1 slot supports USB 2.0 and mSATA signal for installing mSATA modules. PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# +3.3V...

  • Page 34: Expansion Card Installation

    Table 3-1: PCIe Mini Card Slot – Full Size (MSATA1) Pinouts 3.6 Expansion Card Installation The HTB-200-C236 supports one PCIe 3.0 x16 slot and one PCIe 3.0 x4 slot. To install an expansion card, follow the steps below. Step 1: Remove the top cover.

  • Page 35: Figure 3-14: Blank Bracket Screw And Card Holder Screw

    HTB-200-C236 Embedded System Figure 3-14: Blank Bracket Screw and Card Holder Screw Step 5: Align an expansion card to a PCIe slot. Press down gently, but firmly, to seat the expansion card correctly in the slot. Step 6: Install the bracket screw to secure the expansion card to the system chassis.

  • Page 36: System Configuration

    The system configuration should be performed before peripheral device installation. 3.7.1 Clear CMOS If the HTB-200-C236 fails to boot due to improper BIOS settings, the clear CMOS button clears the CMOS data and resets the system BIOS information. To do this, remove the system top cover first (see Section 0).

  • Page 37: Pcie X4 Channel Mode Setup

    HTB-200-C236 Embedded System 3.7.2 PCIe x4 Channel Mode Setup The user can select to use either one PCIe x4 slot or four PCIe x1 slots on the backplane via the BIOS switch. Refer to below table for the BIOS switch settings.

  • Page 38: Pcie X16 Channel Mode Setup

    HTB-200-C236 Embedded System 3.7.3 PCIe x16 Channel Mode Setup The HTB-200-C236 supports one PCIe x16 interface on the backplane. The PCIe x16 channel mode setup is made through the BIOS menu in “Chipset  System Agent (SA) Configuration  PEG Port Configuration”. Use the PEG Link Width Configuration BIOS option to configure the PCIe x16 channel mode.

  • Page 39: Power-On Procedure

    HTB-200-C236 Embedded System 3.9 Power-On Procedure 3.9.1 Installation Checklist WARNING: Make sure a power supply with the correct input voltage is being fed into the system. Incorrect voltages applied to the system may cause damage to the internal electronic components and may also cause injury to the user.

  • Page 40: Figure 3-18: Power Button And Power Led

    Connect the power cord to the power adapter. Connect the other end of the power cord to a power source. Step 2: Connect the power adapter to the power connector of the HTB-200-C236. Step 3: Short-press the power button until the power LED on the front panel lights on in blue (Figure 3-18).

  • Page 41: Available Drivers

    HTB-200-C236 Embedded System 3.10 Available Drivers All the drivers for the HTB-200-C236 are available on IEI Resource Download Center (https://download.ieiworld.com). Type HTB-200-C236 and press Enter to find all the relevant software, utilities, and documentation. Figure 3-19: IEI Resource Download Center 3.10.1 Driver Download...
  • Page 42 HTB-200-C236 Embedded System Step 3: Click the driver file name on the page and you will be prompted with the following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download ( ...

  • Page 43: Bios

    HTB-200-C236 Embedded System Chapter BIOS Page 31...

  • Page 44: Introduction

    HTB-200-C236 Embedded System 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 45: Getting Help

    HTB-200-C236 Embedded System Function Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option Page...

  • Page 46: Bios Menu 1: Main

    HTB-200-C236 Embedded System Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information Set the Date. Use Tab to BIOS Vendor American Megatrends switch between Date Core Version 5.12 elements.

  • Page 47: Advanced

    HTB-200-C236 Embedded System System Date [xx/xx/xx]  Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx]  Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 48: Cpu Configuration

    HTB-200-C236 Embedded System 4.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications or enable the Intel Virtualization Technology. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can...
  • Page 49 HTB-200-C236 Embedded System Active Processor Cores [All]  Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package.  Enable all cores in the processor package. EFAULT  Enable one core in the processor package.

  • Page 50: Pch-Fw Configuration

    HTB-200-C236 Embedded System 4.3.2 PCH-FW Configuration The PCH-FW Configuration menu (BIOS Menu 4) allows Intel® Active Management Technology (AMT) options to be configured. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced AMT BIOS Features [Enabled] When disabled AMT BIOS...

  • Page 51: Acpi Settings

    HTB-200-C236 Embedded System 4.3.3 ACPI Settings The ACPI Settings menu (BIOS Menu 5) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system...

  • Page 52: F81866 Super Io Configuration

    HTB-200-C236 Embedded System 4.3.4 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the serial ports and parallel port. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.

  • Page 53: Serial Port 1 Configuration

    HTB-200-C236 Embedded System 4.3.4.1 Serial Port 1 Configuration Use the Serial Port 1 Configuration menu (BIOS Menu 7) to configure the serial port 1. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Serial Port 1 Configuration Enable or Disable Serial...

  • Page 54: Iwdd H/W Monitor

    HTB-200-C236 Embedded System  IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt IRQ=3, 4, 11 address is IRQ3, 4, 11  IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt IRQ=3, 4, 11 address is IRQ3, 4, 11 Transfer Mode [RS232] ...

  • Page 55: Smart Fan Mode Configuration

    HTB-200-C236 Embedded System CPU Temperature System Temperature System Temperature (backplane) Fan Speed:  CPU Fan Speed System Fan Speed Voltages:  CPU_CORE +12V +DDR +5VSB +3.3V +3.3VSB 4.3.5.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 9) to configure fan speed settings.
  • Page 56 HTB-200-C236 Embedded System CPU_FAN1/SYS_FAN1/SYS_FAN2 Smart Fan Control [Auto Mode]  Use the CPU_FAN1/SYS_FAN1/SYS_FAN2 Smart Fan Control option to configure the CPU fan.  Manual Mode The fan spins at the speed set in the Manual Mode option  Auto Mode...
  • Page 57 HTB-200-C236 Embedded System Auto mode fan off temperature [30]  WARNING: Setting this value too high may cause the fan to speed up only when the CPU is at a very high temperature and therefore cause the system to be damaged.

  • Page 58: Rtc Wake Settings

    HTB-200-C236 Embedded System 4.3.6 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 10) enables the system to wake at the specified time. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced Wake system with Fixed Time...

  • Page 59: Serial Port Console Redirection

    HTB-200-C236 Embedded System Wake up minute Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 4.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 11) allows the console redirection options to be configured.
  • Page 60 HTB-200-C236 Embedded System Terminal Type [ANSI]  Use the Terminal Type option to specify the remote terminal type.  VT100 The target terminal type is VT100  VT100+ The target terminal type is VT100+  VT-UTF8 The target terminal type is VT-UTF8 ...

  • Page 61: Legacy Console Redirection Settings

    HTB-200-C236 Embedded System  The parity bit is 0 if the number of ones in the data bits is odd.  Mark The parity bit is always 1. This option does not provide error detection.  Space The parity bit is always 0. This option does not provide error detection.

  • Page 62: Nvme Configuration

    HTB-200-C236 Embedded System Legacy Serial Redirection Port [COM1]  Use the Legacy Serial Redirection Port option to select a COM port to display redirection of legacy OS and legacy OPROM messages. Configuration options are listed below. COM1 Default  COM2(Pci Bus0,Dev22,Func3) ...

  • Page 63: Usb Configuration

    HTB-200-C236 Embedded System 4.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 14) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 64: Iei Feature

    HTB-200-C236 Embedded System 4.3.10 iEi Feature Use the iEi Feature menu (BIOS Menu 15) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function...

  • Page 65: Chipset

    HTB-200-C236 Embedded System 4.4 Chipset Use the Chipset menu (BIOS Menu 16) to access the PCH IO and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 66: System Agent (Sa) Configuration

    HTB-200-C236 Embedded System 4.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 17) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset System Agent (SA) Configuration...

  • Page 67: Memory Configuration

    HTB-200-C236 Embedded System 4.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 18) to view memory information. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset Memory Configuration CHA_DIMM0# Populated & Enabled Size 16384 MB (DDR4) --------------------- Number of Ranks : Select Screen...

  • Page 68: Graphics Configuration

    HTB-200-C236 Embedded System 4.4.1.2 Graphics Configuration Use the Graphics Configuration (BIOS Menu 19) menu to configure the video device connected to the system. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset Graphics Configuration Keep IGFX enabled based on the setup options.
  • Page 69 HTB-200-C236 Embedded System  Default  DVMT Total Gfx Mem [MAX]  Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available: 128M  256M ...

  • Page 70: Peg Port Configuration

    HTB-200-C236 Embedded System 4.4.1.3 PEG Port Configuration Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset PEG Port Configuration Select PEG Port Link Width as x16 or 2x8 or 1x8 PEG Link Width Configuration [1 x16] & 2x4 configuration.
  • Page 71 HTB-200-C236 Embedded System Max Link Speed [Auto]  Use the Max Link Speed option to select the maximum link speed of the PCI Express slot. The following options are available: Default Auto  Gen1  Gen2  Gen3  Detect Non-Compliance Device [Disabled] ...

  • Page 72: Pch-Io Configuration

    HTB-200-C236 Embedded System 4.4.2 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 21) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset PCH-IO Configuration Select AC power state when power is re-applied...

  • Page 73: Table 4-2: Bios Options And Configured Usb Ports

    HTB-200-C236 Embedded System USB Power SW1 [+5V DUAL]  Use the USB Power SW1 BIOS option to configure whether to provide power to the corresponding USB connectors (Table 4-2) when the system is in S3/S4 sleep state. This option is valid only when the above Power Saving Function (ERP) BIOS option is disabled.

  • Page 74: Pci Express Configuration

    HTB-200-C236 Embedded System 4.4.2.1 PCI Express Configuration The PCI Express port number in the PCI Express Configuration menu varies by BIOS (BIOS1 or BIOS2). For detailed information, please refer to Section 3.7.2. For BIOS1: Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.

  • Page 75: Bios Menu 24: Pci Express Port 1/2/3/4

    HTB-200-C236 Embedded System 4.4.2.1.1 PCI Express Port 1/2/3/4 Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Advanced PCIe Speed [Auto] Select PCI Express port Detect Non-Compliance Device [Disabled] speed. --------------------- : Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 76: Sata Configuration

    HTB-200-C236 Embedded System 4.4.2.2 SATA Configuration Use the SATA Configuration menu (BIOS Menu 25) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Chipset SATA And RST Configuration Enable or disable SATA Device.

  • Page 77: Hd Audio Configuration

    HTB-200-C236 Embedded System Hot Plug [Disabled]  Use the Hot Plug option to designate the correspondent SATA port as hot-pluggable.  Disabled Disables the hot-pluggable function of the SATA port. EFAULT  Enabled Designates the SATA port as hot-pluggable. 4.4.2.3 HD Audio Configuration Use the HD Audio Configuration menu (BIOS Menu 26) to configure the PCH Azalia settings.

  • Page 78: Security

    HTB-200-C236 Embedded System  Auto The onboard High Definition Audio controller EFAULT automatically detected and enabled 4.5 Security Use the Security menu (BIOS Menu 27) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc.

  • Page 79: Boot

    HTB-200-C236 Embedded System 4.6 Boot Use the Boot menu (BIOS Menu 28) to configure system boot options. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Select the keyboard...
  • Page 80 HTB-200-C236 Embedded System Quiet Boot [Enabled]  Use the Quiet Boot BIOS option to select the screen display when the system boots.  Disabled Normal POST messages displayed  Enabled OEM Logo displayed instead of POST messages EFAULT Launch PXE OpROM [Disabled] ...

  • Page 81: Save & Exit

    HTB-200-C236 Embedded System 4.7 Save & Exit Use the Safe & Exit menu (BIOS Menu 29) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2019 American Megatrends, Inc. Main...

  • Page 82: Troubleshooting And Maintenance

    HTB-200-C236 Embedded System Chapter Troubleshooting and Maintenance Page 70...

  • Page 83: Htb-200-C236 System Maintenance Overview

    Failure to follow these instructions may lead to personal injury and system damage. To preserve the working integrity of the HTB-200-C236 embedded system, the system must be properly maintained. If embedded system components need replacement, the proper maintenance procedures must be followed to ensure the system can continue to operate normally.

  • Page 84: The System Doesn't Boot Up

    If all troubleshooting measures have been taken and the system still fails to start, contact the IEI reseller or vendor you purchased the HTB-200-C236 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com.

  • Page 85: Component Replacement Procedure

    If any other components fail or need replacement, contact the IEI reseller or vendor you purchased the HTB-200-C236 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@ieiworld.com.

  • Page 86: Figure 5-1: So-Dimm Location

    HTB-200-C236 Embedded System Figure 5-1: SO-DIMM Location Step 3: Push both handles outward. The memory module is ejected by a mechanism in the socket. Remove the SO-DIMM. Step 4: Align the new SO-DIMM with the socket. The SO-DIMM must be oriented in such a way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket (Figure 5-2).

  • Page 87: Flash Descriptor Security Override

    HTB-200-C236 Embedded System 5.4 Flash Descriptor Security Override The flash descriptor security override jumper (J_FLASH1) allows to enable or disable the ME firmware update. Refer to Table 5-1 and Figure 5-3 for the jumper location and settings. Setting Description Short 1-2...

  • Page 88: Interface Connectors

    HTB-200-C236 Embedded System Chapter Interface Connectors Page 76...

  • Page 89: Peripheral Interface Connectors

    HTB-200-C236 Embedded System 6.1 Peripheral Interface Connectors The connector locations of the system motherboard (HPCIE-C236) are shown in Table 6-1. Figure 6-1: Main Board Layout Diagrams Page 77...

  • Page 90: Internal Peripheral Connectors

    HTB-200-C236 Embedded System 6.2 Internal Peripheral Connectors Internal peripheral connectors on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the connectors on the motherboard. Connector Type Label...

  • Page 91: Connectors

    HTB-200-C236 Embedded System Connector Type Label USB 2.0 connectors 8-pin header USB1, USB2 Table 6-1: Peripheral Interface Connectors 6.3 External Interface Panel Connectors The table below lists the connectors on the external I/O panel. Connector Type Label Ethernet ports RJ-45 LAN1, LAN2 USB 3.0 ports...

  • Page 92: A Regulatory Compliance

    HTB-200-C236 Embedded System Appendix Regulatory Compliance Page 80...
  • Page 93 HTB-200-C236 Embedded System DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive 2014/30/EU  Low-Voltage Directive 2014/35/EU  RoHS II Directive 2015/863/EU  If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 94 HTB-200-C236 Embedded System Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ...
  • Page 95 HTB-200-C236 Embedded System Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 1999/5/CE. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
  • Page 96 HTB-200-C236 Embedded System FCC WARNING This equipment complies with part 18 of the FCC Rules. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 97: B Safety Precautions

    HTB-200-C236 Embedded System Appendix Safety Precautions Page 85...

  • Page 98: Safety Precautions

    Make sure the power is turned off and the power cord is disconnected  whenever the HTB-200-C236 is being installed, moved or modified. To prevent the risk of electric shock, make sure power cord is  unplugged from wall socket. To fully disengage the power to the unit, please disconnect the power cord from the AC outlet.

  • Page 99: Anti-Static Precautions

    HTB-200-C236 Embedded System Electric shocks can occur if the HTB-200-C236 chassis is opened when it is  running. To avoid risk of electric shock, this device must only be connected to a supply mains with protective earth. Do not drop or insert any objects into the ventilation openings of the ...

  • Page 100: Product Disposal

    HTB-200-C236 Embedded System Only handle the edges of the electrical component: When handling the  electrical component, hold the electrical component by its edges. B.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery.

  • Page 101: Classification

    Always make sure your hands are dry when unplugging the power cable. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the HTB-200-C236, please read the details below. To clean the HTB-200-C236, ...

  • Page 102: Cleaning Tools

    In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the HTB-200-C236. Cloth– Although paper towels or tissues can be used, a soft, clean piece of ...

  • Page 103: Cbios Menu Options

    HTB-200-C236 Embedded System Appendix BIOS Menu Options Page 91...

  • Page 104: Bios Configuration Options

    HTB-200-C236 Embedded System C.1 BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 4. System Date [xx/xx/xx] ......................35 System Time [xx:xx:xx] ....................... 35 ® Intel (VMX) Virtualization Technology [Disabled] ............36 Active Processor Cores [All] ....................37 Hyper-threading [Enabled] ....................
  • Page 105 HTB-200-C236 Embedded System Internal Graphics [Enabled] ....................56 DVMT Pre-Allocated [32M] ....................56 DVMT Total Gfx Mem [MAX] ....................57 Primary IGFX Boot Display [IDP] ..................57 PEG Link Width Configuration [1x16] ................58 Enable Root Port [Enabled] ....................58 Max Link Speed [Auto] ......................

  • Page 106: D Watchdog Timer

    HTB-200-C236 Embedded System Appendix Watchdog Timer Page 94...
  • Page 107 HTB-200-C236 Embedded System NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 108 HTB-200-C236 Embedded System NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 109: E Error Beep Code

    HTB-200-C236 Embedded System Appendix Error Beep Code Page 97...

  • Page 110: Pei Beep Codes

    HTB-200-C236 Embedded System E.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed...

  • Page 111: F Hazardous Materials Disclosure

    HTB-200-C236 Embedded System Appendix Hazardous Materials Disclosure Page 99...

  • Page 112: Rohs Ii Directive (2015/863/Eu)

    HTB-200-C236 Embedded System F.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 113: China Rohs

    HTB-200-C236 Embedded System F.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 101...

Table of Contents
