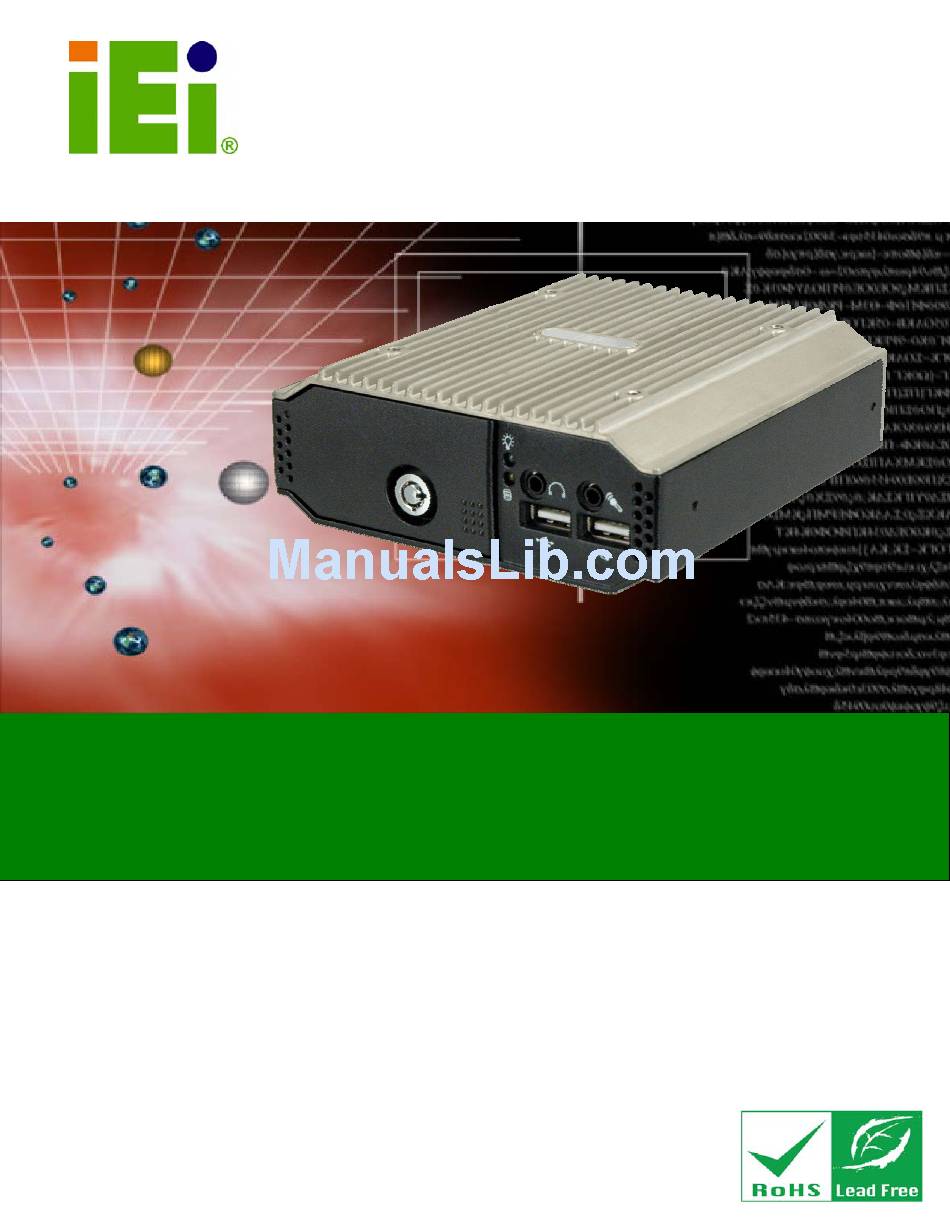

uIBX-200-VX800 Embedded System
IEI Technology Corp.
MODEL:
uIBX-200-VX800
Ultra Compact Embedded System with CompactFlash® Slot
VGA, Gigabit Ethernet, Four USB, 802.11b/g Wireless,
Line out, Mic, Two RS-232, RoHS Compliant
Rev. 1.04 – 17 August 2010
User Manual
Page i

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology uIBX-200-VX800

Summary of Contents for IEI Technology uIBX-200-VX800

  • Page 1 Embedded System IEI Technology Corp. MODEL: uIBX-200-VX800 Ultra Compact Embedded System with CompactFlash® Slot VGA, Gigabit Ethernet, Four USB, 802.11b/g Wireless, Line out, Mic, Two RS-232, RoHS Compliant User Manual Page i Rev. 1.04 – 17 August 2010...
  • Page 2 Embedded System Revision Date Version Changes 17 August 2010 1.04 Added jumper location diagrams 15 April, 2010 1.03 Added watchdog timer appendix 14 January 2010 1.02 Changed details of CF cards with embedded OS 10 September 2008 1.01 Added BIOS chapter 27 August 2009 1.00...
  • Page 3 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    Embedded System Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 B ........................2 ENEFITS 1.3 F ........................3 EATURES 1.4 T ..................3 ECHNICAL PECIFICATIONS 1.5 C ......................4 ERTIFICATIONS 2 DETAILED SPECIFICATIONS .................. 5 2.1 F...
  • Page 5 Embedded System 4.4.5 USB Connector ....................25 4.4.6 VGA Connector ....................26 4.5 M ..................28 OUNTING THE YSTEM 4.5.1 Mounting Option 1................... 28 4.5.2 Mounting Option 2................... 30 4.6 S ........................ 32 OFTWARE 5 BIOS ..........................34 5.1 I ......................
  • Page 6 Embedded System 5.7.1 Northbridge VIA® VX800 Configuration ............65 5.7.2 Southbridge VIA® VX800 Configuration ............66 5.8 E ......................... 66 A ONE KEY RECOVERY ..................... 68 A.1 O ..............69 ECOVERY NTRODUCTION A.1.1 System Requirement..................69 A.1.2 Supported Operating System ................69 A.2 S...
  • Page 7 Embedded System HS C 2002/95/EC W ........101 OMPLIANT NDER ITHOUT ERCURY Page vii...
  • Page 8 Figure 4–20: 100 mm to 75 mm Adapter ..................31 Figure 4–21: Attachment Installation..................31 Figure 4–22: System Attachment Screws ..................32 Figure 4–23: Slide Panel PC onto uIBX-200-VX800..............32 Figure A-1: Recovery Tool Setup Menu ..................73 Figure A-2: Command Mode......................73 Figure A-3: Partition Creation Commands.................74...
  • Page 9 Embedded System Figure A-4: System Configuration for Windows ...............76 Figure A-5: Build-up Recovery Partition ..................76 Figure A-6: Press any key to continue ..................77 Figure A-7: Press F3 to Boot into Recovery Mode..............77 Figure A-8: Recovery Tool Menu ....................78 Figure A-9: About Symantec Ghost Window ................78 Figure A-10: Symantec Ghost Path ....................79...
  • Page 10 Embedded System List of Tables Table 1-1: Technical Specifications....................4 Table 3-1: Package List Contents ....................12 Table 3-2: Optional Items......................13 Table 4-1: Jumpers ........................16 Table 4-2: AT/ATX Power Select Jumper Settings ..............17 Table 4-3: CompactFlash® Master/Slave Selection ..............17 Table 4-4: Clear BIOS Jumper Settings..................18 Table 4-5: LAN Pinouts ........................23...

  • Page 11: Introduction

    Embedded System Chapter Introduction Page 1...

  • Page 12: Overview

    1.1 Overview Figure 1-1: uIBX-200-VX800 The uIBX-200-VX800 embedded system is an ultra small PC for installation between a computer screen and its stand. It is powered by the VIA® Eden™ ULV 1 GHz/500 MHz processor, uses the VIA® VX800 system chip and has 1.0 GB or 512 MB of DDR2 memory.

  • Page 13: Features

    One Gigabit Ethernet port Four USB 2.0 ports Two RS-232 serial ports RoHS compliant 1.4 Technical Specifications The uIBX-200-VX800 technical specifications are listed in Table 1-1. Specifications System VIA® Eden™ ULV 1 GHz/500 MHz processor 1.0 GB or 512 MB of DDR2 memory...

  • Page 14: Certifications

    120 mm x 44.4 mm x 125 mm Physical Dimensions Table 1-1: Technical Specifications 1.5 Certifications All uIBX-200-VX800 series models comply with the following international standards: RoHS CE, FCC Class A, CCC, UL For a more detailed description of these standards, please refer to Appendix A.

  • Page 15: Detailed Specifications

    Embedded System Chapter Detailed Specifications Page 5...

  • Page 16: Front Panel

    2 x USB connectors 1 x Microphone input 1 x Line output 2.2 Rear Connector Panel All external peripheral interface connectors are located on the bottom panel of the uIBX-200-VX800 . The peripheral interface connectors are shown in Figure 2-2. Page 6...

  • Page 17: Figure 2-2: Uibx-200-Vx800 Peripheral Connectors

    Embedded System Figure 2-2: uIBX-200-VX800 Peripheral Connectors Connectors and buttons on the rear panel include the following. 1 x 5 V DC power input 1 x Power switch 1 x VGA output 2 x RS-232 ports 2 x USB ports...

  • Page 18: Dimensions

    Embedded System 2.3 Dimensions The physical dimensions are shown and listed below: Width: 120 mm Height: 44.4 mm Depth: 125 mm Figure 2-3: Physical Dimensions (millimeters) Page 8...

  • Page 19: Maintenance

    Embedded System 2.4 Maintenance Don't open the uIBX-200-VX800 (except the CompactFlash® door), there are no user-serviceable parts inside. Page 9...

  • Page 20: Unpacking

    Embedded System Chapter Unpacking Page 10...

  • Page 21: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the uIBX-200-VX800. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the uIBX-200-VX800 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 22: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the uIBX-200-VX800 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.

  • Page 23: Optional Items

    Embedded System 3.4 Optional Items Quantity Item Image uIBXCF-VX800-XPE Windows XP Embedded OS on 1 GB CompactFlash® card uIBXCF-VX800-CE060 Windows CE 6.0 Embedded OS on 128 MB CompactFlash® card VX-75100B 75 mm to 100 mm VESA adapter uIBXVK-200B Double side VESA mount kit for...

  • Page 24: Installation

    Embedded System Chapter Installation Page 14...

  • Page 25: Installation Precautions

    Electric shock and personal injury might occur if the rear panel of the uIBX-200-VX800 is opened while the power cord is still connected to an electrical outlet.

  • Page 26: Jumper Settings

    Embedded System 4.2 Jumper Settings NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To...

  • Page 27: Compactflash® Master/Slave Selection

    Embedded System Setting Description Open Use AT power Closed Use ATX power (Default) Table 4-2: AT/ATX Power Select Jumper Settings Figure 4-1: AT/ATX Power Select Jumper Location 4.2.2 CompactFlash® Master/Slave Selection Jumper Label: CF_MS_SEL1 3-pin header Jumper Type: See Table 4-3 Jumper Settings: Set the CompactFlash®...

  • Page 28: Clear Cmos Jumper

    Embedded System Figure 4-2: CompactFlash® Master/Slave Switch Location 4.2.3 Clear CMOS Jumper Jumper Label: J_CMOS1 3-pin header Jumper Type: See Table 4-4 Jumper Settings: To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more, then move back to the default position.

  • Page 29: Compactflash® Card Installation

    Embedded System Figure 4-3: Clear BIOS Jumper Location 4.3 CompactFlash® Card Installation The uIBX-200-VX800 supports a single CompactFlash® card. To install, follow the steps below. Unlock and open the cover door. Step 1: Slide the CompactFlash® card into the slot.

  • Page 30: External Peripheral Interface Connectors

    Embedded System 4.4 External Peripheral Interface Connectors The uIBX-200-VX800 has the following connectors. Detailed descriptions of the connectors can be found in the subsections below. Power input Ethernet RS-232 Antenna connector Line out Figure 4-5: Peripheral Connectors (Rear) Page 20...

  • Page 31: Power Input

    Embedded System Figure 4–6: Peripheral Connectors (Front) 4.4.1 Power Input The power terminal block connects to the included 5 V DC power adapter. CN Label: Power Input Terminal block CN Type: See Figure 4-5 CN Location: See Figure 4-7...

  • Page 32: Lan Connectors

    Locate the RJ-45 connectors. The locations of the USB connectors are shown Step 1: in Chapter 4. Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the uIBX-200-VX800. See Figure 4-9. Page 22...

  • Page 33: Figure 4-9: Lan Connection

    Embedded System Figure 4-9: LAN Connection Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the on-board RJ-45 connector. Step 0: Description Description TXA+ TXC- TXA- TXB- TXB+ TXD+ TXC+...

  • Page 34: Serial Port Connector

    Embedded System STATUS DESCRIPTION STATUS DESCRIPTION GREEN Activity YELLOW Linked Table 4-6: RJ-45 Ethernet Connector LEDs 4.4.4 Serial Port Connector CN Label: RS-232 DB-9 connectors CN Type: See Figure 4-5 CN Location: See Table 4-7 and Figure 4-12 CN Pinouts: RS-232 serial port devices can be attached to the DB-9 ports on the rear panel.

  • Page 35: Usb Connector

    Embedded System Secure the connector. Secure the serial device connector to the external Step 3: interface by tightening the two retention screws on either side of the connector. Step 0: Description Description Table 4-7: Serial Port Pinouts Figure 4-12: Serial Port Pinouts 4.4.5 USB Connector...

  • Page 36: Vga Connector

    Embedded System Figure 4-13: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the on-board connector. Step 0: Description Description USBV3L 5 V USBP4N USBP5P USBP4P USBP5N USBV3L 5 V Table 4-8: USB Port Pinouts 4.4.6 VGA Connector...

  • Page 37: Figure 4-14: Vga Connector

    Embedded System Locate the female DB-15 connector. The location of the female DB-15 Step 1: connector is shown in Chapter 3. Align the VGA connector. Align the male DB-15 connector on the VGA screen Step 2: cable with the female DB-15 connector on the external peripheral interface.

  • Page 38: Mounting The System

    DDCCLK Table 4-9: VGA Connector Pinouts 4.5 Mounting the System To install the uIBX-200-VX800 on the VESA mounting slot, between the monitor stand and the monitor, follow the instructions below. 4.5.1 Mounting Option 1 If the mounting pattern on the panel PC is VESA 100 mm then the adapter must Step 1: be attached.

  • Page 39: Figure 4-17: Attachment Installation

    Embedded System Fasten the attachment onto the VESA mounting on the back of the monitor. Step 2: Figure 4–17: Attachment Installation Slide the uIBX-200-VX800 into the attachment and fasten the four screws Step 3: indicated. Figure 4–18: System Attachment Screws...

  • Page 40: Mounting Option 2

    Figure 4–19: Mounting Screws Three common methods of mounting the uIBX-200-VX800 are listed in the subsections below. 4.5.2 Mounting Option 2 To install the uIBX-200-VX800 on the VESA mounting slot, between the monitor stand and the monitor, follow the instructions below. Page 30...

  • Page 41: Figure 4-20: 100 Mm To 75 Mm Adapter

    Embedded System If the mounting pattern on the panel PC is VESA 100 mm then the adapter must Step 1: be attached. Figure 4–20: 100 mm to 75 mm Adapter Fasten the attachment onto the VESA mounting on the back of the monitor.

  • Page 42: Software

    Embedded System Attach the uIBX-200-VX800 to the stand. Step 3: Figure 4–22: System Attachment Screws Attach the panel PC to the uIBX-200-VX800. Fasten the screws on the Step 4: attachment to the uIBX-200-VX800. Step 0: Figure 4–23: Slide Panel PC onto uIBX-200-VX800 4.6 Software...
  • Page 43 Embedded System operating system, adding remote management tools or additional software and drivers, refer to the utility CD. The uIBX-200-VX800 includes the following software: Optional Board Support Package (BSP) for customers to customize their own OS image. Attached Software Development Kit (SDK) for embedded Visual C++ to program Windows CE application.

  • Page 44: Bios

    Embedded System Chapter BIOS Page 34...

  • Page 45: Introduction

    Embedded System 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 46: Getting Help

    Embedded System Function F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 47: Main

    Embedded System 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset...

  • Page 48: Advanced

    Embedded System The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.

  • Page 49: Cpu Configuration

    Embedded System BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Settings Configure CPU ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ WARNING: Setting wrong values in below sections may cause system to malfunction > CPU Configuration > IDE Configuration Select Screen > SuperIO Configuration ↑...

  • Page 50: Ide Configuration

    Embedded System Frequency: Lists the CPU processing speed FSB Speed: Lists the FSB speed Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size 5.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.

  • Page 51: Sata Channel

    Embedded System 5.3.2.1 SATA Channel Sets the IDE configuration of the SATA channels. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Primary IDE Master Select the type of device ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ connected to the system Device :Not Detected...
  • Page 52 Embedded System This option specifies an ATAPI Removable Media ARMD Device. These include, but are not limited to: LS-120 LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.
  • Page 53 Embedded System BIOS auto detects the PIO mode. Use this value if the IDE disk Auto EFAULT drive support cannot be determined. PIO mode 0 selected with a maximum transfer rate of 3.3 MB/s PIO mode 1 selected with a maximum transfer rate of 5.2 MB/s PIO mode 2 selected with a maximum transfer rate of 8.3 MB/s...
  • Page 54 Embedded System Ultra DMA mode 1 selected with a maximum data transfer UDMA1 rate of 25 MB/s Ultra DMA mode 2 selected with a maximum data transfer UDMA2 rate of 33.3 MB/s Ultra DMA mode 3 selected with a maximum data transfer...

  • Page 55: Super Io Configuration

    Embedded System 5.3.3 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the FDD controllers, parallel ports and serial ports. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset...

  • Page 56: Power Configuration

    Embedded System Serial Port2 Address [2F8] Sets the port address of serial port 2. Disabled EFAULT Serial Port2 IRQ [3 Sets the interrupt request for serial port 2. EFAULT 5.3.4 Power Configuration The Power Configuration menu (BIOS Menu 7) configures the power options.

  • Page 57: Acpi Configuration

    Embedded System EFAULT 5.3.4.1 ACPI Configuration Use the ACPI Configuration menu (BIOS Menu 8) to select the ACPI state when the system is suspended. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit General ACPI Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 58: Apm Configuration

    Embedded System 5.3.4.2 APM Configuration The APM Configuration menu (BIOS Menu 9) allows the advanced power management options to be configured. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Restore on AC Power Loss [Power Off] Power Button Mode...
  • Page 59 Embedded System When the power button is pressed the system goes into Suspend suspend mode Resume on Ring [Disabled] Use the Resume on Ring BIOS option to enable activity on the RI (ring in) modem line to rouse the system from a suspend or standby state. That is, the system will be roused by an incoming call on a modem.

  • Page 60: Remote Access Configuration

    Embedded System 5.3.5 Remote Access Configuration Use the Remote Access Configuration menu (BIOS Menu 10) to configure remote access parameters. The Remote Access Configuration is an AMIBIOS feature and allows a remote host running a terminal program to display and configure the BIOS settings.
  • Page 61 Embedded System Serial Port Number [COM1] Use the Serial Port Number option allows to select the serial port used for remote access. System is remotely accessed through COM1 COM1 EFAULT System is remotely accessed through COM2 COM2 NOTE: Make sure the selected COM port is enabled through the Super I/O configuration menu.

  • Page 62: Usb Configuration

    Embedded System The console is not redirected after POST Disabled Redirection is active during POST and during Boot Boot Loader Loader Redirection is always active (Some OSes may not Always EFAULT work if set to Always) Terminal Type [ANSI] Use the Terminal Type BIOS option to specify the remote terminal type.
  • Page 63 Embedded System Disabled EFAULT Enabled USB 2.0 Ports Enabled [Enabled] The USB ports will only operate in the legacy USB 1.1 mode unless this setting is enabled. Disabled EFAULT Enabled Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support.

  • Page 64: Usb Mass Storage Device Configuration

    Embedded System 5.3.6.1 USB Mass Storage Device Configuration Use the USB Mass Storage Device Configuration menu (BIOS Menu 12) to configure USB mass storage class devices. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit USB Mass Storage Device Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 65: Pci/Pnp

    Embedded System Emulation Type [Auto] Use the Emulation Type BIOS option to specify the type of emulation BIOS has to provide for the USB device. BIOS auto-detects the current USB. Auto EFAULT The USB device will be emulated as a floppy drive.
  • Page 66 Embedded System BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced PCI/PnP Settings Available: Specified ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ IRQ is available to be used by PCI/PnP WARNING: Setting wrong values in below sections devices. may cause system to malfunction...
  • Page 67 Embedded System IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. The specified DMA is available to be used by Available...

  • Page 68: Boot

    Embedded System 5.5 Boot Use the Boot menu (BIOS Menu 14) to configure system boot options. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Boot Settings Configure settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ during system boot. > Boot Settings Configuration > Boot Device Priority >...
  • Page 69 Embedded System Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Some POST procedures are skipped to decrease Enabled EFAULT the system boot time Quiet Boot [Disabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.

  • Page 70: Boot Device Priority

    Embedded System Allows the Number Lock on the keyboard to be enabled EFAULT automatically when the computer system boots up. This allows the immediate use of the 10-key numeric keypad located on the right side of the keyboard. To confirm this, the Number Lock LED light on the keyboard is lit.

  • Page 71: Hard Disk Drives

    Embedded System 5.5.3 Hard Disk Drives Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. Only installed hard drives are shown. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hard Disk Drives Specifies the boot ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 72: Cd/Dvd Drives

    Embedded System 5.5.5 CD/DVD Drives Use the CD/DVD Drives menu to specify the boot sequence of the available CD/DVD drives. When the menu is opened, the CD drives and DVD drives connected to the system are listed as shown below:...

  • Page 73: Security

    Embedded System 5.6 Security Use the Security menu (BIOS Menu 20) to set system and user passwords. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Security Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Supervisor Password :Not Installed User Password :Not Installed Change Supervisor Password...
  • Page 74 Embedded System WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Chipset Settings Options for VIA® VX800 ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 75: Northbridge Via® Vx800 Configuration

    Embedded System 5.7.1 Northbridge VIA® VX800 Configuration Use the Northbridge VIA® VX800 Configuration configures the system chipset. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Northbridge VIA® VX800 Configuration Options ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ VGA Frame Buffer Size [128MB] Select Screen ↑...

  • Page 76: Southbridge Via® Vx800 Configuration

    Embedded System 5.7.2 Southbridge VIA® VX800 Configuration The Southbridge VIA® VX800 Configuration configures the system chipset. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Southbridge Configuration Options ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Disabled High Definition Audio [Auto] Auto Select Screen ↑ ↓...
  • Page 77 Embedded System BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Exit Options Exit system setup after ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ saving the changes. Save Changes and Exit F10 key can be used for Discard Changes and Exit this operation Discard Changes...

  • Page 78: A One Key Recovery

    Embedded System Appendix One Key Recovery Page 68...

  • Page 79: One Key Recovery Introduction

    Embedded System A.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. The one key recovery provides quick and easy shortcuts for creating a backup and reverting to that backup or for reverting to the factory default settings.
  • Page 80 Embedded System Windows 7 Windows CE 5.0 Windows CE 6.0 Windows XP Embedded Linux Fedora Core 12 (Constantine) Fedora Core 11 (Leonidas) Fedora Core 10 (Cambridge) Fedora Core 8 (Werewolf) Fedora Core 7 (Moonshine) RedHat RHEL-5.4 RedHat 9 (Ghirke) Ubuntu 8.10 (Intrepid)

  • Page 81: Setup Procedure For Windows

    Embedded System NOTE: The recovery CD can only be used with IEI products. The software will fail to run and a warning message will appear when used on non-IEI hardware. A.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore system, a few setup procedures are required.

  • Page 82: Hardware And Bios Setup

    A.2.1 Hardware and BIOS Setup Make sure the system is powered off and unplugged. Step 1: Install a hard driver or SSD in the uIBX-200-VX800. An unformatted and Step 2: unpartitioned disk is recommended. Connect an optical disk drive to the uIBX-200-VX800 and insert the recovery Step 3: Turn on the system.

  • Page 83: Figure A-1: Recovery Tool Setup Menu

    Embedded System Figure A-1: Recovery Tool Setup Menu Press <5> then <Enter>. Step 5: Figure A-2: Command Mode The command prompt window appears. Type the following commands (marked Step 6: in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 84: Figure A-3: Partition Creation Commands

    Embedded System Figure A-3: Partition Creation Commands Page 74...

  • Page 85: Install Operating System, Drivers And Applications

    Embedded System NOTE: Use the following commands to check if the partitions were created successfully. Press any key to exit the recovery tool and automatically reboot the system. Step 7: Please continue to the following procedure: Build-up Recovery Partition.S t e p 0 : A.2.3 Install Operating System, Drivers and Applications...

  • Page 86: Figure A-4: System Configuration For Windows

    Embedded System Start the system. Step 2: Press any key to boot from the recovery CD. It will take a while to launch the Step 3: recovery tool. Please be patient. When the recovery tool setup menu appears, press <2> then <Enter>.

  • Page 87: Create Factory Default Image

    Embedded System After completing the system configuration, press any key in the following window Step 6: to reboot the system. Figure A-6: Press any key to continue Eject the recovery CD. Step 7: S t e p 0 : A.2.5 Create Factory Default Image...

  • Page 88: Figure A-8: Recovery Tool Menu

    Embedded System Figure A-8: Recovery Tool Menu The About Symantec Ghost window appears. Click OK button to continue. Step 3: Figure A-9: About Symantec Ghost Window Use mouse to navigate to the option shown below (Figure A-10). Step 4:...

  • Page 89: Figure A-10: Symantec Ghost Path

    Embedded System Figure A-10: Symantec Ghost Path Select the local source drive as shown in Figure A-11. Then click OK. Step 5: Figure A-11: Select a Local Source Drive Select a source partition from basic drive as shown in Figure A-12. Then click...

  • Page 90: Figure A-13: File Name To Copy Image To

    Embedded System Select 1.2: [Recovery] NTFS drive and enter a file name called Step 7: (Figure A-13). Click Save. The factory default image will then be saved in the selected recovery drive and named IEI.GHO. WARNING: The file name of the factory default image must be iei.GHO.

  • Page 91: Figure A-14: Compress Image

    Embedded System When the Compress Image screen in Figure A-14 prompts, click High to make Step 8: the image file smaller. Figure A-14: Compress Image The Proceed with partition image creation window appears, click Yes to Step 9: continue.

  • Page 92: Setup Procedure For Linux

    Embedded System When the image creation completes, a screen prompts as shown in Figure A-17. Step 11: Click Continue and close the Ghost window to exit the program. Figure A-17: Image Creation Complete The recovery tool main menu window is shown as below. Press any key to Step 12: reboot the system.

  • Page 93: Figure A-19: Partitions For Linux

    Embedded System NOTE: If the Linux OS is not installed with GRUB (v0.97 or earlier) and Ext3, the Symantec Ghost may not function properly. While installing Linux OS, please create two partitions: Partition 1: / Partition 2: SWAP NOTE: Please reserve enough space for partition 3 for saving recovery images.

  • Page 94: Figure A-20: System Configuration For Linux

    Embedded System system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit Build-up recovery partition. Press any key to boot from the recovery CD. It will Step 4: take a while to launch the recovery tool. Please be patient. When the recovery tool setup menu appears, type <3>...

  • Page 95: Recovery Tool Functions

    Embedded System The recovery tool menu appears. (Figure A-22) Step 7: Figure A-22: Recovery Tool Menu Create a factory default image. Follow described in Section Step 8: Step 2 Step 12 A.2.5 to create a factory default image. S t e p 0 : A.4 Recovery Tool Functions...

  • Page 96: Figure A-23: Recovery Tool Main Menu

    Embedded System Figure A-23: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section A.2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 97: Factory Restore

    Embedded System A.4.1 Factory Restore To restore the factory default image, please follow the steps below. Type <1> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the factory default. A Step 2: factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 98: Backup System

    Embedded System A.4.2 Backup System To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to backup the system. A Step 2: backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 99: Restore Your Last Backup

    Embedded System A.4.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Type <3> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the last backup Step 2: image (iei_user.GHO).

  • Page 100: Manual

    Embedded System A.4.4 Manual To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears. Use the Ghost program to backup or Step 2: recover the system manually.

  • Page 101: Other Information

    Embedded System A.5 Other Information A.5.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 102 Embedded System When the following window appears, press <S> to select “Specify Additional Step 5: Device”. In the following window, select a SATA controller mode used in the system. Then Step 6: press <Enter>. The user can now start using the SATA HDD.

  • Page 103: System Memory Requirement

    Embedded System After pressing <Enter>, the system will get into the recovery tool setup menu. Step 7: Continue to follow the setup procedure from in Section 72 to finish the Step 4 whole setup process. S t e p 0 : A.5.2 System Memory Requirement...

  • Page 104: B Safety Precautions

    Embedded System Appendix Safety Precautions Page 94...

  • Page 105: Safety Precautions

    Embedded System B.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the uIBX-200-VX800. Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions...

  • Page 106: Anti-Static Precautions

    B.2 Maintenance and Cleaning Precautions When maintaining or cleaning the uIBX-200-VX800, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the uIBX-200-VX800, please read the details below. Page 96...

  • Page 107: Cleaning Tools

    In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the uIBX-200-VX800.  C loth – Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the uIBX-200-VX800.

  • Page 108: C Watchdog Timer

    Embedded System Appendix Watchdog Timer Page 98...
  • Page 109 Embedded System NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
