Operation and installation manual
Page 87 of 96
(PVI-STRINGCOMB (-S, -MC, -S-MC) - Rev:1.0)

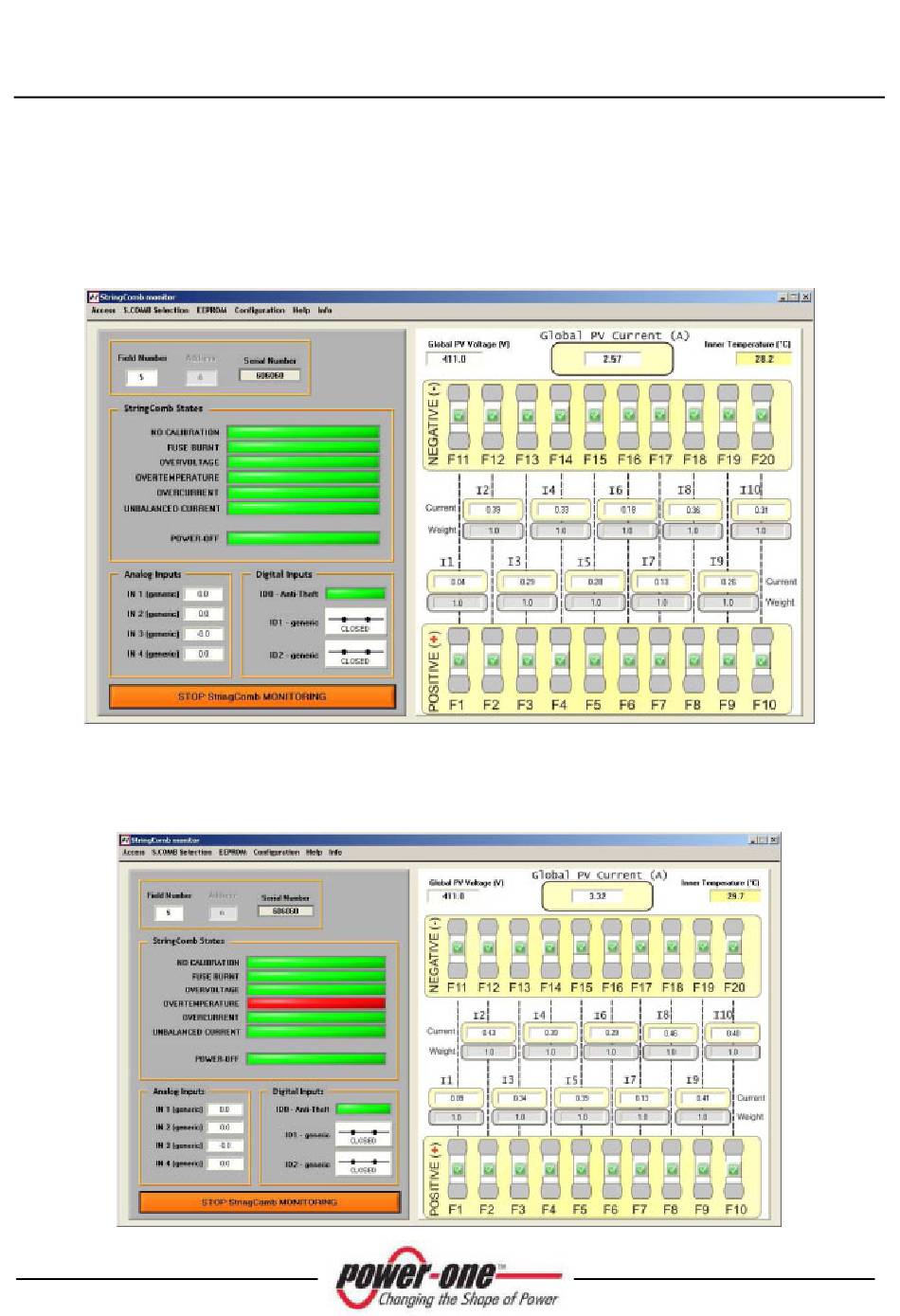

12.9 MONITORING EXAMPLES
Any picture in this section is given as a reference only and might show some not
realistic situations. Our purpose being exclusively to demonstrate and bring
examples of the monitoring software operation.
The first screen shows normal operation: Following is the indication of an
"overtemperature" fault (Ref. §12.8.1)
