Earth Connection; Check On Inverter Side Connections; Connection Of The Positive Output Wire (+); Figure 9-17: Cable Gland For Ground Connection - Power One AURORA PVI-STRINGCOMB Installation And Instruction Manual

Operation and installation manual
(PVI-STRINGCOMB (-S, -MC, -S-MC) - Rev:1.0)
9.3.10
Ground the earth terminal, passing the wire through the gland
indicated as "E".

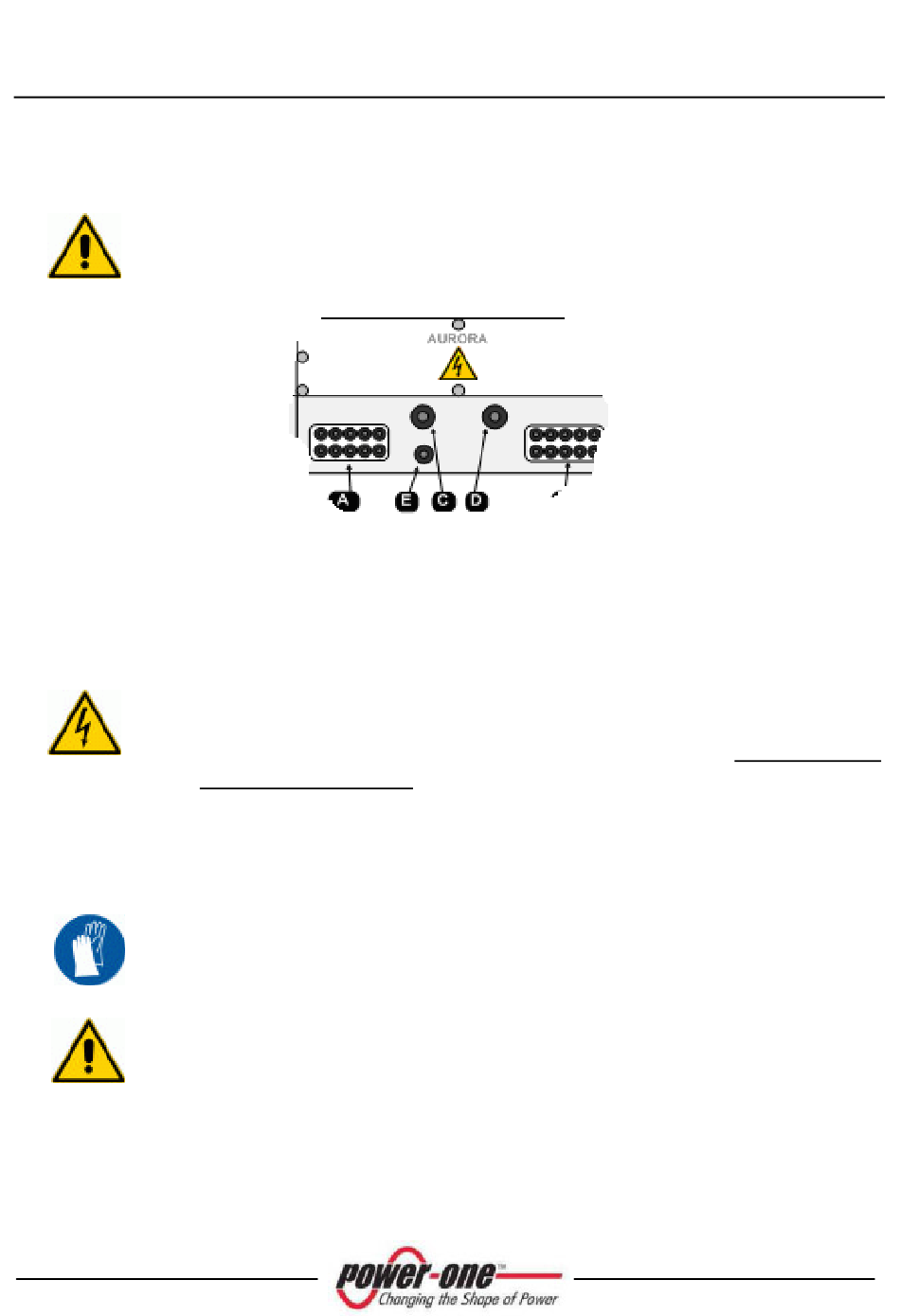

Figure 9-17: Cable gland for ground connection

9.3.11
Before continuing with the next steps, check that:
(A) The switches/isolators of the DC voltage are OFF (in the
(B) The wires coming from the inverter are not live! (check directly
9.3.11.1
After checking the above, pass the wire (positive pole) coming from
the inverter through the cable gland "C" of the Figure 4-3 and connect
it, with the screw and nut, to the "+" bar.
The copper bar for the positive pole features a threaded bore and
M10 bolt with washers (supplied) (Ref. §Appendix A: Technical Data).
Check that the lug is tight.

Earth connection

Check on inverter side connections

inverter)
with a voltage meter)

Connection of the positive output wire (+)
