Configuration Digital Inputs Settings; Figure 12-7: Auxiliary Inputs Monitoring - Power One AURORA PVI-STRINGCOMB Installation And Instruction Manual

Operation and installation manual
(PVI-STRINGCOMB (-S, -MC, -S-MC) - Rev:1.0)

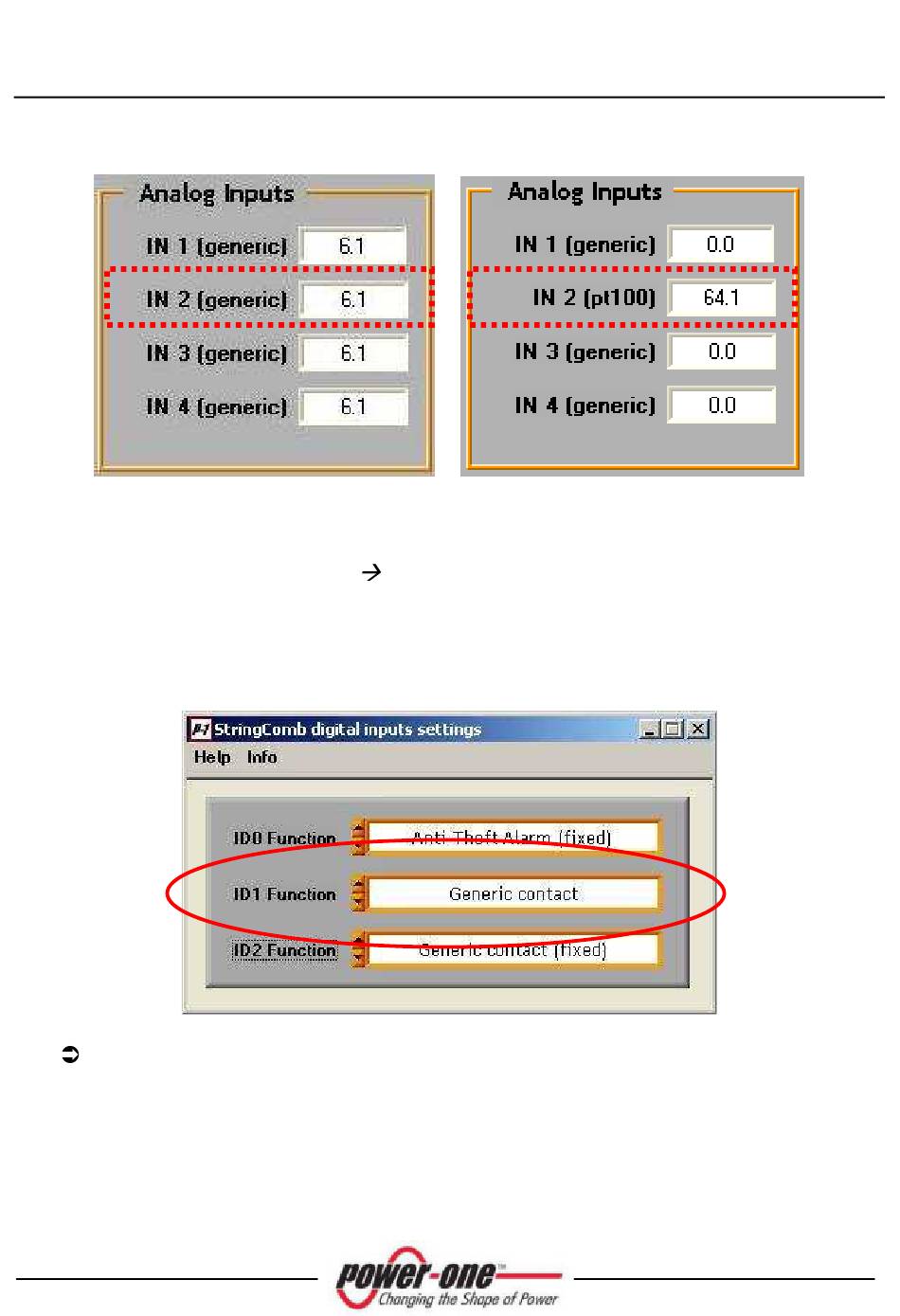

Figure 12-7 shows the difference in IN2 monitoring: before and after selection.
Figure 12-7: Auxiliary inputs monitoring (IN2 Generic, IN2 PT100)
12.8.4
This window allows user to view the association of digital inputs ID0, ID1 and ID2.
"ID1" input can be used as general contact or to check isolating switch status
(Figure 6-1), using the corresponding drop-down menu.
From the drop-down menu, select "Generic contact" or "DC isolation
switch state". A confirmation window of the software settings will appear.
Configuration Digital Inputs Settings
