6.2

Mechanical drawing

6.3

Embedded ST-LINK/V2-1

The ST-LINK/V2-1 programming and debugging tool is integrated in the STM32G0 Nucleo-32 board.
For detailed information about the debugging and programming features of ST-LINK/V2-1, refer to the ST-LINK/V2
in-circuit debugger/programmer for STM8 and STM32 user manual (UM1075) and Overview of ST-LINK
derivatives technical note (TN1235).
Features supported by the ST-LINK/V2-1:
• USB software re-enumeration
• Virtual COM port interface on USB
• Mass storage interface on USB
UM2591 - Rev 1

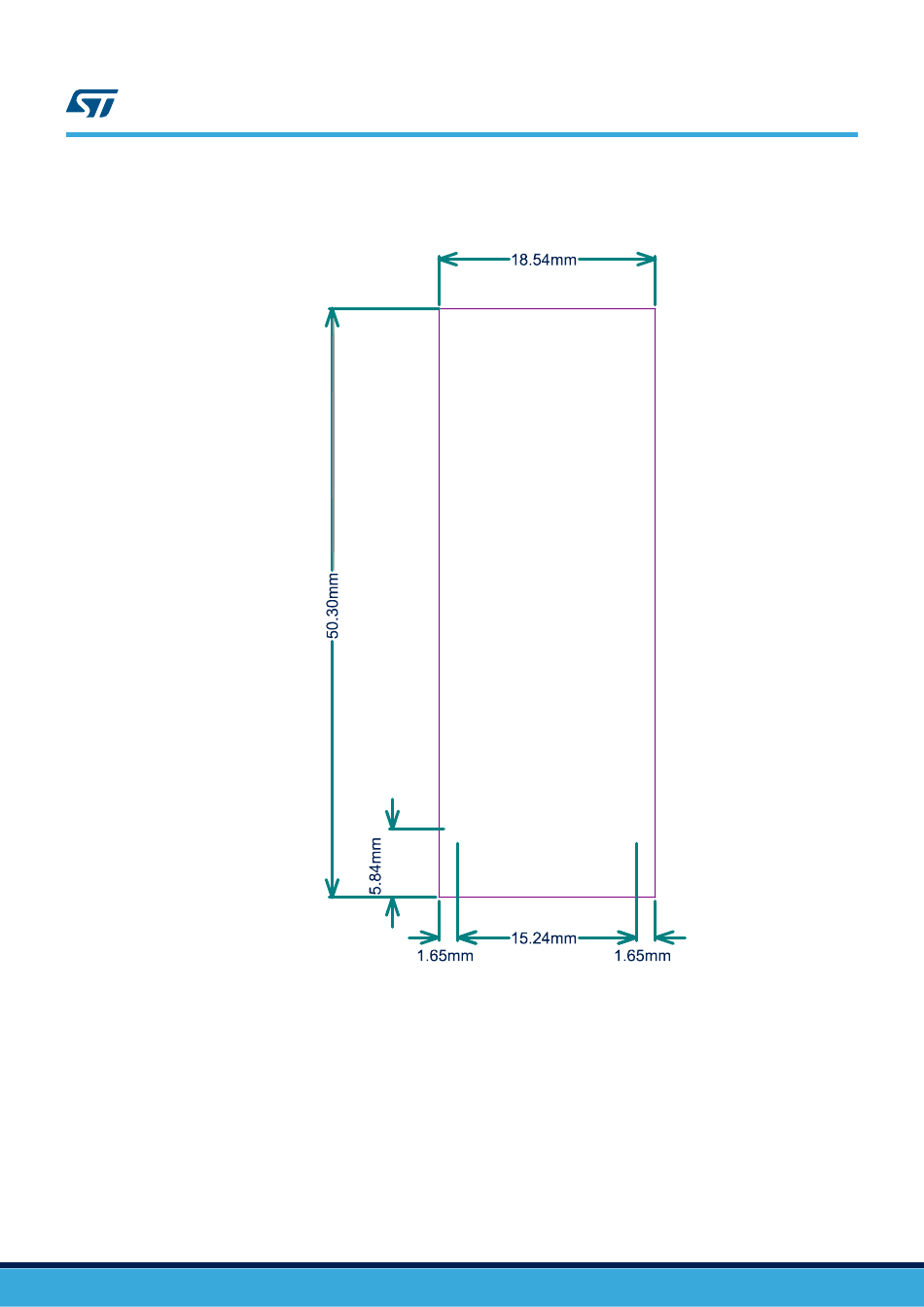

Figure 6. STM32G0 Nucleo-32 board mechanical drawing (in millimeter)
UM2591
Mechanical drawing
