Board connectors

Several connectors are implemented on the STM32G0 Nucleo-32 board.
7.1 ™
Arduino
™
The Arduino
Most shields designed for Arduino
The related pinout for Arduino™ connectors is shown in
UM2591 - Rev 1
Nano V3 connectors CN3 and CN4
connectors CN3 and CN4 are male connectors compatible with the Arduino
™
can fit with the STM32G0 Nucleo-32 board.

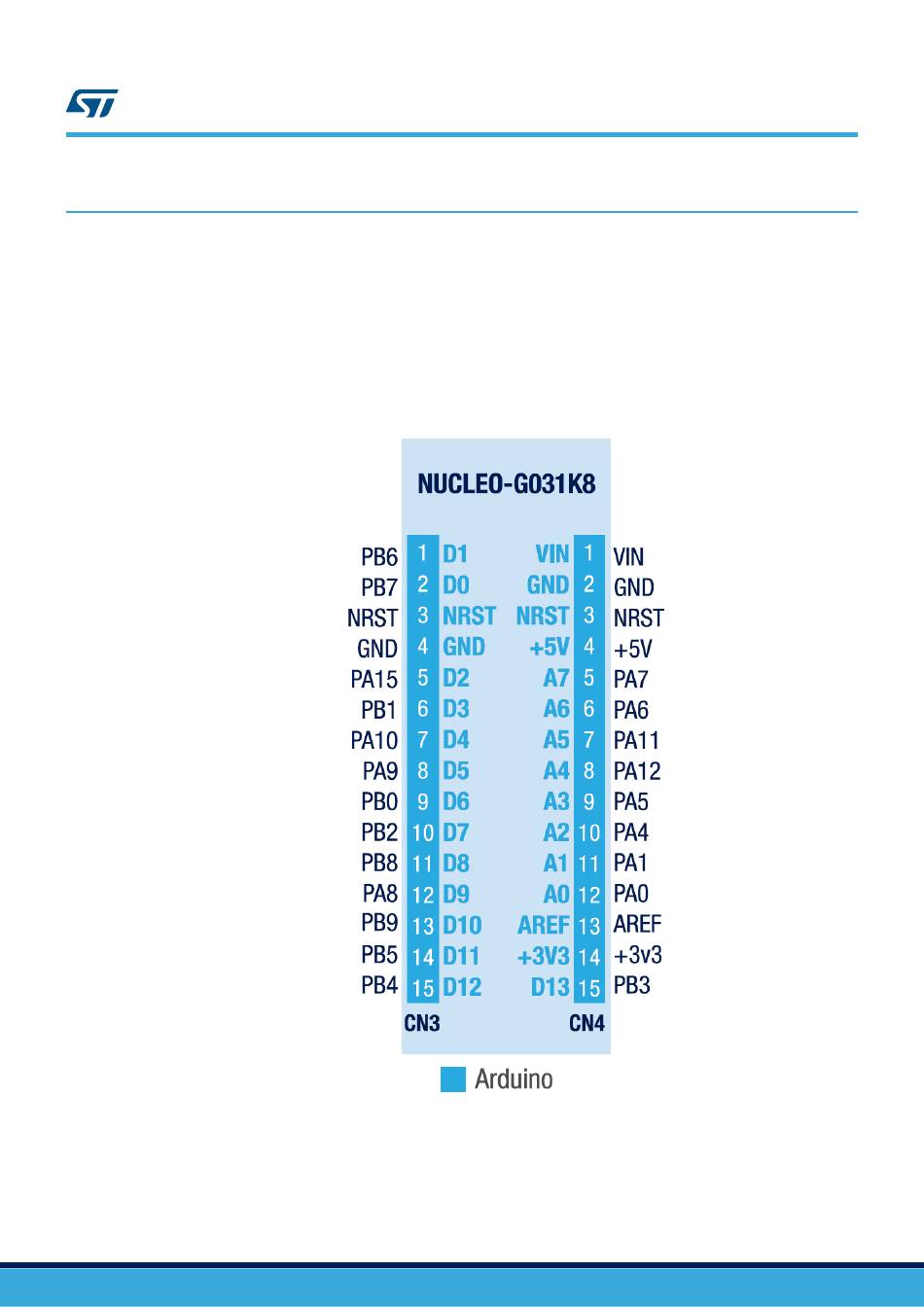

Figure 8.
Figure 8 and listed in
™
Arduino connectors pinout
UM2591
Board connectors
™
Nano V3 standard.
Table 9.
page 16/26
