Configuring 515 pumps

To configure a system that has one or more 515 pumps:
1. Check Enable for 515 (A), 515 (B), and/or 515 (C). They can function
either as contributors to solvent flow A or B, or as non-contributors.
2. Select the GPIB address (for the pump control module) in the "Associate
with an instrument" list.
Tip: You can change the pump names in the Module Name column.
3. Under Configure, click the ellipsis "..." (Browse) in the 515 (A) row.

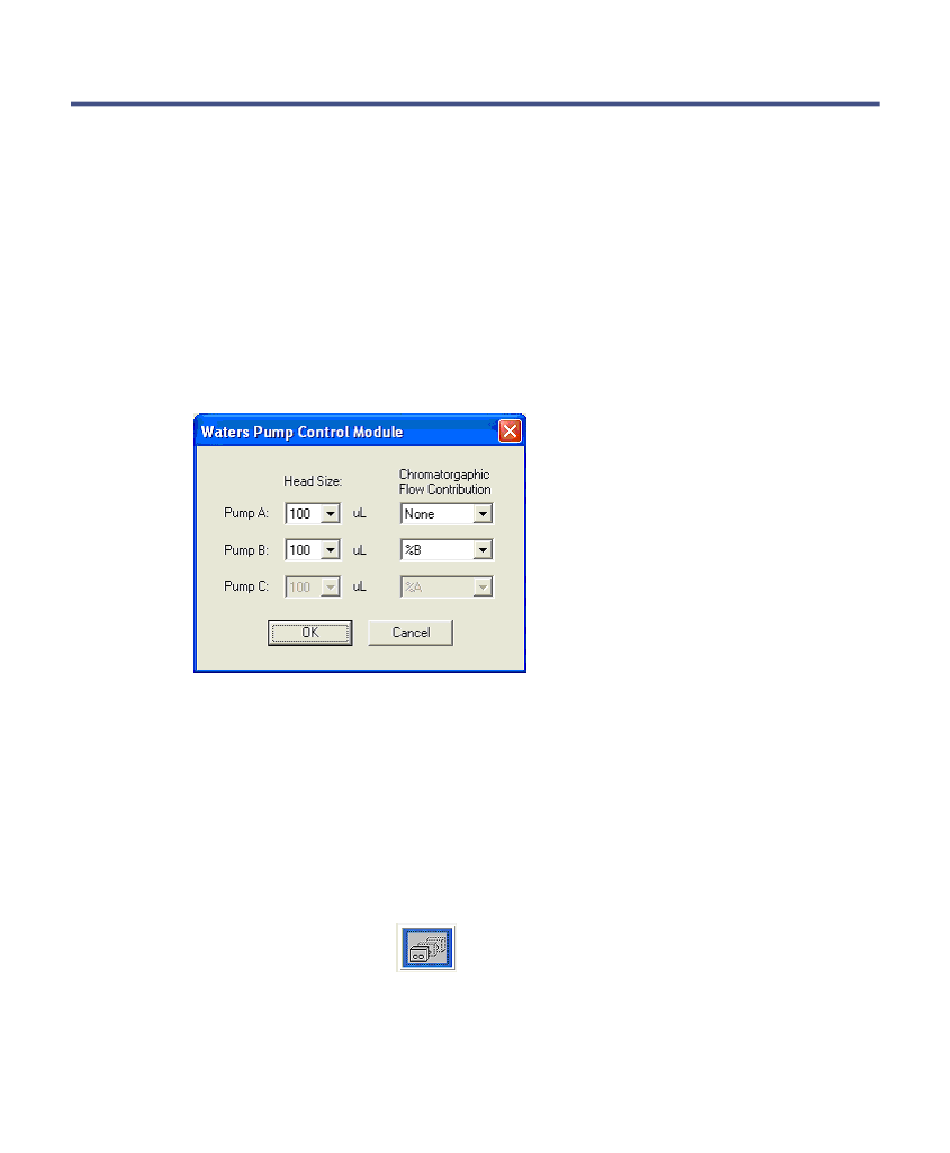

Selecting 515 pump heads and flow contributions
4. For each 515 pump, select the size of the installed pump head.
Values:
5. Select the chromatographic flow contribution for each 515 pump.
Values:
pump A), or %B (contributes to flow from BGM pump B).
6. Click OK.
7. Select LC > Reset Communications, and then click Close.
8. Click Inlet Method >
2-6 Preparing for operation
50, 100, or 225 µL. The default is 100 µL.
None (a makeup pump), %A (contributes to flow from BGM
(515 Pumps).
