3. Product description

As standard, the booster systems consist of two to four pumps
coupled in parallel and mounted on a common base frame with all
the necessary fittings and a control cabinet.

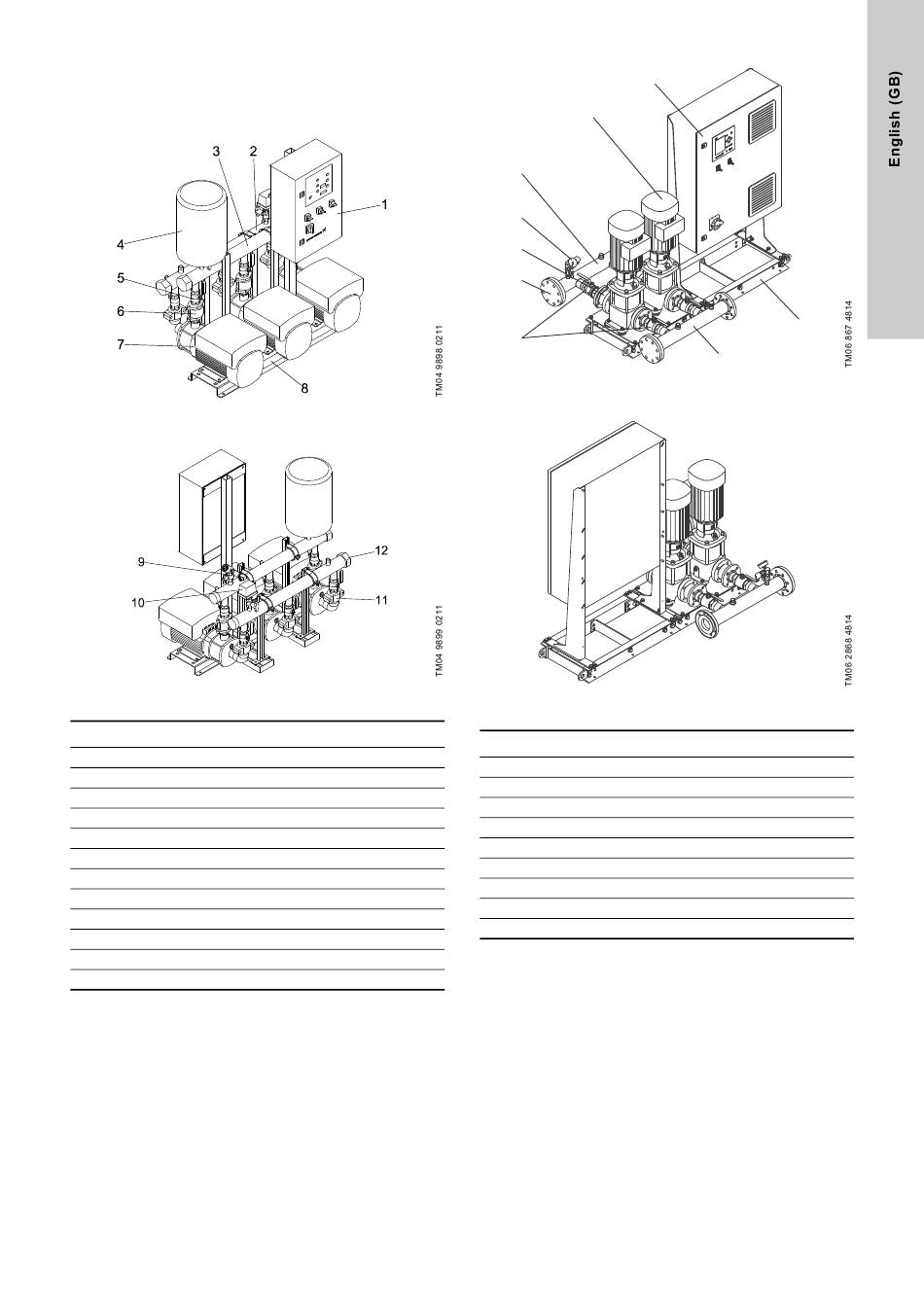

Fig. 1 Front view of Hydro Multi-B CM, CME booster system
Fig. 2 Back view of Hydro Multi-B CM, CME booster system
Pos. Description
1 Control cabinet
2 Suction manifold
3 Discharge manifold
4 Diaphragm tank
5 Isolating valve
6 Non-return valve
7 Pump
8 Base frame
9 Pressure transmitter and pressure gauge
10 Pressure switch or inlet pressure sensor
11 Flexible connection
12 Screw cap or blanking flange
3
9
6
12
5
Fig. 3 Front view of Hydro Multi-B CR booster system
Fig. 4 Back view of Hydro Multi-B CR booster system
Quantity
Pos. Description
1
1 Control cabinet
1
2 Suction manifold
1
3 Discharge manifold
1
5 Isolating valve
2 per pump
6 Non-return valve
1 per pump
7 Pump
2-4
8 Base frame
1
9 Pressure transmitter and pressure gauge
1
12 Screw cap or blanking flange
1
1 per pump
2
1
7
2
8
Quantity
1
1
1
2 per pump
1 per pump
2-4
1
1
2
3
